Description

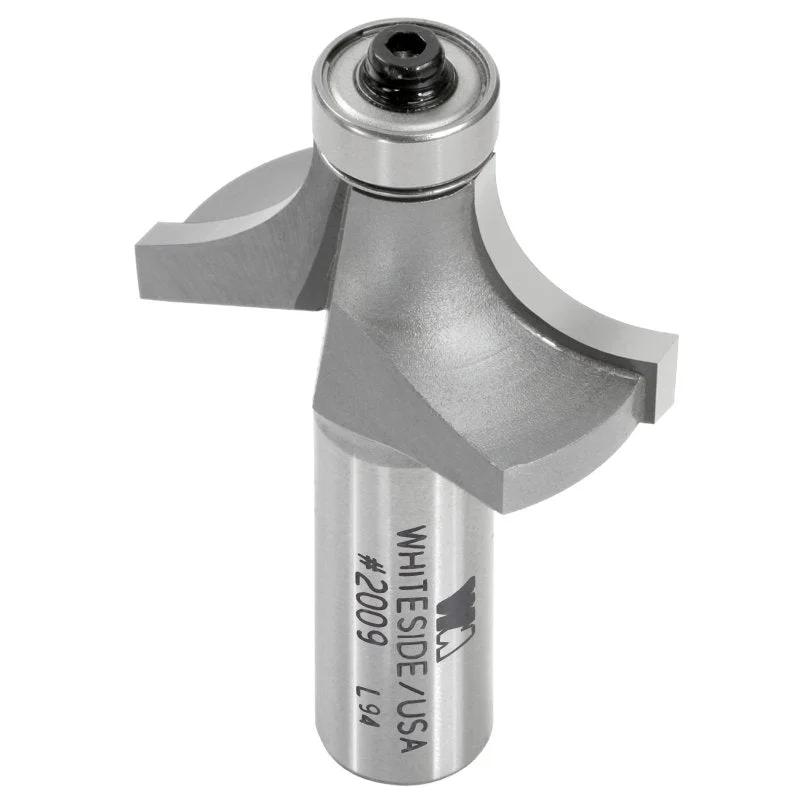

The Roundover Bit shapes the edge of a workpiece to the desired radius, providing asofter feel and appearance than that of an ordinary square edge. Typically the profileproduced by a round over bit corresponds to a quarter of a round circle whose radiusdefines the size of the bit. By altering the depth of cut, a round over bit can also createa fillet at the top of the cut. A round over bit is typically guided by a ball bearing.
| Radius | Shank | Lg. Dia. |
Carbide Height |
OAL | HW # | Whiteside # |
|---|---|---|---|---|---|---|
| 1/16″ | 1/4″ | 5/8″ | 1/2″ | 2″ | 108438 | 2000A |
| 3/32″ | 1/4″ | 11/16″ | 1/2″ | 2-1/16″ | 108439 | 2000B |
| 1/8″ | 1/4″ | 3/4″ | 1/2″ | 2-1/16″ | 108440 | 2000C |
| 5/32″ | 1/4″ | 13/16″ | 1/2″ | 2-1/16″ | 108441 | 2000D |
| 3/16″ | 1/4″ | 7/8″ | 1/2″ | 2-1/16″ | 108437 | 2000 |
| 1/4″ | 1/4″ | 1″ | 1/2″ | 2-1/16″ | 108442 | 2001 |
| 1/4″ | 1/2″ | 1″ | 1/2″ | 2-7/16″ | 108241 | 2006 |
| 5/16″ | 1/4″ | 1-1/8″ | 1/2″ | 2-1/8″ | 108443 | 2002 |
| 5/16″ | 1/2″ | 1-1/8″ | 1/2″ | 2-7/16″ | 108242 | 2007 |
| 3/8″ | 1/4″ | 1-1/4″ | 5/8″ | 2-3/16″ | 108444 | 2003 |
| 3/8″ | 1/2″ | 1-1/4″ | 5/8″ | 2-7/16″ | 108243 | 2008 |
| 1/2″ | 1/4″ | 1-1/2″ | 3/4″ | 2-7/16″ | 108445 | 2004 |
| 1/2″ | 1/2″ | 1-1/2″ | 3/4″ | 2-5/8″ | 106277 | 2009 |
| 5/8″ | 1/2″ | 1-3/4″ | 1″ | 2-7/8″ | 108244 | 2009A<14 |
| 3/4″ | 1/2″ | 2″ | 1″ | 2-15/16″ | 104298 | 2010♦<14 |
| 1″ | 1/2″ | 2-1/2″ | 1-5/16″ | 3-3/8″ | 108245 | 2012♦<14 |
| 1-1/4″ | 1/2″ | 3-1/4″ | 1-3/4″ | 4-1/16″ | 105254 | 2014♦♦<10 |
| 1-1/2″ | 1/2″ | 3-3/4″ | 1-7/8″ | 4-1/4″ | 108246 | 2016♦♦<10 |
| ♦USE IN A TABLE MOUNTED ROUTER. NOT FOR USE IN A HAND HELD ROUTER! | ||||||
| All bits up to 1″ radius use a 3/16″ ID x 1/2″ OD bearing and can be converted to a beading bit by changing to a 3/16″ ID by 3/8″ OD bearing. | ||||||
| ♦All bits over 1″ radius use a 1/4″ ID x 3/4″ OD bearing and can be converted to a beading bit by changing to a 1/4″ ID by 5/8″ OD bearing. | ||||||
| ♦This bit is recommended for making the seat to leg joint in the Charles Brock plans for building a sculptured rocker. | ||||||
| <14Warning! Max RPM – 14,000 | ||||||
| <10Warning! Max RPM – 10,000 | ||||||
| OAL = Over All Length |
About Whiteside
Whiteside Machine Company was founded in 1970 in Bill Whiteside’s basement where he supplied tooling to NC’s huge furniture making industry. Whiteside is still family-owned but has now grown to occupy a 40,000 square foot factory in Claremont, NC.
Whiteside offers a full range of router bits, all manufactured in the USA by skilled craftsmen. Their rigid quality control and precision manufacturing techniques have repeatedly resulted in highest ratings inFine Woodworkingmagazine tool reviews.
In the years that we’ve sold Whiteside router bits, we’ve experienced the company’s commitment to excellent quality and superb customer service. We think you’ll be pleased each time you use these fine tools in your shop.
We toured the Whiteside factory inEpisode 1ofThe Highland Woodworker.Watch thewhole episodeorjust the factory tour(about 6:30).
