Description

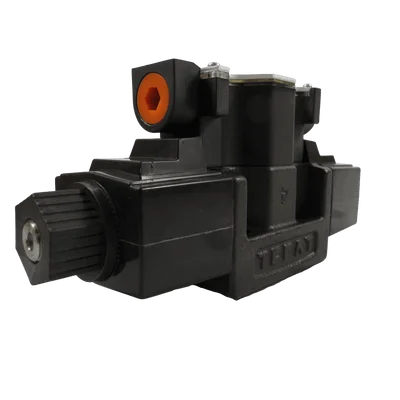

Yuken JIS Directional Valve Solenoid Operated (DSG-03-3C4-A120-50) is built to manage high-pressure hydraulic systems with precision and reliability. This valve features a solenoid-operated mechanism and a 120 V AC coil, providing stable control over fluid flow in industrial applications.
The Yuken JIS directional valve handles maximum pressures of up to 31.5 MPa (4570 PSI) and flow rates of up to 120 L/min. With its manual override pin and temperature rating from 5°F to 160°F, it’s ideal for a variety of challenging applications.
- Specifications and Dimensions
- US Customs Harmonized Code: 8481.20.0020
- Country of Origin: Japan
- Weight: 8.4 lbs
- Coil Voltage: 120 V AC (50/60 Hz)
- Maximum Pressure: 31.5 MPa (4570 PSI)
- Maximum Flow: 120 L/min (31.7 U.S. GPM)
- T Port Pressure Rating: 2320 PSI
- Temperature Range: 5°F to 160°F
- Overall Height: 105.3 mm
- Overall Length: 236 mm
- Overall Width: 70 mm
- Key Features and Benefits
- Handles high pressures up to 31.5 MPa for demanding hydraulic systems
- Open center spool type for efficient fluid regulation
- 120 V AC coil for reliable solenoid operation
- Manual override pin for additional control in critical operations
- Spring-centered spool for enhanced stability and durability
