Description

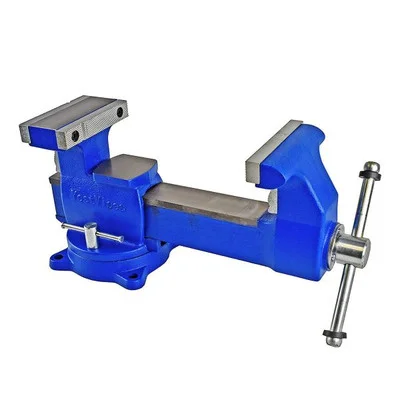

Yost Multi-Purpose Reversible Combination Bench and Pipe Vise is designed for demanding tasks in both bench and pipe work. Built from durable ductile iron, each model in this series offers a unique combination of a reversible jaw system, dual anvils, and an interlocking swivel base. The reversible jaw expands clamping capacity, making it ideal for securing a range of workpiece sizes.
Perfect for professional and industrial applications, each vise in this series has replaceable hardened steel jaws for enhanced grip. The Yost Multi-Purpose Reversible Vise series includes model-specific dimensions, capacities, and features, ensuring a secure hold and versatility in positioning with double lockdown bolts.
- Specifications and Dimensions
- 855-D2: Jaw Width: 5.5″, Jaw Opening: 6″ (Reversed: 9.75″), Throat Depth: 3.75″ (Reversed: 2.75″), Pipe Capacity: 1/8″ – 3″, Lower Anvil: 3.5″ x 3.7″, Upper Anvil: 5.2″ x 2.5″
- 865-D2: Jaw Width: 6.5″, Jaw Opening: 7″ (Reversed: 11″), Throat Depth: 4″ (Reversed: 3″), Pipe Capacity: 1/8″ – 3.5″, Lower Anvil: 3.4″ x 3.6″, Upper Anvil: 6.5″ x 2.2″
- 880-D2: Jaw Width: 8″, Jaw Opening: 8.5″ (Reversed: 12.5″), Throat Depth: 4.75″ (Reversed: 3.25″), Pipe Capacity: 1/8″ – 4.5″, Lower Anvil: 8″ x 3.25″, Upper Anvil: 4.1″ x 4″
- Material: Heavy Duty Ductile Iron (65,000 PSI)
- Base: 360-degree swivel with dual lockdowns
- Interlocking swivel base with 360° motion and double lockdown bolts
- Key Features and Benefits
- Heavy-duty ductile iron construction for maximum durability
- Reversible main jaw expands clamping capacity for larger workpieces
- Replaceable hardened steel serrated and pipe jaws for a secure hold
- Dual anvils provide smooth work surfaces for shaping and forming tasks
- Interlocking swivel base and double lockdowns ensure stability during work
- Engineered for professional woodworking, metalworking, and pipe applications
