Description

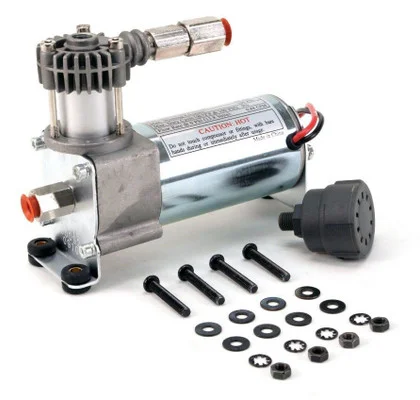

VIAIR 12V 120-PSI Air Compressor Kit (00092) features a dependable 12-volt permanent magnetic motor tailored for light duty applications, ideal for air requirements up to 1.0 gallon air tank capacity. This120 PSI lightweight air compressor is designed to operate with a maximum of 10 amps draw, delivering efficient airflow rates of 1.53 CFM at zero PSI and 0.43 CFM at 90 PSI.
The VIAIR compressor’s duty cycle is 9% at 100 PSI, with an operational limit of 5 minutes on and 55 minutes off per hour, ensuring reliability under intermittent use.
- Specifications and Dimensions
- Maximum Working Pressure: 120 PSI
- Maximum Air Flow Capacity: 1.53 CFM at 0 PSI; 0.43 CFM at 90 PSI
- Power Draw: 10 amps at 12 volts
- Dimensions: 7.6″L x 2.0″W x 4.6″H
- Weight: 2.45 pounds
- Operational Time: 5 minutes on/55 minutes off per hour
- Recommended Torque for 1/8″ Fittings: 10-11 ft.lbs.
- Key Features and Benefits
- Includes Omega Bracket Mounting Hardware and Vibration Isolators for stable installation
- Designed to run in well-ventilated areas; performs best with engine running
- Thread sealant recommended for installation, avoiding Teflon tape to ensure proper sealing
- Comes with a 1-year limited factory warranty to protect against defects in materials and workmanship
