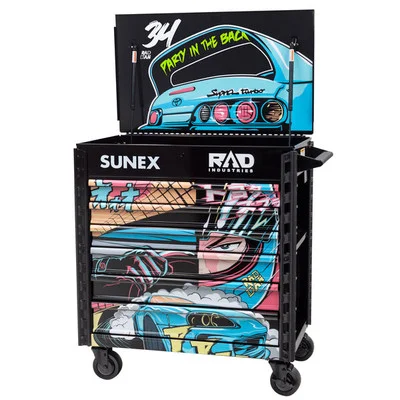

Sunex Tools Rad Dan Manga Black 6-Drawer Service Cart (8057XTBKRADDAN)

Description

Sunex Tools Rad Dan Manga Black 6-Drawer Service Cart (8057XTBKRADDAN) is a heavy-duty, mobile tool storage solution designed for professional automotive shops. With full-extension drawers, integrated tool holders, and robust 18-gauge steel construction, this service cart ensures secure storage, easy access, and efficient workflow. The manga-inspired graphics make it a visually striking addition to any workspace, while the gas-shock lid support and latching handles provide convenience and safety during use.

Key Features and Benefits:

• Heavy-Duty Steel Construction: Built with 1.2mm (18-gauge) steel to support up to 600 lbs without structural bowing.
• Manga-Inspired Aesthetic: Features high-energy MKIV Toyota Supra graphics with katakana text for a unique shop look.
• Gas-Shock Lid Support: Lid opens effortlessly and remains in place, allowing hands-free access to the top bin.
• Full-Extension Drawers: Ball-bearing slides enable full drawer access for easy tool retrieval.
• Integrated Tool Holders: 16 built-in slots (8 per side) keep pry bars and screwdrivers upright and organized.
• Full-Height Bumpers: Protective guards on all four corners absorb impacts and protect both the cart and nearby vehicles.
• Barrel Lock System: Single-key locking secures all compartments.
• Latching Handles: Prevents drawers from accidentally opening during movement.

Specifications:

• Weight Capacity: 600 lbs
• Overall Dimensions: 39.25Ó W x 21.5Ó D x 39.25Ó H
• Width (Without Handle): 34.5Ó
• Height (Lid Open): 60Ó
• Top Bin Depth: 5″
• Drawer 1, 2 & 3 Depth: 3″
• Drawer 4 & 5 Depth: 4″
• Bottom Drawer Depth: 5″
• Drawer Dimensions: 29.44″ L x 18.11″ F
• Caster Size: 6″ (4 Swivel; 2 Locking)
• Net Weight: 244 lbs
• Construction: 18-gauge (1.2mm) steel
• Included in Box:
  • 1 x Sunex 8057XTBKRADDAN Service Cart
  • 6 x Full Extension Drawers
  • 6 x EVA Foam Liners
  • 16 x Built-in pry bar/screwdriver holders (8 per side)
  • 1 x Side-Mount Handle
  • 1 x Set of Barrel Lock Keys

How to Use:

• Caster Installation: Secure the four 6-inch swivel casters to the base of the cart using the provided hardware. Ensure the two locking casters are positioned on your preferred side.
• Handle Attachment: Bolt the side-mount handle to either the left or right side of the cart frame based on your dominant hand or shop layout.
• Drawer Preparation: Place the provided EVA foam liners into the bottom of each drawer and the top bin to prevent tool movement and protect the finish.
• Tool Organization: Arrange hand tools in the 3-inch drawers, mid-sized tools in the 4-inch drawers, and heavy power tools in the 5-inch bottom drawer. Insert screwdrivers and pry bars into the 16 side-mounted holders.
• Opening the Lid: Unlock the barrel lock and lift the lid slightly; gas shocks will fully extend the lid to 60 inches.
• Secure Movement: Ensure all drawers are latched and the lid is closed before moving. Disengage the caster locks and use the side handle to steer the cart.
• Locking for Safety: Engage the two locking casters to prevent rolling while using the drawers or leaning on the top surface.

Benefits of Using Sunex Tools Rad Dan Manga Black 6-Drawer Service Cart (8057XTBKRADDAN):

• Increased Technician Efficiency: Brings the entire toolset directly to the vehicle, reducing unnecessary walking.
• Optimized Tool Access: Specialized drawer depths prevent tools from being buried, and side-mounted holders provide immediate access.
• Stable Work Surface: Heavy-duty 18-gauge steel ensures vibration-resistant support for diagnostic work.
• Easy Identification: Custom Rad Dan graphics make the cart easily recognizable in busy shops.

Features:

• Dual-Position Steel Side Handle: Ergonomic steering and maneuverability.
• Industrial Powder-Coated Finish: Resistant to chemicals and rust.
• Recessed Locking Mechanism: Prevents key breakage.
• Four-Corner Impact Bumpers: Protects vehicles from accidental impacts.
• High-Load 6-Inch Wheels: Navigate floor grates and debris easily.
• Non-Slip EVA Foam Liners: Included for all compartments.
• Dual Gas-Pressure Cylinders: Controlled lid movement.
• Reinforced Bottom Shelf: Ensures structural rigidity under full load.
