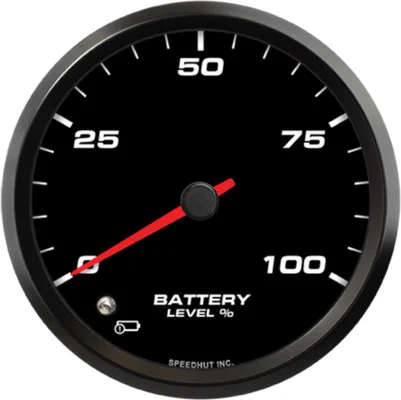

Speedhut 4″ EV Orion Battery Level Gauge w/ Warning (FOR4-SC1-EV)

Description

The Speedhut 4″ EV Orion Battery Level Gauge w/ Warning (FOR4-SC1-EV) is an indispensable instrument for any electric vehicle owner looking to maintain optimal control over their battery’s state of charge. This 4-inch (100mm) gauge is specifically engineered to provide accurate and real-time monitoring of your EV battery’s charge level, ranging from 0% to 100%. By offering precise insights into your remaining power, this gauge empowers you to make informed decisions regarding driving range and upcoming charging needs, ultimately contributing to a more confident and efficient EV experience. Designed for seamless integration with your vehicle’s Controller Area Network (CAN-bus) system operating at a 500K baud rate, this advanced gauge plays a crucial role in helping you understand and potentially extend the lifespan of your valuable EV battery. Its clear visual representation of the battery level, coupled with a timely low-level warning, allows for proactive management, ensuring your electric powertrain consistently operates at its peak.

KEY FEATURES AND BENEFITS:

• Precise Battery Monitoring: Delivers accurate, real-time feedback on your electric vehicle’s battery state of charge, displayed as a clear percentage from 0 to 100%.
• Enhanced Range Awareness: Provides the essential information needed to effectively plan your journeys and avoid unexpected battery depletion, promoting greater peace of mind on the road.
• Low Battery Warning System: Features an integrated warning light that illuminates when the battery level falls below 15%, providing a critical visual alert that prompts timely charging.
• Seamless CAN-Bus Integration: Designed to communicate directly with your EV’s CAN-bus system (at a 500K baud rate), ensuring reliable and accurate data acquisition.
• Supports Key EV Control Units: Engineered for compatibility with control units from reputable manufacturers such as Orion, AEM, Zero EV, and Thunderstruck.
• Promotes Battery Longevity: By providing clear and timely information about battery status, the gauge encourages responsible charging habits, potentially contributing to a longer battery lifespan.
• Easy Installation: Designed for straightforward installation, allowing you to quickly integrate this essential monitoring tool into your electric vehicle.
• Robust and Reliable: Built with quality components to withstand the demands of the automotive environment, ensuring consistent performance over time.

SPECIFICATIONS:

• Gauge Type: EV Battery Level
• Signal Type: CAN-Bus (500K baud rate)
• Range: 0–100%
• Size: 4 inches (100mm)
• Hole Size: 3.93 inches (100mm)
• Warning Light Activation: Below 15% battery level
• Included:
• EV CAN Harness
• 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
• EV CAN Jumper Harness

HOW TO USE:

1. Connect the EV CAN Harness: Plug the provided EV CAN harness into the designated CAN-bus port on your electric vehicle’s system and the corresponding connector on the Speedhut gauge.
2. Connect the Power & Lighting Harness: Attach the 3 ft Power & Lighting Harness to a suitable power source in your vehicle (following the gauge’s wiring instructions for positive, negative, and illumination if applicable) and the corresponding connector on the gauge.
3. Connect the EV CAN Jumper Harness: Use the EV CAN Jumper Harness if needed to facilitate connection within your specific vehicle’s CAN-bus setup, following the instructions provided with the harness.
4. Mount the Gauge: Insert the 4-inch (100mm) gauge into a 3.93-inch (100mm) diameter hole in your dashboard or instrument panel. Secure it using the provided mounting hardware (e.g., spin-lock ring).
5. Verify Functionality: Once all connections are secure, power on your electric vehicle. The Speedhut EV Battery Level Gauge should now display the current state of charge of your battery in real-time. Observe the warning light to ensure it illuminates when the battery level drops below 15%.

BENEFITS OF USING THE SPEEDHUT 4″ EV ORION BATTERY LEVEL GAUGE W/ WARNING (FOR4-SC1-EV):

• Accurate Charge Monitoring: Removes the guesswork by providing real-time battery level data for improved driving confidence.
• Enhanced Trip Planning: Enables better route decisions by giving clear visibility of charge levels.
• Critical Low Charge Alerts: Integrated light indicator reduces risk of surprise battery depletion.
• Battery Health Awareness: Promotes smart charging behavior to help extend battery lifespan.
• Optimized EV Performance: Seamless CAN-bus integration ensures reliable data for maintaining peak EV efficiency.

FEATURES:

• Real-time SOC Display: Continuously shows the battery’s state of charge as a percentage (0–100%).
• Direct CAN-Bus Communication: Receives data directly from the vehicle’s network for accurate readings.
• Dedicated Low-Level Indicator: A distinct light signals when the battery drops to a critical 15% level.
• Standard 4-inch (100mm) Size: Fits common gauge mounting locations.
• Plug-and-Play Harnesses: Includes necessary wiring for straightforward connection to EV systems.
• Compatibility with Popular Controllers: Works with Orion, AEM, Zero EV, and Thunderstruck units.
• Clear Visual Presentation: Easy-to-read display allows for quick assessment of battery status.
• Streamlined Integration: Designed to work harmoniously with existing EV electronics.
