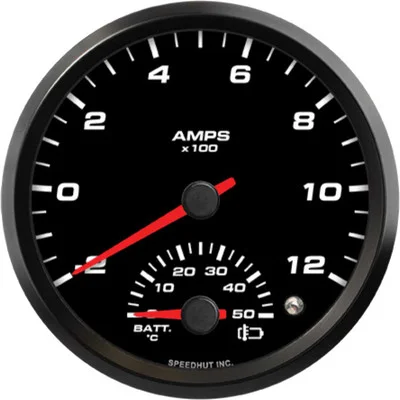

Speedhut 4″ EV Orion -200-1200 Amp/0-50C Bat Temp Gauge (FOR4-DG4-EV)

Description

The Speedhut 4″ EV Orion -200-1200 Amp/0-50C Bat Temp Gauge (FOR4-DG4-EV) is a state-of-the-art instrument designed to provide essential monitoring for your electric vehicle. This dual-function gauge displays real-time readings of both battery current, ranging from -200 to 1200 Amps (indicating both discharge and charge), and battery temperature, from 0 to 50 degrees Celsius. A significant safety feature is the integrated warning light that illuminates when the battery temperature exceeds 40°C, alerting you to potential overheating and helping to prevent battery damage. Utilizing a CAN-Bus communication protocol with a 500K baud rate, this gauge ensures seamless and precise data integration with your vehicle’s existing electronic system. Its 4-inch size and standard 3.93-inch (100mm) mounting hole make it easy to install in most dashboards. By providing crucial insights into your EV’s power consumption and thermal management, this gauge contributes to more efficient operation and proactive maintenance, ultimately enhancing the longevity and reliability of your electric vehicle.

KEY FEATURES AND BENEFITS:

• Dual Monitoring: Displays real-time battery current (from -200 to 1200 Amps) and battery temperature (from 0 to 50°C).
• Integrated Warning System: Warning light activates when battery temperature exceeds 40°C, helping prevent overheating damage.
• CAN-Bus Communication: Uses 500K baud rate CAN-Bus for accurate, seamless integration with EV electronics.
• Standard Mounting: Designed to fit a 4-inch gauge opening (100mm hole size).
• Efficient Power Insight: Offers valuable data for monitoring EV power usage and thermal status.
• Proactive Maintenance: Helps protect battery life and performance by identifying critical conditions early.

SPECIFICATIONS:

• Gauge Type: Dual
• Signal Type: CAN-Bus (500K baud rate)
• Ampere Range: -200 to 1200 Amps
• Temperature Range: 0 to 50°C
• Size: 4 inch
• Hole Size: 3.93 inches (100mm)
• Standard or Metric: Metric (Celsius for temperature)
• Battery Temp Warning: Light turns on above 40°C
• Ships With:
  • EV CAN Harness
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
  • EV CAN Jumper Harness

HOW TO USE:

• Mount the Gauge: Secure the 4″ EV Dual Gauge into a 3.93-inch (100mm) diameter hole in your vehicle’s dashboard.
• Connect the EV CAN Harness: Plug the provided EV CAN Harness into the designated CAN-Bus port on your vehicle and the corresponding connector on the back of the gauge.
• Connect the Power and Lighting Harness: Attach the 3 ft Power & Lighting Harness to a suitable power source in your vehicle, following the wiring instructions for illumination.
• Utilize the EV CAN Jumper Harness (if needed): If required for your specific vehicle setup, use the EV CAN Jumper Harness to facilitate the CAN-Bus connection.
• Monitor Readings: Once installed and connected, the gauge will display real-time Ampere and battery temperature readings.
• Observe Warning Light: Pay attention to the battery temperature warning light; it will illuminate if the battery temperature rises above 40°C.

BENEFITS OF USING THE SPEEDHUT 4″ EV ORION -200-1200 AMP/0-50C BAT TEMP GAUGE (FOR4-DG4-EV):

• Real-time monitoring of both current flow and battery temperature helps optimize energy consumption.
• Integrated high-temp warning system provides early alerts to prevent battery damage.
• Accurate data via CAN-Bus ensures seamless communication with your EV’s onboard systems.
• Easy installation with standard 4-inch size and included harnesses.
• Improves safety and performance awareness for proactive battery management.
• Supports efficient driving habits and extends battery longevity.

FEATURES:

• Simultaneous display of battery current and temperature.
• Dedicated visual warning for battery temperatures exceeding 40°C.
• Communicates efficiently via CAN-Bus at a 500K baud rate.
• Designed with a standard 4-inch (100mm) mounting dimension for straightforward installation.
• Presents temperature readings in the universally understood Metric (Celsius) system.
• Includes a specific EV CAN Harness for direct connection to compatible vehicle systems.
• Comes with a separate Power & Lighting Harness for powering the gauge and its illumination.
• Features an EV CAN Jumper Harness to accommodate various CAN-Bus connection configurations.
