Speedhut 4″ AEM -50 to 300 EV Power Gauge (FAE4-PW1-EV)

Description

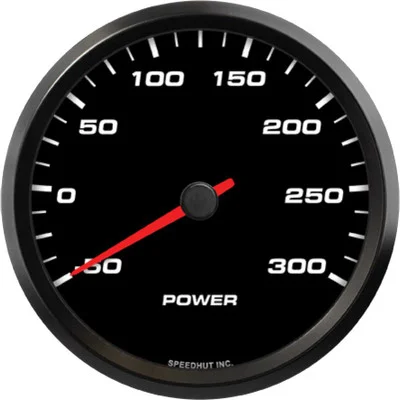

The Speedhut 4″ AEM -50 to 300 EV Power Gauge (FAE4-PW1-EV) is a specialized instrument designed to provide accurate, real-time monitoring of your electric vehicle’s power dynamics. Engineered for seamless integration with your EV’s Controller Area Network (CAN-Bus) system, this gauge operates at a 500K baud rate, delivering precise readings of power consumption and regeneration. This allows you to gain valuable insights into your electric vehicle’s energy usage, contributing to optimized performance and efficient driving habits. With a clear 4-inch display, the gauge presents power readings in kilowatts (kW), ranging from -50 kW to 300 kW, allowing you to observe both power draw during acceleration and power feedback during braking or deceleration.

KEY FEATURES AND BENEFITS:

• Real-time Power Monitoring: Provides immediate and accurate readings of your EV’s power consumption and regeneration.
• CAN-Bus Integration: Connects directly to your vehicle’s CAN-Bus system (500K baud rate) for reliable data.
• Clear Visual Display: The 4-inch gauge offers an easy-to-read display of power in kilowatts (-50 to 300 kW).
• Performance Optimization: Enables you to understand your driving habits and adjust them for better energy efficiency.
• System Awareness: Helps you monitor the overall health and performance of your electric vehicle’s power system.
• Complete Wiring Included: Comes with all necessary harnesses for power, lighting, and CAN-Bus connection, simplifying installation.

SPECIFICATIONS:

• Gauge Type: Power
• Signal Type: CAN-Bus (500K baud rate)
• Range: -50 to 300 kW
• Size: 4 inch
• Hole Size: 3.93 inches (100mm)
• Ships With:
• 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
• EV CAN Jumper Harness
• EV CAN Harness

HOW TO USE:

1. Locate the CAN-Bus Connection: Identify the CAN-Bus network connection point within your electric vehicle. Consult your vehicle’s service manual for the exact location.
2. Connect the EV CAN Harness: Plug the provided EV CAN Harness into the CAN-Bus connection point in your vehicle.
3. Connect the EV CAN Jumper Harness: Connect the other end of the EV CAN Harness to the designated CAN-Bus input on the Speedhut gauge. Use the EV CAN Jumper Harness to bridge any necessary connections within the CAN-Bus network if required by your vehicle’s setup.
4. Connect the Power and Lighting Harness: Attach the 3 ft Power & Lighting Harness to the corresponding connector on the Speedhut gauge.
5. Provide Power: Connect the power wire (typically red) from the Power & Lighting Harness to a suitable 12V power source in your vehicle. Connect the ground wire (typically black) to a reliable ground point. If your gauge has lighting features, connect the appropriate wire (often orange or similar) to your vehicle’s lighting circuit if desired.
6. Mount the Gauge: Insert the 4-inch gauge into a 3.93-inch (100mm) diameter hole in your dashboard or chosen mounting location. Secure it using the appropriate mounting hardware (usually included with the gauge).
7. Verify Functionality: Once all connections are secure, turn on your electric vehicle. The Speedhut EV Power Gauge should power on and display real-time power readings.

BENEFITS OF USING THE SPEEDHUT 4″ AEM -50 TO 300 EV POWER GAUGE (FAE4-PW1-EV):

• Precision Monitoring: Provides real-time data on both power consumption and regeneration for better insight into vehicle performance.
• Driving Efficiency: Helps you adjust driving behavior to optimize energy use and potentially extend range.
• Performance Feedback: Observes power draw during acceleration and regeneration during braking for system efficiency.
• Reliable Data Acquisition: CAN-Bus integration ensures dependable and accurate readings.
• Streamlined Installation: Includes all necessary wiring harnesses for a simplified setup process.

FEATURES:

• Displays instantaneous power in kilowatts (kW).
• Shows both positive (power draw) and negative (regeneration) power values.
• Communicates directly with the EV’s CAN-Bus system at a 500K baud rate.
• Offers a standard 4-inch (100mm) mounting size for versatile installation options.
• Includes a dedicated EV CAN Jumper Harness for specific vehicle integration needs.
• Comes with a separate Power & Lighting Harness for easy electrical connections.
• Provides real-time feedback to optimize driving efficiency.
• Contributes to a greater understanding of the EV’s power system performance.
• Offers a clear and easily interpretable visual representation of power data.
