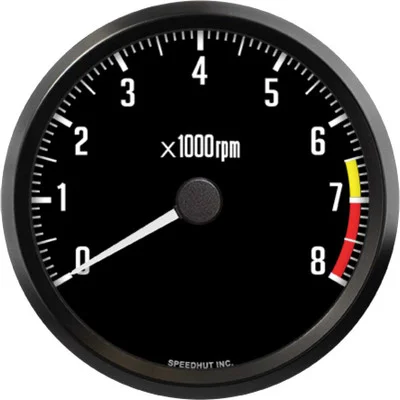

Speedhut 4″ 8K RPM Tachometer – JDM Datsun Z (L4-TC3-DATZ)

Description

The Speedhut 4″ 8K RPM Tachometer – JDM Datsun Z (L4-TC3-DATZ) is a vital instrument for monitoring the performance of your Datsun Z engine. Designed with the classic JDM aesthetic in mind, this gauge provides accurate, real-time readings of your engine’s revolutions per minute (RPM), allowing you to optimize its capabilities and ensure peak efficiency. Its compatibility with standard spark plug ignition systems and a wide range of engines makes it a versatile and essential tool for any Datsun Z enthusiast.

KEY FEATURES AND BENEFITS:

• Provides precise RPM readings: Crucial for monitoring engine performance and maximizing power.
• Ensures accurate pointer movement: Reliable even under demanding driving conditions.
• Compatible with 1 to 12 cylinder engines: Supports standard spark plug ignition systems.
• Works with a wide tach signal range: Accepts signals from 1/2 to 6 pulses per revolution and over one volt.
• Designed with a 4-inch size: Fits standard 100mm gauge openings.
• JDM Datsun Z series styling: Complements classic Z model interiors.
• Easy to install: Includes gauge mounting ring for simple setup.
• Features a rugged build: Designed for long-lasting performance.

SPECIFICATIONS:

• Gauge Type: Tachometer
• Signal Type: Standard spark plug ignition systems
• Compatibility: 1-12 cylinder engines
• Range: 0-8,000 RPM
• Size: 4 inch
• Hole Size: 3.95″ (100mm)
• Internal Shift Light: No
• Included: Gauge mounting ring, power harness, tachometer harness

HOW TO USE:

1. Preparation: Ensure your vehicle’s ignition is off and disconnect the negative battery terminal for safety.
2. Mounting: Locate a suitable 4-inch (100mm) diameter opening in your dashboard. Insert the tachometer into the opening from the front.
3. Securing: From the back of the dashboard, slide the included gauge mounting ring over the back of the tachometer. Tighten the ring to secure the gauge firmly in place.
4. Wiring – Power: Connect the power harness. Connect the red wire to a switched 12V power source (ignition), the black wire to ground, and the orange wire to the vehicle’s lighting circuit for illumination. Refer to the included wiring diagram.
5. Wiring – Tachometer Signal: Locate the tachometer signal wire from your vehicle’s ignition system. Connect the gauge’s signal wire to this wire.
6. Final Checks: Double-check all wiring connections to ensure they are secure and correct.
7. Testing: Reconnect the negative battery terminal. Turn the ignition on and start the engine. Verify the tachometer displays the correct RPM readings.

BENEFITS OF USING THE SPEEDHUT 4″ 8K RPM TACHOMETER – JDM DATSUN Z (L4-TC3-DATZ):

• Delivers precise, instantaneous RPM data for better engine management.
• Helps optimize gear shifts and engine load during performance driving.
• Reduces the risk of over-revving, potentially avoiding costly engine damage.
• Compatible with a variety of engine configurations, ensuring broad usability.
• Straightforward installation makes it accessible for most enthusiasts.

FEATURES:

• Real-Time Engine Speed Display: Offers immediate and accurate readings of your engine’s RPM.
• Optimized for Spark Plug Ignition: Specifically engineered for seamless integration with standard ignition systems.
• Broad Engine Compatibility: Functions effectively with engines having 1 to 12 cylinders.
• Wide Signal Input Range: Accurately interprets tach signals from 1/2 to 6 pulses per revolution.
• Straightforward Installation: Designed for easy mounting with the included hardware.
• Robust Construction: Built to withstand the demands of daily driving and performance use.
