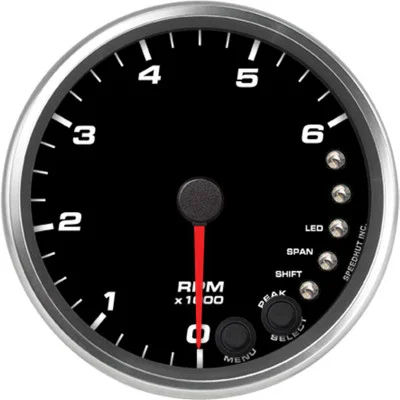

Speedhut 4″ 6K RPM Shift-light Tachometer (R4-TC2-REV)

Description

The Speedhut 4″ 6K RPM Shift-light Tachometer (R4-TC2-REV) is an essential instrument for drivers seeking precise and immediate feedback on their engine’s performance. Designed for vehicles utilizing standard spark plug ignition systems, this 4-inch gauge provides accurate readings up to 6,000 RPM. Its integrated, intensely bright shift light enhances performance monitoring, allowing drivers to identify optimal shift points for maximizing engine power and efficiency. The tachometer’s calibration is adjustable, ranging from 1/2 pulse to 6 pulses per revolution, ensuring seamless operation with a wide variety of gas engines that produce a tach signal over one volt. Built with a focus on reliability, this gauge maintains pointer precision even under demanding racing conditions. Its rugged construction and user-friendly installation process make it a valuable addition for anyone looking to gain better insight into their engine’s responsiveness.

KEY FEATURES AND BENEFITS:

• Precise RPM Monitoring: Delivers accurate, real-time readings of your engine’s revolutions per minute up to 6,000 RPM.
• Integrated Shift Light: Features intensely bright shift lights that provide a clear visual cue for optimal gear changes, improving performance and preventing over-revving.
• Wide Compatibility: Calibrated to work seamlessly with any gas engine utilizing a standard spark plug ignition system and producing a tach signal over one volt.
• Adjustable Calibration: Offers calibration settings from 1/2 pulse to 6 pulses per revolution, ensuring compatibility with 1 to 12 cylinder engines.
• Enhanced Performance: Enables drivers to monitor engine performance effectively, leading to improved efficiency and responsiveness.
• Easy Installation: Designed for straightforward installation, making it accessible for both DIY enthusiasts and professional installers.
• Included Mounting Hardware: Comes with a gauge mounting ring for secure and seamless integration into your vehicle’s dashboard.
• Wiring Harnesses Included: Ships with an 8 ft Tachometer Harness for LED-lit gauges and a 3 ft Power & Lighting Harness for LED-lit gauges and clocks, simplifying the wiring process.

SPECIFICATIONS:

• Gauge Type: Tachometer
• Tachometer Signal Type: Standard spark plug ignition systems
• Compatibility: 1-12 cylinder gas engines
• Range: 0 – 6,000 RPM
• Size: 4 inches (diameter)
• Hole Size: 3.95 inches (100mm)
• Internal Shift Light: Yes
• Included: 8 ft Tachometer Harness – for LED Lit Gauges (1 Wire 2 Pin Connector)
• 3 ft Power & Lighting Harness: for LED Lit Gauges and Clocks
• Gauge Mounting Ring: Included

HOW TO USE:

1. Mount the Gauge: Choose a suitable location on your dashboard and drill a 3.95-inch (100mm) diameter hole. Insert the Speedhut 4″ Tachometer into the hole and secure it using the included gauge mounting ring.
2. Connect the Power and Lighting Harness: Connect the 3 ft Power & Lighting Harness. Typically, this will involve connecting a wire to a 12V power source (ignition switched is recommended), a ground wire to a suitable grounding point on the vehicle chassis, and potentially a wire to your vehicle’s lighting system if you desire the gauge to illuminate with your headlights.
3. Connect the Tachometer Signal Harness: Connect the 8 ft Tachometer Harness. This wire needs to be connected to the tachometer signal output from your vehicle’s ignition system. The exact wire and location will vary depending on your vehicle’s make and model. Consult your vehicle’s service manual or a reliable wiring diagram for the correct connection point.
4. Calibrate (if necessary): Depending on your engine type (number of cylinders), you may need to calibrate the tachometer. Refer to the Speedhut documentation for instructions on setting the pulses per revolution to match your engine (1/2 pulse to 6 pulses per rev).
5. Set the Shift Light: If desired, set the RPM at which you want the shift light to activate. This process will be detailed in the Speedhut documentation and usually involves adjusting a setting on the gauge itself.
6. Test the Operation: Start your vehicle and observe the tachometer readings. Ensure the RPM is displayed accurately and that the shift light activates at the set RPM.

BENEFITS OF USING THE SPEEDHUT 4″ 6K RPM SHIFT-LIGHT TACHOMETER (R4-TC2-REV):

• Improved Gear Changes: The bright, integrated shift light provides a clear visual cue for optimal gear shifts, leading to better acceleration and potentially improved fuel efficiency.
• Engine Protection: By providing accurate RPM readings, the tachometer helps prevent over-revving your engine, which can cause significant damage.
• Enhanced Driving Experience: Real-time engine speed information allows for a more engaged and informed driving experience, especially during performance driving.
• Easy Monitoring: The clear 4-inch display ensures that RPM readings are easily visible at a glance.
• Versatile Compatibility: The adjustable calibration and compatibility with standard spark plug ignition systems on 1 to 12 cylinder engines make it suitable for a wide range of vehicles.
• Simplified Installation: The included mounting ring and wiring harnesses streamline the installation process.

FEATURES:

• Vibrant internal shift light: For immediate visual cues during critical RPM ranges.
• High-accuracy pointer movement: For reliable RPM readings, even in demanding conditions.
• Direct compatibility: With most gas engines utilizing a standard spark plug ignition system with a tach signal over one volt.
• Robust construction: Designed to withstand typical automotive environments.
• User-friendly installation: Facilitated by the included mounting ring.
• Pre-packaged with essential wiring harnesses: For power, lighting, and RPM signal connection.
• Suitable for a wide range of vehicles: With 1 to 12 cylinders.
• Clear and easy-to-read 4-inch gauge face: For quick performance monitoring.
