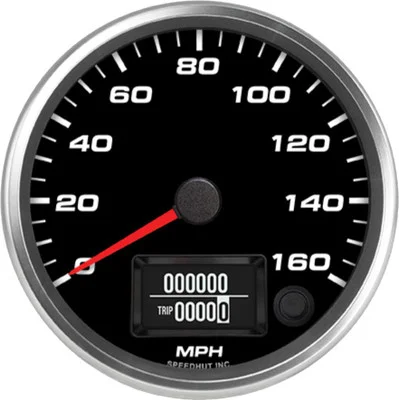

Speedhut 4″ 160 mph Programmable Speedometer (R4-S12-REV)

Description

The Speedhut 4″ 160 mph Programmable Speedometer (R4-S12-REV) is a precision instrument designed to provide accurate and customizable speed readings for a wide range of vehicles. Engineered for ease of use and compatibility, this gauge allows you to tailor the displayed speed to your vehicle’s specific configuration, ensuring reliable diagnostics and performance monitoring. Its robust construction and thoughtful design make it a dependable addition to any dashboard.

KEY FEATURES AND BENEFITS:

• Programmable Calibration: Effortlessly calibrate the speedometer to match your vehicle’s unique specifications, working seamlessly with any vehicle speed sensor.
• User-Configurable Design: Easily adjust settings to accommodate different gear ratios and tire sizes, ensuring precise speed assessments tailored to your individual vehicle configuration.
• Accurate Readings: An internal microprocessor ensures pinpoint accuracy in speed readings, providing reliable data for monitoring and diagnostics.
• Precise Pointer Movement: The high torque stepper motor guarantees accurate and smooth pointer movement, even under demanding driving conditions.

SPECIFICATIONS:

• Gauge Type: Speedometer
• Speedometer Signal Type: Electric Programmable
• Range: 0 – 160 MPH
• Size: 4 inch
• Hole Size: 3.93 inch (100mm)
• Standard or Metric: Standard
• Included:
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
  • 8 ft Programmable Speedometer Wire Harness (LED lit)

HOW TO USE:

1. Mount the Speedometer: Securely fit the 4-inch speedometer into a 3.93-inch (100mm) diameter hole in your vehicle’s dashboard using the spin-lock ring.
2. Connect the Wiring Harnesses: Attach the provided 3 ft Power & Lighting Harness and the 8 ft Programmable Speedometer Wire Harness to the gauge.
3. Connect to Power and Lighting: Connect the power and lighting wires from the harness to your vehicle’s electrical system, ensuring proper polarity.
4. Connect to the Vehicle Speed Sensor (VSS): Connect the appropriate wires from the 8 ft harness to your vehicle’s speed sensor output signal.
5. Calibrate the Speedometer:
   • Follow the specific calibration instructions provided in the product manual.
   • Drive your vehicle at a known, steady speed (as per the manual’s instructions).
   • While driving at the known speed, press and hold the programming button until the gauge indicates calibration is complete.
6. Verify Calibration: After calibration, drive at different speeds to ensure the speedometer readings accurately reflect your vehicle’s actual speed. Make adjustments as needed by repeating the calibration process.
7. Utilize Additional Features (if applicable): Refer to the product manual for instructions on accessing and setting any additional features such as trip odometer reset or service interval alerts.

BENEFITS OF USING THE SPEEDHUT 4″ 160 MPH PROGRAMMABLE SPEEDOMETER (R4-S12-REV):

• Ensures Accurate Speed Readings: By allowing precise calibration to your specific vehicle setup, it eliminates inaccuracies caused by different tire sizes or gear ratios.
• Provides Reliable Diagnostics: Accurate speed information is crucial for diagnosing vehicle performance and identifying potential issues.
• Offers Customization: The programmable nature allows for seamless integration with a wide variety of vehicles and aftermarket modifications.
• Simplifies Installation: The included wiring harnesses and spin-lock mounting system make the installation process relatively straightforward.
• Guarantees Longevity: The robust construction and Lifetime Warranty on the electronic circuit board provide confidence in the product’s durability and lifespan.
• Enhances Dashboard Aesthetics: The solid aluminum bezel adds a touch of quality and visual appeal to your vehicle’s interior.

FEATURES:

• Easy Installation: The slim case and convenient spin-lock ring facilitate straightforward and secure mounting in your dashboard.
• Enhanced Durability: A solid billet aluminum bezel adds to the gauge’s robustness and provides an appealing aesthetic. The weather-resistant design ensures long-lasting performance in various environmental conditions.
• Peace of Mind: Backed by a Lifetime Warranty, offering assurance and dependability for the electronic circuit board.
• Quality Craftsmanship: Proudly made in America, reflecting a commitment to high standards of manufacturing and material quality.
