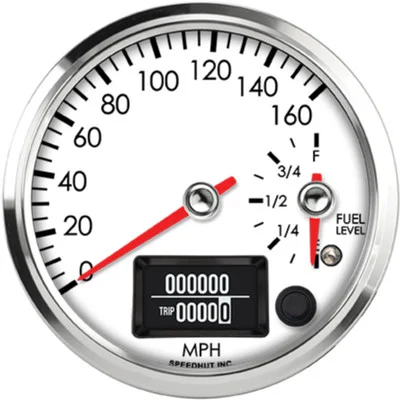

Speedhut 4″ 160 mph GPS Speedometer/Fuel Level Dual Gauge (R4-DS3-LEG)

Description

Experience a new level of driving confidence with the Speedhut 4″ 160 mph GPS Speedometer/Fuel Level Dual Gauge (R4-DS3-LEG). This innovative gauge combines the accuracy of GPS-driven speed measurement with reliable fuel level indication in a single, easy-to-install 4-inch unit. Say goodbye to the complexities of traditional speed sensors and enjoy precise, real-time speed readings without the need for calibration. Paired with a programmable fuel level gauge, this dual-function instrument provides essential information at a glance, enhancing your overall driving experience. Built with quality components and backed by a lifetime warranty on electronics, this gauge is a dependable addition to any vehicle.

KEY FEATURES AND BENEFITS:

• Accurate GPS Speedometer: Utilizes GPS technology for precise speed readings from 0 to 160 MPH, eliminating the need for mechanical or electronic speed sensors.
• Hassle-Free Installation: Requires only a 12V power connection and the included waterproof GPS antenna, which can be mounted conveniently anywhere in your vehicle.
• No Calibration Required: Forget about inputting tire sizes or gear ratios; the GPS automatically provides accurate speed data.
• Global Operation: Works worldwide with free GPS signals – no subscriptions or additional fees. It’s a receive-only system, ensuring your data privacy.
• Integrated Fuel Level Gauge: Provides reliable monitoring of your fuel level and is programmable to work with most aftermarket and factory fuel level senders (under 300 ohms). Please note: Fuel level sensor is NOT included.
• Precise Readings: Features an internal microprocessor for highly accurate data processing.
• Smooth and Accurate Pointer Movement: Equipped with a high-torque stepper motor to ensure precise needle movement, even under demanding driving conditions.
• Easy Mounting: Designed with a slim case and a user-friendly spin-lock ring for quick and secure installation in a 3.95″ (100mm) diameter hole.
• Enhanced Durability: Features a solid billet aluminum bezel for added strength and a premium look. The gauge also boasts a weather-resistant construction for reliable performance in various conditions.
• Peace of Mind: Backed by a lifetime warranty on the gauge electronics and a 5-year warranty on hardware.
• Quality Craftsmanship: Proudly made in the USA.

SPECIFICATIONS:

• Gauge Type: Dual GPS Speedometer / Fuel Level
• Speedometer Range: 0 – 160 MPH
• Fuel Level Range: Empty (E) – Full (F)
• Size: 4 inches
• Hole Size: 3.95 inches (100mm)
• Standard or Metric: Standard (MPH)
• Included:
• GPS Antenna with 9.8 ft long cable and male SMA connector
• Wiring Harness (2-Wire Cable)
• 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks

HOW TO USE:

1. Mount the Gauge: Locate a suitable 4-inch diameter hole (3.95″) in your dashboard or mounting panel. Insert the gauge into the hole and secure it from the back using the spin-lock ring.
2. Connect Power: Connect the red wire from the 2-wire wiring harness to a 12V positive power source in your vehicle that is switched with the ignition. Connect the black wire to a reliable ground.
3. Install GPS Antenna: Mount the included GPS antenna in a location with a clear view of the sky. Ensure it is protected from the elements. Route the antenna cable to the back of the gauge and connect the male SMA connector to the corresponding port on the gauge.
4. Connect Lighting (Optional): If your gauge features LED backlighting, connect the appropriate wires from the 3 ft power & lighting harness according to the gauge’s specific wiring diagram (typically a wire for positive and a wire for ground for the lighting).
5. Connect Fuel Level Sender: Connect the wire from your fuel level sender to the designated input wire on the gauge’s wiring harness. Refer to the gauge’s wiring diagram for the correct connection. Ensure your fuel level sender has an ohm range under 300 ohms.
6. Start Your Vehicle: Once all connections are secure, start your vehicle. The speedometer should begin displaying your speed as soon as the GPS acquires a signal. The fuel level gauge should indicate the current fuel level based on your vehicle’s sender.

BENEFITS OF USING THE SPEEDHUT 4″ 160 MPH GPS SPEEDOMETER/FUEL LEVEL DUAL GAUGE (R4-DS3-LEG):

• Unmatched Speed Accuracy: Rely on precise speed readings directly from GPS satellites, eliminating inaccuracies caused by tire wear or gear changes.
• Simplified Installation: Avoid the complexities of installing and calibrating traditional speed sensors, saving you time and effort.
• Space-Saving Design: Combine two essential gauges into one compact 4-inch unit, freeing up valuable dashboard space.
• Universal Compatibility (Speedometer): The GPS speedometer works in any vehicle globally without the need for specific vehicle interfaces.
• Versatile Fuel Level Integration: Compatible with a wide range of existing fuel level senders.
• Enhanced Reliability: Benefit from the durability of a billet aluminum bezel and weather-resistant construction, ensuring long-lasting performance.
• Long-Term Assurance: Enjoy peace of mind with a lifetime warranty on the electronic components.

FEATURES:

• Real-time speed tracking via satellite-based GPS technology.
• Integrated fuel level display for convenient monitoring.
• Straightforward two-wire power connection for the speedometer.
• Included external GPS antenna for optimal signal reception.
• Slim profile case for flexible mounting options.
• Secure mounting with the spin-lock ring mechanism.
• Robust billet aluminum bezel for a premium and sturdy finish.
• Designed to withstand various environmental conditions.
• Odometer for tracking total vehicle mileage.
• Resettable trip meter for measuring individual journeys.
• Display for recording 0-60 mph acceleration time and distance.
• Capability to measure 1/4 mile time and speed.
• Indicates current elevation.
• Function to recall the highest speed achieved.
• Shows the current direction of travel.
• Accurate timekeeping via GPS.
• Instantaneous speed displayed digitally on an LCD.
• Potential for integrated turn signal and high beam indicators (check specific model).
