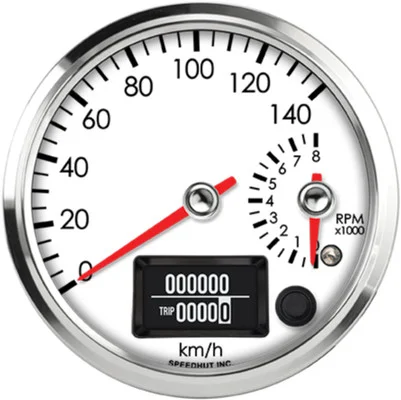

Speedhut 4″ 140 km/h GPS Speedometer/8K Tachometer Gauge (R4-DS11-LEG)

Description

Experience unmatched precision and versatility with the Speedhut 4″ 140 km/h GPS Speedometer/8K Tachometer Gauge (R4-DS11-LEG). This advanced 4-inch dual gauge seamlessly combines a GPS speedometer with a high-performance tachometer, delivering real-time vehicle metrics in one compact unit. Say goodbye to sensor calibration and enjoy straightforward installation using the included waterproof GPS antenna. With support for various engine types and RPM signals, this unit is ideal for performance monitoring across different driving conditions. Built to last with a billet aluminum bezel and weather-resistant design, it reflects superior American craftsmanship and is backed by a lifetime electronics warranty and a 5-year hardware guarantee.

KEY FEATURES AND BENEFITS:

• Integrated dual-function gauge: Combines a GPS speedometer and tachometer in one 4-inch unit.
• GPS-based speed readings: Eliminates the need for traditional sensors or manual calibration.
• Global compatibility: Operates worldwide using free GPS signals—no subscriptions required.
• Versatile tachometer support: Works with nearly all engine types and signals over one volt, supporting 1/2 to 6 pulses per revolution.
• High-accuracy performance: Internal microprocessor ensures reliable readings, even under racing conditions.
• Simple installation: Requires only 12V power and the included harnesses and GPS antenna.
• Durable construction: Features a billet aluminum bezel and weather-resistant housing.
• Peace of mind: Comes with a lifetime warranty on electronics and 5-year warranty on hardware.
• American-made: Proudly manufactured in the USA.

SPECIFICATIONS:

• Gauge Type: Dual GPS Speedometer / Tachometer
• Speedometer Range: 0–140 km/h (Metric)
• Tachometer Range: 0–8,000 RPM
• Size: 4 inches (100 mm)
• Hole Size: 3.93 inches (100 mm)
• Power Requirement: 12V
• Included:
  • GPS Antenna with 9.8 ft long cable and male SMA connector
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
  • 8 ft Tachometer Harness – for LED Lit Gauges (1 Wire 2 Pin Connector)

HOW TO USE:

1. Mount the Gauge: Secure the 4-inch Speedhut dual gauge in a suitable 3.93-inch (100mm) diameter opening in your vehicle’s dashboard using the slim case and spin-lock ring.
2. Connect Power: Attach the 3 ft Power & Lighting Harness to a 12V power source in your vehicle.
3. Install GPS Antenna: Mount the provided waterproof GPS antenna in a location with a clear view of the sky. Connect the antenna cable (with the male SMA connector) to the designated port on the back of the gauge.
4. Connect Tachometer Signal: Attach the 8 ft Tachometer Harness (1 Wire 2 Pin Connector) to your engine’s tachometer signal wire (any signal over one volt, supporting 1/2 to 6 pulses per revolution).
5. Start Your Vehicle: Once all connections are secure, start your vehicle. The GPS speedometer will automatically acquire a satellite signal and begin displaying your speed. The tachometer will display the engine’s RPM.

BENEFITS OF USING THE SPEEDHUT 4″ 140 KM/H GPS SPEEDOMETER/8K TACHOMETER GAUGE (R4-DS11-LEG):

• Accurately monitor your vehicle’s speed and RPM without traditional sensors or calibration.
• Benefit from simple and intuitive installation with included wiring harnesses and antenna.
• Enjoy global operation powered by free GPS signals with no recurring fees.
• Track engine performance precisely across various engine types and challenging conditions.
• Enhance dashboard functionality with a single, space-efficient unit.
• Trust in long-lasting durability, thanks to weatherproof construction and robust materials.
• Receive top-tier support with lifetime warranty on electronics and 5-year hardware warranty.

FEATURES:

• Utilizes Global Positioning System for precise speed readings.
• Offers a wide tachometer compatibility, working with most engine signal types.
• Incorporates an internal microprocessor for highly accurate data processing.
• Employs a high-torque stepper motor for smooth and accurate pointer movement.
• Features a slim gauge case for versatile mounting options.
• Includes a spin-lock ring for easy and secure installation.
• Constructed with a solid billet aluminum bezel for enhanced durability and aesthetics.
• Designed to withstand various weather conditions.
• Backed by a lifetime warranty on electronic components.
• Proudly manufactured in the United States.
