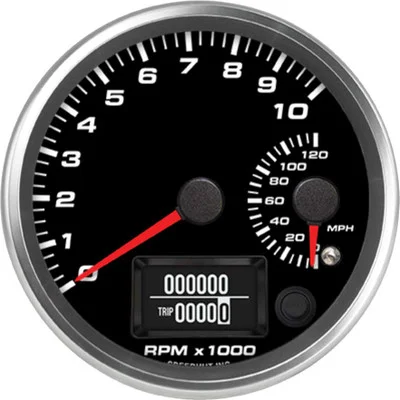

Speedhut 4″ 10K Tachometer/120 mph GPS Speedometer Gauge (R4-DS15-REV)

Description

The Speedhut 4″ 10K Tachometer/120 mph GPS Speedometer Gauge (R4-DS15-REV) is a precision-engineered dual gauge that integrates a 10,000 RPM tachometer with a GPS-based 120 MPH speedometer into a compact 4-inch unit. It delivers accurate readings without relying on traditional sensors or calibration. Installation is easy with a 12V power source and the included waterproof GPS antenna. Compatible with virtually any engine, this gauge supports tach signals over 1 volt and operates using free, global GPS data. Designed with a high-torque stepper motor and housed in a weather-resistant casing with a solid billet aluminum bezel, this American-made instrument ensures long-lasting performance and comes with a Lifetime Warranty.

KEY FEATURES AND BENEFITS:

• Dual gauge design: Combines a 10,000 RPM tachometer and 120 MPH GPS speedometer
• GPS-based operation: No need for speed sensors, tire size, or gear ratio calculations
• Global functionality: Works anywhere using free GPS signals with no subscription fees
• Universal tachometer compatibility: Supports signals over 1 volt and 0.5–6 pulses per revolution
• Microprocessor precision: Ensures accurate and consistent readings

SPECIFICATIONS:

• Gauge type: Dual GPS Speedometer and Tachometer
• Tachometer range: 0 – 10,000 RPM
• Speedometer range: 0 – 120 MPH
• Size: 4 inches
• Hole size: 3.93 inches (100mm)
• Units: Standard (MPH)
• Tachometer compatibility: Any engine with a tach signal over 1 volt (0.5 to 6 pulses/rev)
• GPS operation: Worldwide, free (receives only)
• Included:
  • 8 ft Tachometer Harness (1 Wire, 2 Pin Connector)
  • 3 ft Power & Lighting Harness (for LED Lit Gauges and Clocks)
  • GPS Antenna with 9.8 ft cable and male SMA connector

HOW TO USE:

• Mount the Gauge: Secure the 4-inch gauge in the 3.93-inch hole using the included spin-lock ring.
• Connect Power and Lighting: Attach the 3 ft harness to a 12V power source and ground. This also powers the LED lighting.
• Connect the Tachometer: Use the 8 ft harness to connect to your engine’s tach signal (ECU, ignition coil, etc.). Ensure the signal exceeds one volt.
• Position the GPS Antenna: Mount in a location with clear sky visibility. The 9.8 ft cable allows flexible placement.
• Connect the GPS Antenna: Attach the SMA connector to the gauge’s GPS input port.
• Start Your Vehicle: Once all connections are secure, start the vehicle. The gauge will acquire GPS signal and display speed and RPM.

BENEFITS OF USING SPEEDHUT 4″ 10K TACHOMETER/120 MPH GPS SPEEDOMETER GAUGE (R4-DS15-REV):

• Simple installation: No traditional sensors or calibration required
• Space-saving design: Combines two essential functions in one gauge
• Universal compatibility: Works with nearly any engine configuration
• Worldwide GPS coverage: No fees or regional limitations
• Durable and stylish: Weather-resistant with a billet aluminum bezel
• Reliable performance: Engineered for demanding conditions
• Peace of mind: Backed by a Lifetime Warranty and built in the USA

FEATURES:

• Stepper motor technology: High-torque movement for precise pointer control
• Weather-resistant build: Suitable for harsh environments
• Easy installation: Includes spin-lock ring and prewired harnesses
• Solid billet aluminum bezel: Durable with a premium look
• Made in the USA: High-quality American craftsmanship with Lifetime Warranty
