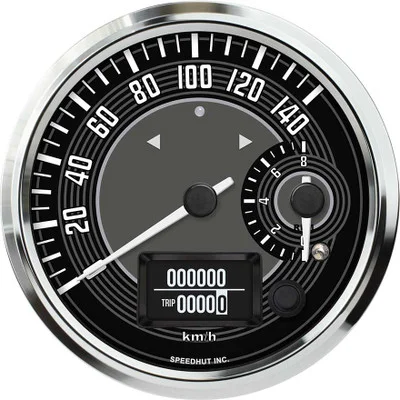

Speedhut 4-1/2″ VW Design 140kmh GPS Speed/8K Tach Gauge (R45-DS11-VW)

Description

Experience enhanced driving information with the Speedhut 4-1/2″ VW Design 140kmh GPS Speed/8K Tach Gauge (R45-DS11-VW). This dual gauge integrates a precise GPS-enabled speedometer with a responsive tachometer, all within a design that evokes the iconic styling of classic Volkswagen instrumentation. Designed as a universal fit solution, this gauge offers a straightforward way to monitor your vehicle’s speed and engine RPM without the complexities of traditional sensor-based systems.

KEY FEATURES AND BENEFITS:

• Accurate GPS Speedometer: Delivers real-time speed readings via GPS with no need for mechanical sensors or calibration.
• Universal Tachometer Compatibility: Accepts tach signals over one volt and supports 1/2 to 6 pulses per revolution for use with most engines.
• Simplified Installation: Requires only a 12V power connection and antenna placement, reducing wiring and setup time.
• Global Operation: Functions anywhere in the world using free GPS technology with no subscriptions required.
• High Accuracy: Internal microprocessor ensures reliable and precise readings.
• Smooth Performance: High-torque stepper motor provides accurate pointer movement even during rapid changes.
• Convenient Mounting: Slim case and spin-lock ring design allow for fast and secure dashboard installation.
• Durable Construction: Solid billet aluminum bezel offers visual appeal and lasting strength.
• Weather Resistant: Built to withstand diverse environmental conditions.
• Lifetime Warranty: Electronics are covered by a lifetime warranty, providing long-term peace of mind.
• Made in the USA: Manufactured with high standards of quality and craftsmanship.

SPECIFICATIONS:

• Gauge Type: Dual GPS Speedometer and Tachometer
• Speedometer Range: 0-140 km/h
• Tachometer Range: 0-8,000 RPM
• Size: 4 1/2 inch (4.5″)
• Hole Size Required: 4.20 inch (107mm) diameter
• Units: Metric (km/h)
• Included:
  • GPS Antenna with a 9.8 ft cable and male SMA connector
  • 8 ft Tachometer Harness (1 Wire 2 Pin Connector)
  • 3 ft Power & Lighting Harness

HOW TO USE:

1. Mount the Gauge: Locate a suitable 4.20 inch (107mm) diameter opening in your dashboard. Insert the gauge and secure it using the spin-lock ring.
2. Connect the Power and Lighting Harness: Connect the red wire to a switched 12V power source and the black wire to a reliable ground. Connect lighting wires if desired.
3. Install the GPS Antenna: Mount the antenna in a location with an unobstructed view of the sky. Secure and route the cable to the gauge, then attach the SMA connector.
4. Connect the Tachometer Harness: Attach the signal wire to a suitable tach source and connect the 2-pin connector to the back of the gauge.
5. Verify Functionality: Turn on the ignition. The speedometer should display readings once GPS is acquired, and the tachometer should reflect engine RPM.

BENEFITS OF USING THE SPEEDHUT 4-1/2″ VW DESIGN 140KMH GPS SPEED/8K TACH GAUGE (R45-DS11-VW):

• Accurate GPS-based speed readings without traditional sensors or calibration.
• Quick and easy installation needing only power and antenna connections.
• Global GPS functionality with no additional costs or subscriptions.
• Reliable RPM tracking across a wide range of engines.
• Maintains classic Volkswagen aesthetics while integrating modern technology.
• Durable and weather-resistant construction for all driving environments.
• Confidence in performance with a lifetime electronics warranty.

FEATURES:

• Real-time speed tracking via satellite-based positioning.
• Direct RPM measurement compatible with diverse engine configurations.
• Streamlined installation process with minimal wiring requirements.
• Global operation without the need for external sensors or adjustments.
• Precise data interpretation through an integrated processing unit.
• Consistent pointer movement ensured by a robust motor mechanism.
• Effortless and secure mounting using a specialized locking mechanism.
• Enhanced structural integrity and visual appeal with a machined metal surround.
• Resistant to the elements for reliable performance in various climates.
• Long-term assurance provided by comprehensive electronic coverage.
