Description

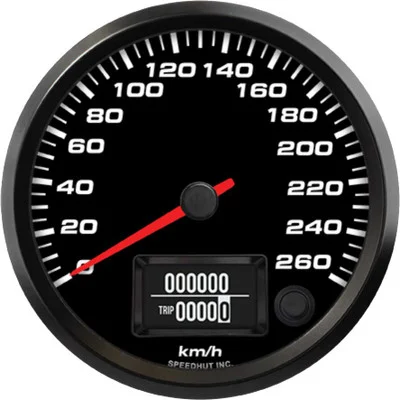

The Speedhut 4-1/2″ EV AEM 260 km/h Speedometer Gauge (FAE45-S4-EV) is a specialized instrument designed to provide precise speed readings for electric vehicles. Engineered for seamless integration with EV CAN-bus systems operating at a 500K baud rate, this gauge directly receives data from your vehicle’s electronic control unit (ECU), ensuring accuracy and eliminating the need for traditional speed sensors. With its clear metric display up to 260 km/h and optional indicator lights, this speedometer offers a modern and functional upgrade for your EV’s dashboard. The included harnesses simplify the installation process, making it a straightforward solution for monitoring your electric vehicle’s performance.
KEY FEATURES AND BENEFITS:
- Accurate Speed Readings: Receives speed data directly from the EV’s CAN-bus system for precise and reliable measurements.
- Seamless Integration: Designed to easily connect with EV CAN-bus networks operating at a 500K baud rate, particularly compatible with AEM controllers.
- Simplified Installation: The included EV CAN Jumper Harness, 3 ft Power & Lighting Harness, and EV CAN Harness facilitate a straightforward setup process.
- Metric Display: Clearly shows speed in kilometers per hour (km/h) up to a maximum of 260.
- Optional Indicators: Can be configured with optional 12 Volt activated turn signal and high beam indicators for added functionality.
- Modern Instrumentation: Provides an updated and high-tech look to your electric vehicle’s interior.
SPECIFICATIONS:
- Gauge Type: Speedometer
- Signal Type: CAN-Bus (500K baud rate)
- Range: 0–260 km/h
- Size: 4 1/2 inch (114mm)
- Hole Size: 4.230 inches (108mm)
- Standard or Metric: Metric
- Included: EV CAN Jumper Harness, 3 ft Power & Lighting Harness, EV CAN Harness
HOW TO USE:
- Connect the EV CAN Harness: Plug the provided EV CAN Harness into the designated CAN-bus port of your electric vehicle’s system.
- Connect the Gauge: Attach the other end of the EV CAN Harness to the corresponding connector on the Speedhut EV Speedometer Gauge.
- Connect the Power and Lighting Harness: Connect the 3 ft Power & Lighting Harness to the gauge’s power and lighting terminals. Ensure the power wire is connected to a suitable 12V power source in your vehicle and the ground wire is properly grounded.
- Optional Indicator Wiring: If you have the optional turn signal and high beam indicators, connect the respective wires from the Power & Lighting Harness to the corresponding 12V activated outputs for your turn signals and high beam.
- Mount the Gauge: Insert the 4-1/2″ gauge into a 4.230″ (108mm) diameter hole in your dashboard. Secure it using the provided mounting hardware.
- Verify Functionality: Once all connections are made, turn on your electric vehicle to ensure the speedometer is receiving data and displaying the speed correctly. Check the optional turn signal and high beam indicators if installed.
BENEFITS OF USING THE SPEEDHUT 4-1/2″ EV AEM 260 KM/H SPEEDOMETER GAUGE (FAE45-S4-EV):
- Precise speed monitoring directly from your EV’s computer system.
- Reduced wiring complexity compared to traditional speedometers.
- Reliable compatibility with AEM-controlled electric vehicles.
- Modern and clean dashboard aesthetic upgrade.
- Clear and easy-to-read metric scale up to 260 km/h.
- Optional turn signal and high beam indicators improve driving feedback and safety.
FEATURES:
- Direct communication with the EV’s ECU via CAN-Bus protocol.
- Operates at a 500K baud rate for efficient data transfer.
- Displays speed in kilometers per hour (km/h).
- Slim and durable case design for easy mounting.
- Solid aluminum bezel for a refined appearance.
- Designed specifically for electric vehicle applications.
- Includes necessary wiring harnesses for installation.
