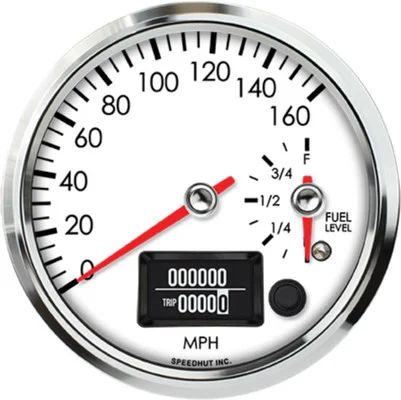

Speedhut 4-1/2″ 160 mph GPS Speedometer/Fuel Level Gauge (R45-DS3-LEG)

Description

Experience enhanced driving awareness with the Speedhut 4-1/2″ 160 mph GPS Speedometer/Fuel Level Gauge (R45-DS3-LEG). This innovative dual-function gauge seamlessly integrates a precise GPS-based speedometer with a reliable fuel level indicator into a single, convenient 4 1/2 inch unit. By utilizing advanced GPS technology, this speedometer delivers accurate, real-time speed readings without the complexities of traditional mechanical sensors or the need for calibration due to tire size or gear ratio changes. Installation is straightforward, requiring only a connection to a 12V power source and the mounting of the included waterproof GPS antenna. This gauge provides a comprehensive solution for monitoring two critical vehicle functions, offering both accuracy and ease of use.

KEY FEATURES AND BENEFITS:

• Dual Functionality: Combines a GPS speedometer with a range of 0-160 MPH and a fuel level gauge displaying from Empty to Full.
• GPS Accuracy: Employs GPS technology for precise speed readings, eliminating the need for external sensors and calibration. Operates globally without subscription fees.
• Simplified Installation: Requires only a 12V power connection and the included GPS antenna, making setup quick and easy.
• Real-time Data: Provides instantaneous and accurate speed and fuel level information.
• Dependable Performance: Features an internal microprocessor for precise calculations and a high-torque stepper motor for accurate pointer movement under all driving conditions.
• Robust Construction: Built with a slim case, a secure spin-lock mounting ring, and a solid billet aluminum bezel for enhanced durability and a refined appearance.
• Weather Resistance: Designed to withstand various environmental conditions, ensuring long-lasting performance.
• Peace of Mind: Backed by a lifetime warranty on the gauge electronics.
• American Craftsmanship: Proudly manufactured in the USA, reflecting high standards of quality.

SPECIFICATIONS:

• Gauge Type: Dual GPS Speedometer / Fuel Level
• Speedometer Range: 0-160 MPH
• Fuel Level Range: Empty (E) – Full (F)
• Size: 4 1/2 inch
• Mounting Hole Size: 4.250 inches (108mm)
• Standard or Metric: Standard
• Included:
• 3 ft Power & Lighting Harness (for LED Lit Gauges and Clocks)
• Wiring Harness (2-Wire Cable)
• GPS Antenna with 9.8 ft long cable and male SMA connector

HOW TO USE:

1. Mount the Gauge: Locate a suitable 4.250″ (108mm) diameter opening in your vehicle’s dashboard. Secure the gauge in place using the slim case and spin-lock ring.
2. Connect Power: Connect the 3 ft Power & Lighting Harness to a 12V power source in your vehicle. Ensure proper grounding.
3. Mount the GPS Antenna: Choose a location for the GPS antenna that has a clear view of the sky. The antenna is waterproof and can be mounted externally or internally (ensure no significant obstruction like metal).
4. Connect the Antenna: Connect the GPS antenna to the gauge using the provided 9.8 ft cable with the male SMA connector.
5. Connect Fuel Level Wiring: Connect the 2-wire cable from the gauge to your vehicle’s existing fuel level sender unit. Refer to your vehicle’s wiring diagram for correct connections.
6. Verify Functionality: Once all connections are made, turn on your vehicle’s ignition. The speedometer should begin to register speed based on the GPS signal, and the fuel level gauge should indicate the current fuel level.

BENEFITS OF USING THE SPEEDHUT 4-1/2″ 160 MPH GPS SPEEDOMETER/FUEL LEVEL GAUGE (R45-DS3-LEG):

• Enhanced Accuracy: GPS-based speed readings are highly accurate and not affected by tire size changes or mechanical wear.
• Simplified Installation: Eliminates the need to install and calibrate traditional speed sensors, saving time and effort.
• Space Saving: Combines two essential gauges into a single unit, reducing clutter on your dashboard.
• Reliable Performance: The internal microprocessor and stepper motor ensure consistent and precise readings for both speed and fuel level.
• Global Compatibility: The GPS speedometer functions worldwide without requiring any subscriptions.
• Long-Term Assurance: The lifetime warranty on electronics provides confidence in the product’s durability.
• Quality Construction: Made in the USA with high-quality materials, ensuring longevity and a premium feel.

FEATURES:

• Real-Time GPS Speed Tracking: Provides immediate and precise vehicle speed readings derived from satellite data.
• Direct Fuel Level Indication: Displays the current fuel level in a clear and easy-to-understand format (E-F).
• Internal Microprocessor Control: Ensures accurate processing and display of both speed and fuel level data.
• High-Torque Stepper Motor: Delivers smooth and precise pointer movement for accurate readings in dynamic driving situations.
• Streamlined Case Design: Features a thin profile for easy integration into various dashboards.
• Secure Spin-Lock Mounting: Offers a simple and robust method for securing the gauge in the mounting hole.
• Billet Aluminum Bezel: Adds a touch of style and provides enhanced physical protection to the gauge face.
• Weather-Resistant Build: Designed to withstand exposure to moisture and other environmental elements.
• Lifetime Electronics Warranty: Demonstrates the manufacturer’s commitment to the product’s long-term reliability.
• Plug-and-Play GPS Antenna: Includes a dedicated GPS antenna for straightforward connection and optimal signal reception.
