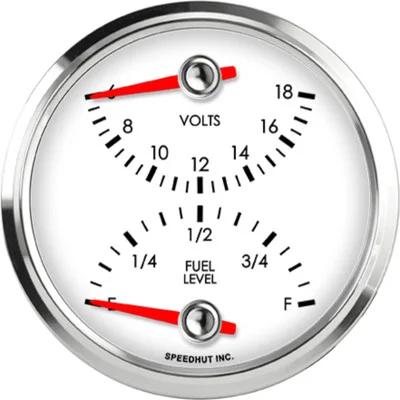

Speedhut 3-3/8″ Volts / Fuel Level Gauge (top/bot) (L3-DG2-LEG)

Description

The Speedhut 3-3/8″ Volts / Fuel Level Gauge (top/bot) (L3-DG2-LEG) offers a convenient and space-saving solution for monitoring two critical aspects of your vehicle’s operation: the electrical system’s voltage and the remaining fuel level. This dual-function gauge provides clear and accurate readings, allowing you to stay informed and address potential issues promptly. Its standard 3-3/8″ size ensures compatibility with many aftermarket gauge pods and openings.

KEY FEATURES AND BENEFITS:

• Dual Monitoring: Combines voltage (6-18V range) and fuel level (E-F) readings in a single, easy-to-read unit.
• Enhanced Awareness: Provides real-time information about your battery and charging system health, as well as your fuel supply.
• Warning Indication: Features a built-in warning light that can alert you to low or high voltage conditions or a critically low fuel level.
• Straightforward Installation: Includes necessary wiring harnesses (2-wire cable and 3 ft power & lighting harness) and a gauge mounting ring for easier setup.
• Standard Size: The 3-3/8″ diameter with a 3.375″ (86mm) hole size ensures compatibility with common gauge mounting solutions.

SPECIFICATIONS:

• Gauge Type: Dual Gauge
• Combo Options: Voltage and Fuel Level
• Voltage Range: 6-18 volts
• Fuel Level Range: E-F
• Size: 3 3/8 inch
• Hole Size: 3.375″ (86mm)
• Warning Light: Yes
• Gauge Mounting Ring: Included
• Included: Wiring Harness (2-Wire Cable), 3 ft Power & Lighting Harness

HOW TO USE:

• Mount the Gauge: Secure the 3-3/8″ gauge in your desired location using the included mounting ring. Ensure the 3.375″ (86mm) cutout is the correct size.
• Connect Power and Lighting: Attach the 3 ft Power & Lighting Harness to the appropriate power and ground sources in your vehicle, as well as to the gauge’s lighting terminals.
• Connect Voltage Input: Use the 2-wire cable from the Wiring Harness to connect to a reliable voltage source in your vehicle. Typically, this will be a switched 12V source.
• Connect Fuel Level Sender: Connect the remaining wires from the 2-wire cable to the wires leading from your vehicle’s fuel level sender unit. Note: Compatibility with your specific fuel level sender’s resistance range is crucial and may require calibration according to the Speedhut manual.
• Ground the Gauge: Ensure a proper ground connection for the gauge using the Wiring Harness.
• Test Functionality: Once all connections are made, turn on your vehicle’s ignition to verify that both the voltage and fuel level readings are displaying correctly and that the warning light functions as expected.

BENEFITS OF USING THE SPEEDHUT 3-3/8″ VOLTS / FUEL LEVEL GAUGE (TOP/BOT) (L3-DG2-LEG):

• Allows for constant monitoring of your vehicle’s electrical health to detect battery or charging system issues early.
• Provides a clear and immediate indication of remaining fuel to avoid unexpected shortages.
• The integrated warning light alerts you to critical voltage or fuel levels for timely intervention.
• Includes all necessary wiring and mounting hardware for a simplified installation process.

FEATURES:

• Combined display of voltage and fuel level in one compact unit.
• Compatible with electrical systems from 6 to 18 volts.
• Utilizes standard Empty to Full (E-F) fuel level scale.
• Built-in warning light for alerts on voltage and fuel status.
• 3-3/8″ standard gauge size fits most aftermarket pods.
• Requires a 3.375″ (86mm) diameter hole for mounting.
• Includes a gauge mounting ring for secure placement.
• Supplied with a 2-wire cable and separate power & lighting harness.
