Description

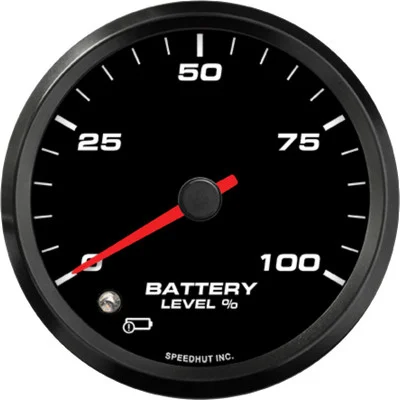

The Speedhut 3-3/8″ Orion EV Battery Level Gauge w/ Warning (FOR3-SC1-EV) is a vital instrument for any electric vehicle owner seeking accurate and immediate insight into their battery’s state of charge. Designed for seamless integration with your EV’s CAN-Bus system, this gauge provides a clear, real-time display of your battery level as a percentage, ranging from 0% to 100%. Its integrated warning system alerts you when your charge drops to critical levels, empowering you to manage your driving range and charging needs effectively. This gauge not only offers peace of mind but also contributes to the overall efficiency and potential longevity of your electric powertrain.
KEY FEATURES AND BENEFITS:
- Provides real-time monitoring: Displays your EV battery’s state of charge (SOC) from 0% to 100%.
- CAN-Bus integration: Connects directly to your vehicle’s CAN-Bus system operating at 500K baud rate for precise data.
- Built-in warning light: Illuminates when battery level drops below 15% to prompt recharging.
- Clear display: Features a 3-3/8 inch (85mm) analog gauge that’s easy to read.
- Easy installation: Requires a standard 3.33″ (85mm) mounting hole.
- Informs driving and charging: Helps with range planning and identifying battery issues early.
SPECIFICATIONS:
- Gauge Type: EV Battery Level / State of Charge (SOC)
- Signal Type: CAN-Bus (500K baud rate)
- Range: 0-100%
- Size: 3-3/8 inch (85mm)
- Hole Size: 3.33 inches (85mm)
- Included: EV CAN Jumper Harness, 3 ft Power & Lighting Harness, EV CAN Harness
HOW TO USE:
- Mount the Gauge: Install the 3-3/8″ gauge into a 3.33″ (85mm) dashboard opening using the provided hardware.
- Connect the CAN Harness: Plug the EV CAN Harness into your vehicle’s CAN-Bus system, ensuring correct connection to CAN high, CAN low, and ground.
- Connect the Power Harness: Attach the 3 ft Power & Lighting Harness to a 12V power source to enable gauge operation and illumination.
- Use the Jumper Harness: Employ the EV CAN Jumper Harness if needed for your specific vehicle configuration.
- Monitor Battery Level: Once installed, the gauge will display your EV battery’s state of charge in real time from 0% to 100%.
- Watch for Warnings: The LED warning indicator will activate when battery charge falls below 15% to alert you for immediate charging.
BENEFITS OF USING THE SPEEDHUT 3-3/8″ ORION EV BATTERY LEVEL GAUGE W/ WARNING (FOR3-SC1-EV):
- Provides accurate and real-time data on your electric vehicle’s battery status.
- Enables efficient driving range planning and reduces the risk of being stranded.
- Improves situational awareness through an intuitive display interface.
- Warns you in advance when charge is low, allowing for prompt charging.
- Integrates effortlessly with compatible CAN-Bus EV systems for reliable performance.
- Helps you understand your vehicle’s energy usage more effectively.
FEATURES:
- Analog gauge display shows battery percentage clearly.
- Direct communication with the EV’s controller area network (CAN-Bus).
- Standard 3-3/8″ size fits common dashboard cutouts.
- LED warning light alerts you when battery is critically low.
- Sleek design complements modern vehicle interiors.
- Delivers dependable and consistent readings.
- Includes necessary wiring harnesses for a straightforward installation.
