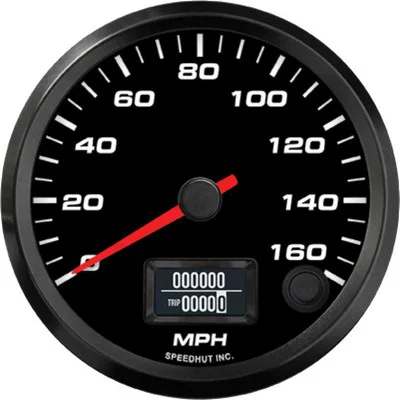

Speedhut 3-3/8″ EV AEM 160 mph Speedometer Gauge (FAE3-S2-EV)

Description

The Speedhut 3-3/8″ EV AEM 160 mph Speedometer Gauge (FAE3-S2-EV) offers precise and reliable speed monitoring specifically designed for electric vehicles. This gauge seamlessly integrates with your EV’s Controller Area Network (CAN-Bus) system, providing accurate readings without the need for traditional speed sensors. Operating at a 500K baud rate, it receives speed data directly from your vehicle’s electronic control unit (ECU), ensuring consistent and dependable performance. Its straightforward installation, facilitated by the included wiring harnesses, makes it an ideal choice for upgrading or customizing your EV’s instrumentation.

KEY FEATURES AND BENEFITS:

• Direct CAN-Bus Integration: Connects directly to your electric vehicle’s CAN-Bus system (500K baud rate) for accurate speed readings from the ECU.
• Precise Speed Monitoring: Displays speeds up to 160 miles per hour, allowing for clear and immediate awareness of your vehicle’s velocity.
• Simplified Installation: Eliminates the need for external speed sensors, utilizing the existing data network of your EV.
• Optimal Size: The 3-3/8 inch gauge fits into a standard 3.33-inch (85mm) mounting hole, ensuring compatibility with many dashboards.
• Complete Wiring Included: Ships with an EV CAN Harness, a 3 ft Power & Lighting Harness for LED illumination, and an EV CAN Jumper Harness, providing the necessary connections for setup.

SPECIFICATIONS:

• Gauge Type: Speedometer
• Signal Type: CAN-Bus (500K baud rate)
• Range: 0-160 MPH
• Size: 3 3/8 inch (85mm)
• Mounting Hole Size: 3.33 inches (85mm)
• Units: Standard (MPH)
• Included: EV CAN Harness, 3 ft Power & Lighting Harness, EV CAN Jumper Harness

HOW TO USE:

1. Identify the Mounting Location: Choose a suitable 3.33-inch (85mm) diameter hole in your vehicle’s dashboard for gauge installation.
2. Connect the EV CAN Harness: Plug the EV CAN Harness into the designated CAN-Bus port in your electric vehicle’s system.
3. Connect the Gauge to the EV CAN Harness: Connect the other end of the EV CAN Harness to the corresponding connector on the back of the Speedhut EV Speedometer.
4. Connect the Power & Lighting Harness: Attach the 3 ft Power & Lighting Harness to the power and ground connections in your vehicle’s electrical system to power the gauge and its LED illumination.
5. Utilize the EV CAN Jumper Harness (if needed): The EV CAN Jumper Harness can be used to extend the reach or facilitate connection to the CAN-Bus network if the primary port is not readily accessible.
6. Mount the Gauge: Insert the Speedhut EV Speedometer into the prepared 3.33-inch hole. Secure it using the provided mounting hardware (if any).
7. Verify Functionality: Turn on your electric vehicle to ensure the speedometer powers up and displays the correct speed readings based on the data received from the ECU via the CAN-Bus.

BENEFITS OF USING THE SPEEDHUT 3-3/8″ EV AEM 160 MPH SPEEDOMETER GAUGE (FAE3-S2-EV):

• Accurate Speed Indication: Provides precise speed readings directly from your EV’s ECU, eliminating potential inaccuracies from traditional wheel speed sensors.
• Seamless EV Integration: Designed specifically for electric vehicles utilizing CAN-Bus communication, ensuring optimal compatibility and performance.
• Clean and Modern Installation: By utilizing the CAN-Bus system, it reduces the need for extensive wiring and external sensors, resulting in a cleaner installation.
• Reliable Performance: Built with quality components to deliver consistent and dependable speed monitoring for your electric vehicle.
• Direct Data Access: Receives real-time speed information directly from the vehicle’s central computer, offering the most up-to-date and accurate readings.

FEATURES:

• Direct Communication: Obtains speed data directly from the EV’s ECU via the CAN-Bus network.
• Digital Data Interpretation: Internally processes the digital CAN-Bus signal to display accurate analog speed.
• Specific Baud Rate Compatibility: Engineered to function optimally with 500K baud rate CAN-Bus systems common in many EVs.
• Included Wiring Solutions: Comes with specialized harnesses designed for easy connection to EV systems.
• Standard Measurement: Displays speed in miles per hour (MPH), a common unit for speed measurement.
• Optimized Size for Dashboards: The 3-3/8 inch diameter is a popular size for gauge installations in various vehicle dashboards.
• Effortless Mounting: Designed to fit into a standard 3.33-inch (85mm) opening for straightforward installation.
