Description

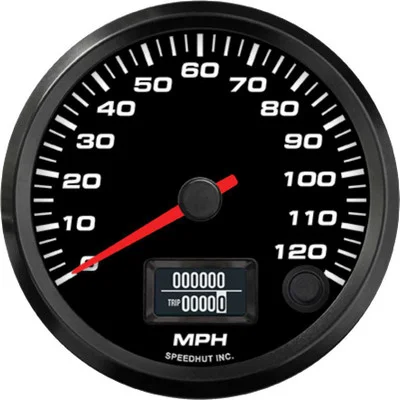

The Speedhut 3-3/8″ EV AEM 120 mph Speedometer Gauge (FAE3-S1-EV) is a specialized instrument designed to provide accurate speed readings for electric vehicles equipped with an AEM CAN-bus system operating at a 500K baud rate. This gauge seamlessly integrates with your EV’s electronics, drawing speed data directly from the vehicle’s Electronic Control Unit (ECU). This eliminates the need for traditional speed sensors, resulting in a more reliable and precise speed display. With its straightforward installation and included wiring harnesses, monitoring your EV’s speed performance has never been easier.
KEY FEATURES AND BENEFITS:
- Provides accurate speed readings: Directly from the EV’s ECU via the CAN-bus system.
- Designed for AEM CAN-bus systems: Fully compatible with systems operating at a 500K baud rate.
- Speed Display: Shows speed in MPH up to a maximum of 120 mph.
- Standard Gauge Size: 3-3/8 inch (85mm) for common mounting applications with a 3.33 inch hole size.
- Streamlined Integration: Easily connects to the vehicle’s CAN-bus for simplified installation.
- Complete Harness Set: Includes all wiring harnesses required for installation.
SPECIFICATIONS:
- Gauge Type: Speedometer
- Signal Type: CAN-Bus (500K baud rate)
- Range: 120 MPH
- Size: 3 3/8 inch (85mm)
- Hole Size: 3.33 inches (85mm)
- Standard or Metric: Standard
- Ships With:
- EV CAN Jumper Harness
- 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
- EV CAN Harness
HOW TO USE:
- Mount the Gauge: Locate a suitable 3.33 inch (85mm) opening on the dashboard or instrument panel.
- Connect the EV CAN Harness: Wire it into the CAN-bus system using the vehicle and AEM system’s documentation.
- Attach the EV CAN Jumper Harness: Use this to connect the speedometer to the EV CAN Harness.
- Power the Gauge: Connect the 3 ft Power & Lighting Harness to a 12V source and ground to enable gauge and LED illumination.
- Finalize Installation: Secure the gauge into the mounting hole.
- Test Functionality: Power on your EV to verify real-time speed display from the ECU via CAN-bus.
BENEFITS OF USING THE SPEEDHUT 3-3/8″ EV AEM 120 MPH SPEEDOMETER GAUGE (FAE3-S1-EV):
- Precise Speed Monitoring: Ensures accurate data sourced from your EV’s computer, bypassing traditional sensors.
- Simplified Installation: Built for direct AEM CAN-bus integration, minimizing wiring complexity.
- Clean Integration: No external speed sensors required, promoting a neater setup.
- Reliable Performance: Provides dependable speed readings tailored for EV systems.
- Direct ECU Communication: Efficient data acquisition through existing vehicle networks.
FEATURES:
- Easy-to-read 120 mph scale for quick speed assessments.
- Fits standard 3-3/8″ (85mm) gauge holes for broad compatibility.
- Supplied with EV CAN Jumper Harness for simplified CAN-bus connectivity.
- Includes dedicated EV CAN Harness for primary data transfer.
- 3 ft Power & Lighting Harness included for gauge power and backlighting.
