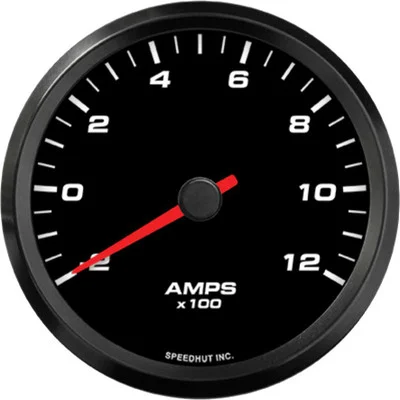

Speedhut 3-3/8″ AEM EV -200 to 1200 Amp Gauge (FAE3-AM1-EV)

Description

The Speedhut 3-3/8″ AEM EV -200 to 1200 Amp Gauge (FAE3-AM1-EV) is an essential instrument designed for precise monitoring of your electric vehicle’s electrical current. Engineered for accuracy and seamless integration, this 3-3/8 inch (85mm) gauge provides real-time readings of the amps flowing through your EV’s powertrain via a high-speed CAN-Bus connection operating at a 500K baud rate. This allows for detailed assessment of power consumption, aids in optimizing efficiency, and serves as a valuable tool for diagnosing the health and performance of your electric vehicle’s electrical system.

KEY FEATURES AND BENEFITS:

• Precise Real-Time Monitoring: Delivers accurate and instantaneous readings of electrical current ranging from -200 to 1200 amps, allowing you to observe both discharge and charging activities.
• CAN-Bus Integration: Utilizes the vehicle’s Controller Area Network (CAN) bus for direct and reliable data acquisition at a 500K baud rate, ensuring accurate and up-to-date information.
• Optimal Size: The 3-3/8 inch (85mm) gauge size is ideal for easy integration into most vehicle dashboards, providing a clear and accessible display without occupying excessive space.
• Diagnostic Capabilities: Enables users to identify potential electrical issues by monitoring current patterns, contributing to the overall maintenance and longevity of the EV’s electrical components.
• Enhanced Performance Understanding: By observing real-time current draw, drivers and technicians can gain a better understanding of the vehicle’s power consumption under various driving conditions, aiding in optimizing driving habits for efficiency.
• Complete Installation Kit: Ships with all necessary harnesses, including power and lighting, an EV CAN jumper harness, and an EV CAN harness, ensuring a straightforward installation process for compatible EV systems.

SPECIFICATIONS:

• Gauge Type: Amp Meter (Specifically for Electric Vehicles)
• Signal Type: CAN-Bus
• Baud Rate: 500K
• Measurement Range: -200 to 1200 Amps
• Size: 3-3/8 inch (3.375 inches)
• Mounting Hole Size: 3.33 inches (85mm)
• Included: 3 ft Power & Lighting Harness, EV CAN Jumper Harness, EV CAN Harness

HOW TO USE:

1. Identify the Vehicle’s CAN-Bus: Locate the appropriate CAN-Bus connection points within your electric vehicle. Refer to your vehicle’s service manual for specific locations and wiring diagrams.
2. Connect the EV CAN Harness: Using the provided EV CAN harness, carefully connect to the identified CAN-Bus wires in your vehicle. Ensure secure and correct wiring based on the harness documentation and your vehicle’s specifications.
3. Connect the Gauge: Plug the EV CAN harness into the corresponding connector on the back of the Speedhut EV Amps Gauge.
4. Connect the Power and Lighting Harness: Connect the 3 ft Power & Lighting Harness to the gauge. Ensure the power wire is connected to a suitable 12V power source in your vehicle and the ground wire is properly grounded. The lighting wires can be connected to your vehicle’s lighting circuit if you desire the gauge to illuminate with your headlights or other lights.
5. Mount the Gauge: Insert the gauge into a 3.33 inch (85mm) diameter hole in your dashboard or instrument panel. Secure it in place using the provided mounting hardware or bezel.
6. Verify Functionality: Once all connections are made, turn on your vehicle’s power. The Speedhut EV Amps Gauge should power on and display real-time amperage readings from the CAN-Bus data.
7. Monitor Readings: Observe the gauge readings during vehicle operation to understand power consumption during acceleration, deceleration, and charging.

BENEFITS OF USING THE SPEEDHUT 3-3/8″ AEM EV -200 TO 1200 AMP GAUGE (FAE3-AM1-EV):

• Provides accurate and immediate feedback on your EV’s current draw and charging status.
• Facilitates a deeper understanding of your electric vehicle’s power dynamics.
• Serves as a valuable tool for monitoring battery health and identifying potential electrical anomalies.
• Aids in optimizing driving habits to improve energy efficiency and extend range.
• Offers seamless integration with your EV’s existing systems through its CAN-Bus connectivity.
• Comes with all necessary wiring for a streamlined installation process.

FEATURES:

• Digital display of amperage readings for precise monitoring.
• Direct communication with the EV’s CAN-Bus system for reliable data.
• Wide measurement range from -200 to 1200 amps to capture all operational states.
• Industry-standard 3-3/8 inch (85mm) size for versatile mounting options.
• Includes dedicated EV CAN harnesses for simplified connection.
• Backlighting capability via the included power and lighting harness for enhanced visibility.
• Robust design engineered for automotive environments.
