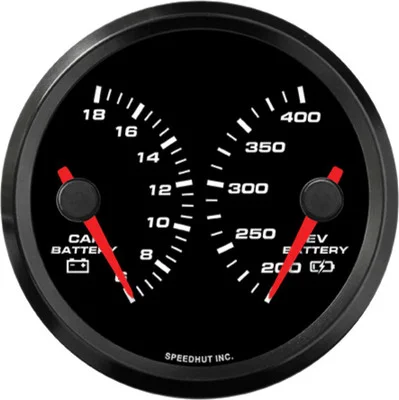

Speedhut 3-3/8″ AEM Car/EV Battery Dual Gauge (FAE3-DG2-EV)

Description

The Speedhut 3-3/8″ AEM Car/EV Battery Dual Gauge (FAE3-DG2-EV) offers a convenient and accurate solution for monitoring the voltage levels of both your vehicle’s standard battery and its high-voltage electric vehicle battery system. This dual-function gauge provides real-time feedback, allowing you to stay informed about the health and status of your power sources. Its integration with the vehicle’s CAN-Bus network ensures precise readings, while built-in warning lights offer an extra layer of security.

KEY FEATURES AND BENEFITS:

• Dual Voltage Monitoring: Displays both the car battery voltage (6-18V) and the EV battery voltage (200-400V) in a single, space-saving 3-3/8″ unit.
• CAN-Bus Integration: Communicates via CAN-Bus at a 500K baud rate for accurate and reliable data acquisition from the vehicle’s systems.
• Integrated Warning Lights: Equipped with warning indicators to alert the driver of critical low voltage levels for both battery systems.
• Precise Readings: Utilizes an internal microprocessor for accurate voltage measurements.
• Smooth Operation: Features a high-torque stepper motor for precise and responsive pointer movement.
• Robust Design: Constructed with a slim, weather-resistant case and a solid aluminum bezel for lasting performance.
• Easy Installation: Designed for straightforward mounting with a spin-lock ring in a standard 3.33-inch (85mm) opening.
• Quality Assurance: Proudly made in the USA and backed by a strong warranty.

SPECIFICATIONS:

• Gauge Size: 3-3/8 inch (85mm)
• Mounting Hole: 3.33 inch (85mm)
• Car Battery Voltage Range: 6-18V
• EV Battery Voltage Range: 200-400V
• Communication Protocol: CAN-Bus (500K baud rate)
• Included: Likely includes wiring harnesses (similar to models A-323, A-335, A-336)

HOW TO USE:

1. Mount the Gauge: Locate a suitable 3-3/8″ (85mm) opening on your dashboard. Insert the gauge and secure it using the spin-lock ring from the back.
2. Connect the Wiring: Connect the provided wiring harnesses to the appropriate power sources, ground, and the vehicle’s CAN-Bus system. Refer to the specific wiring diagram included with the product.
3. CAN-Bus Connection: Ensure the CAN-Bus wires are correctly connected to the vehicle’s CAN-Bus network (500K baud rate).
4. Power On: Once all connections are secure, turn on your vehicle’s ignition.
5. Observe Readings: The gauge will begin displaying the real-time voltage readings for both the car battery and the EV battery.
6. Monitor Warning Lights: Pay attention to the integrated warning lights, which will illuminate if either battery voltage drops to a critical level.

BENEFITS OF USING THE SPEEDHUT 3-3/8″ AEM CAR/EV BATTERY DUAL GAUGE (FAE3-DG2-EV):

• Provides a clear and immediate understanding of the voltage status of both critical battery systems in your vehicle.
• Helps in early detection of potential battery issues, preventing unexpected breakdowns or performance problems.
• Saves valuable dashboard space by combining two essential readings into a single, attractive gauge.
• Offers accurate and reliable data through its CAN-Bus integration and internal microprocessor.
• Increases driver awareness and confidence by providing constant feedback on vital electrical system parameters.
• The robust construction ensures long-lasting performance in various driving conditions.

FEATURES:

• Simultaneous display of auxiliary (6-18V) and high-voltage (200-400V) battery levels.
• Seamless data acquisition via the vehicle’s Controller Area Network.
• Visual alerts for critically low voltage conditions on either battery.
• Internal processing for precise and stable voltage readings.
• Responsive needle movement powered by a high-performance motor.
• Durable outer casing designed to withstand automotive environments.
• Secure and straightforward mounting mechanism.
• Manufactured with high-quality components in the USA.
