Speedhut 3-3/8″ 4K RPM Tachometer (L3-TC1-LEG)

Description

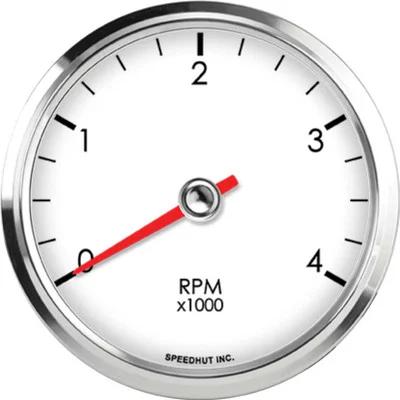

The Speedhut 3-3/8″ 4K RPM Tachometer (L3-TC1-LEG) is an analog gauge engineered to precisely display your engine’s revolutions per minute (RPM) up to a maximum of 4,000. Designed for compatibility with a wide range of gasoline engines utilizing standard spark plug ignition systems, this tachometer seamlessly integrates into vehicles with 1 to 12 cylinders. Its 3-3/8 inch (85mm) size and required 3.3 inch (84mm) mounting hole make it a suitable choice for various dashboard configurations. While this specific model does not feature an internal shift light, it prioritizes accurate and reliable RPM readings. Installation is facilitated by the inclusion of essential wiring harnesses and a mounting ring, ensuring a secure and functional setup.

KEY FEATURES AND BENEFITS:

• Accurate RPM Measurement: Provides precise readings of engine speed up to 4,000 RPM, allowing for optimal engine monitoring.
• Broad Engine Compatibility: Works with gasoline engines having between 1 and 12 cylinders that use standard spark plug ignition systems.
• Clear LED Illumination: Features LED lighting for enhanced visibility during nighttime driving conditions.
• Straightforward Installation: Comes with a 3 ft Power & Lighting Harness and an 8 ft Tachometer Harness, along with a gauge mounting ring, simplifying the installation process.
• Standard Size: The 3-3/8 inch (85mm) gauge size fits common dashboard openings.
• Secure Mounting: The included gauge mounting ring ensures a stable and secure fit within the designated 3.3 inch (84mm) hole.

SPECIFICATIONS:

• Gauge Type: Tachometer
• Units: Standard (RPM)
• Tachometer Signal Type: Standard spark plug ignitions systems
• Compatibility: 1-12 cylinder engines
• Range: 0 – 4,000 RPM
• Size: 3 3/8 inch (85mm)
• Hole Size: 3.3 inches (84mm)
• Internal Shift Light: No
• Gauge Mounting Ring: Included
• Ships With:
• 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
• 8 ft Tachometer Harness – for LED Lit Gauges (1 Wire 2 Pin Connector)

HOW TO USE:

1. Preparation: Identify a suitable location on your dashboard with a 3.3 inch (84mm) diameter opening. Ensure there is adequate space behind the dashboard for the gauge and wiring.
2. Mounting the Gauge: Insert the Speedhut 3-3/8″ Tachometer into the 3.3 inch (84mm) hole. Secure it from the rear using the provided gauge mounting ring. Tighten the ring until the gauge is firmly in place.
3. Connecting the Power and Lighting Harness: Connect the 3 ft Power & Lighting Harness to the appropriate power and ground sources in your vehicle’s electrical system. This harness will also power the LED illumination of the gauge. Refer to your vehicle’s wiring diagram for correct connections.
4. Connecting the Tachometer Signal Harness: Connect the 8 ft Tachometer Harness to the tachometer signal output from your engine’s ignition system. Typically, this involves connecting to the negative (-) side of the ignition coil or a designated tachometer output wire from your vehicle’s ECU (Engine Control Unit). Consult your vehicle’s service manual for the precise location of the tachometer signal wire. The harness uses a 1-wire, 2-pin connector to interface with the gauge.
5. Testing: Once all connections are made, start your vehicle’s engine. Observe the tachometer to ensure it is receiving a signal and displaying the correct RPM. Verify that the LED illumination is functioning when the vehicle’s lights are turned on.

BENEFITS OF USING THE SPEEDHUT 3-3/8″ 4K RPM TACHOMETER (L3-TC1-LEG):

• Precise Engine Monitoring: Provides accurate real-time feedback on engine speed, crucial for performance tuning and preventing over-revving.
• Wide Vehicle Compatibility: Designed to work with a broad spectrum of gasoline-powered vehicles with 1 to 12 cylinders utilizing standard spark plug ignition systems.
• Enhanced Nighttime Visibility: The integrated LED illumination ensures clear readability of the gauge even in low-light conditions.
• Simplified Installation: The inclusion of specific wiring harnesses and a mounting ring streamlines the installation process, making it more accessible.
• Durable and Reliable: Built with quality components to provide consistent and dependable performance.

FEATURES:

• Analog display for immediate and easily understandable RPM readings up to 4,000.
• Specifically calibrated for standard spark plug ignition signals, ensuring accurate interpretation of engine speed.
• Designed to function correctly with engines having any number of cylinders between one and twelve.
• Compact 3-3/8 inch (85mm) diameter allows for installation in common gauge pods and dashboard locations.
• Requires a 3.3 inch (84mm) diameter cutout for a clean and integrated look.
• Bright LED backlighting enhances visibility without causing excessive glare at night.
• Comes complete with a dedicated power and lighting wiring harness for straightforward electrical connection.
• Includes a specialized tachometer signal harness with a specific 1-wire, 2-pin connector for reliable RPM data input.
• A mounting ring is provided to securely fasten the gauge to the dashboard, preventing movement or vibration.
• Engineered for accurate and consistent RPM readings across the entire operating range.
