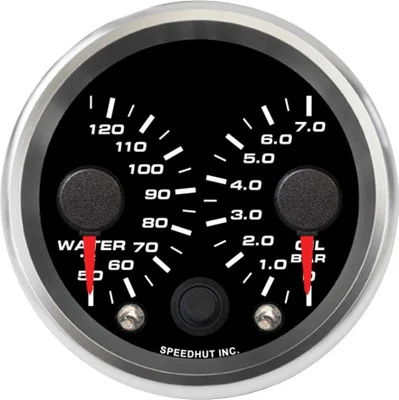

Speedhut 2-5/8″ Met Dual Water Temp / Oil Bar Gauge (R25-DG10-REV)

Description

The Speedhut 2-5/8″ Met Dual Water Temp / Oil Bar Gauge (R25-DG10-REV) offers a convenient and precise way to monitor two critical aspects of your engine’s performance: coolant temperature and oil pressure. This dual gauge presents both readings in a single, easy-to-read 2 5/8″ (68mm) metric display, helping you stay informed about your engine’s vital signs.

KEY FEATURES AND BENEFITS:

• Dual Functionality: Monitors both water temperature (50-125°C) and oil pressure (0-7.0 bar) simultaneously, saving space and providing comprehensive engine information.
• Metric Units: Displays readings in Celsius for temperature and bar for pressure, catering to users who prefer or require metric measurements.
• Integrated Warning Light: Features a built-in warning light that can be connected to trigger under user-defined conditions, providing an immediate visual alert for potential issues.
• Complete Installation Kit: Ships with all necessary sensors (temperature and pressure), wiring harnesses, and a mounting ring, ensuring a straightforward installation process.
• Standard Size: The 2 5/8″ (68mm) size is a common aftermarket gauge dimension, offering versatile mounting options.

SPECIFICATIONS:

• Gauge Type: Dual Gauge
• Combo Options: Water Temperature and Oil Pressure (Bar)
• Water Temperature Range: 50-125 °C
• Oil Pressure Range: 0-7.0 bar
• Units: Metric
• Size: 2 5/8 inch (68mm)
• Hole Size Required: 2.67 inches (68mm)
• Warning Light: Yes
• Mounting Ring: Included
• Included with Purchase:
  • Speedhut Temperature Sensor
  • 3 ft Power & Lighting Harness
  • Temperature Gauge Wiring Harness (2-Wire Cable)
  • Pressure Sensor (100 psi max)
  • Pressure Gauge Wiring Harness (3-Wire Cable)

HOW TO USE:

1. Mount the Gauge: Secure the 2 5/8″ gauge in a suitable location using the included mounting ring. Ensure the 2.67″ (68mm) hole size is appropriate.
2. Connect the Power and Lighting: Utilize the 3 ft Power & Lighting Harness to provide power to the gauge and illumination for the display.
3. Install the Temperature Sensor: Mount the provided Speedhut Temperature Sensor in the designated location on your engine’s cooling system. Connect it to the gauge using the Temperature Gauge Wiring Harness (2-Wire Cable).
4. Install the Pressure Sensor: Mount the included Pressure Sensor in the appropriate port on your engine’s oil system. Connect it to the gauge using the Pressure Gauge Wiring Harness (3-Wire Cable).
5. Wire the Warning Light (Optional): Connect the warning light wire to a trigger source according to your desired alert conditions.
6. Verify Readings: Once all connections are made, start your engine and check that the gauge is displaying accurate readings for both water temperature and oil pressure.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ MET DUAL WATER TEMP / OIL BAR GAUGE (R25-DG10-REV):

• Simultaneous Monitoring: Allows convenient observation of both water temperature and oil pressure for proactive engine management.
• Early Problem Detection: Helps prevent costly engine damage by catching abnormalities early.
• Metric Readings: Appeals to users who prefer Celsius and bar units for compatibility or preference.
• Complete Installation Package: All sensors and wiring are included for a hassle-free setup.
• Warning Light Function: Offers an extra layer of safety through immediate alerts of out-of-range conditions.

FEATURES:

• Combined Display: Presents both water temperature and oil pressure readings in a single, space-saving unit.
• Visual Alert System: Integrated warning light for immediate notification of abnormal conditions.
• Comprehensive Kit: Includes all necessary sensors and wiring for a complete installation.
• Direct Sensor Integration: Designed for seamless connection with the included Speedhut sensors.
• Illuminated Display: Features backlighting via the included power and lighting harness for enhanced visibility.
