Description

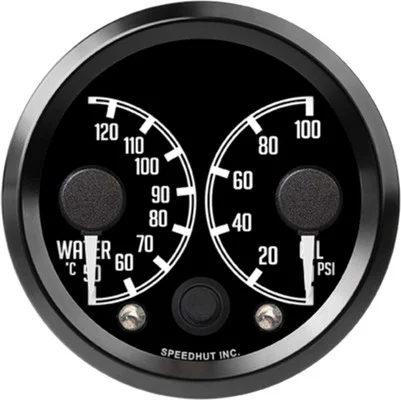

The Speedhut 2-5/8″ Gauge Celsius Water Temp / Oil Pressure (R25-DG5-DATZ) offers a space-saving solution for monitoring two critical engine parameters in a single, easy-to-read instrument. This dual gauge provides real-time feedback on your engine’s water temperature and oil pressure, allowing for proactive maintenance and performance optimization. Designed with a focus on clarity and functionality, it’s a valuable addition to any vehicle where engine health monitoring is essential.
KEY FEATURES AND BENEFITS:
- Dual Functionality: Combines Celsius water temperature and PSI oil pressure readings in one compact 2-5/8″ gauge.
- Efficient Monitoring: Provides simultaneous, real-time data on two vital engine metrics.
- Early Warning System: Features a settable warning light to alert you to potential issues with water temperature or oil pressure.
- Complete Kit: Ships with all necessary sensors (temperature and pressure) and wiring harnesses for straightforward installation.
- Space Optimization: Consolidates two gauges into one, maximizing valuable dashboard space.
- User-Friendly Design: Offers a clear display for easy interpretation of engine conditions.
SPECIFICATIONS:
- Gauge Type: Dual Gauge
- Combo Options: Water Temperature and Oil Pressure
- Water Temperature Range: 50-125 °C
- Oil Pressure Range: 0-100 PSI
- Units: Metric (Celsius) for Temperature, Standard (PSI) for Pressure
- Size: 2 5/8 inch (67 mm)
- Hole Size: 2.67 inches (68 mm)
- Warning Light: Yes
- Included:
- 3 ft Power & Lighting Harness
- Pressure Gauge Wiring Harness (3-Wire Cable)
- Speedhut Temperature Sensor
- Temperature Gauge Wiring Harness (2-Wire Cable)
- Pressure Sensor (0-100 psi)
- Gauge Mounting Ring
HOW TO USE:
- Mount the Gauge: Secure the 2-5/8″ gauge in a 2.67″ (68mm) diameter hole in your dashboard using the included mounting ring.
- Connect Power and Lighting: Attach the 3 ft Power & Lighting Harness to a suitable power source and the gauge to illuminate the display.
- Install Temperature Sensor: Mount the provided Speedhut Temperature Sensor in a location that accurately reflects the engine’s water temperature.
- Connect Temperature Sensor Wiring: Connect the Temperature Gauge Wiring Harness (2-Wire Cable) between the temperature sensor and the gauge.
- Install Pressure Sensor: Mount the included Pressure Sensor in a location on the engine that allows for accurate oil pressure readings.
- Connect Pressure Sensor Wiring: Connect the Pressure Gauge Wiring Harness (3-Wire Cable) between the pressure sensor and the gauge.
- Set Warning Light (Optional): If desired, configure the warning light to activate at specific temperature or pressure thresholds according to the manufacturer’s instructions.
- Monitor Readings: Once installed and connected, the gauge will display real-time Celsius water temperature and PSI oil pressure readings when the vehicle is running.
BENEFITS OF USING THE SPEEDHUT 2-5/8″ GAUGE CELSIUS WATER TEMP / OIL PRESSURE (R25-DG5-DATZ):
- Enhanced Engine Monitoring: Provides immediate access to real-time engine temperature and pressure data.
- Proactive Maintenance: Helps identify engine issues early, reducing the risk of costly repairs.
- Space-Saving Design: Combines two gauges into one for a cleaner, more organized dashboard.
- Improved Safety: Settable warning light alerts you to critical changes in engine status.
- All-In-One Kit: Includes sensors and wiring, simplifying the installation process.
FEATURES:
- Integrated dual display for water temperature and oil pressure.
- JDM Datsun Z Series inspired design with black face and white lettering.
- Internal microprocessor for accurate and reliable readings.
- High-torque stepper motor for smooth and precise pointer movement.
- Slim case and spin-lock ring for easy and secure mounting.
- Weather-resistant construction suitable for automotive environments.
- Backed by a lifetime warranty from Speedhut.
- Made in the USA with high manufacturing standards.
