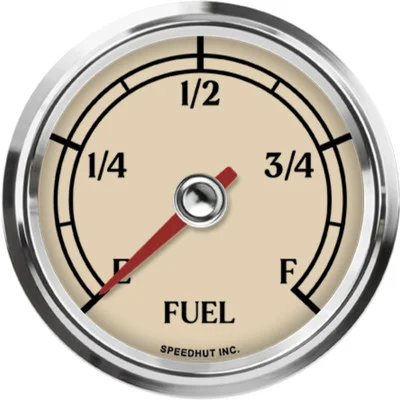

Speedhut 2-5/8″ Antique Programmable Fuel Level Gauge (L25-FL1-ATQ)

Description

The Speedhut 2-5/8″ Antique Programmable Fuel Level Gauge (L25-FL1-ATQ) offers a blend of classic aesthetics and modern functionality, allowing you to accurately monitor your vehicle’s fuel level. Designed with a timeless antique style, this gauge will complement vintage or custom dashboards while providing precise readings. Its programmable nature ensures compatibility with a wide range of fuel level sensors.

KEY FEATURES AND BENEFITS:

• Universal Compatibility: This gauge is designed to work with most fuel level sensors that operate at 300 ohms or less, providing flexibility for various vehicle applications.
• Clear Fuel Indication: The gauge face clearly displays the fuel level from “Empty” (E) to “Full” (F), allowing for easy monitoring.
• Classic Aesthetic: The antique styling adds a touch of vintage charm to your vehicle’s interior.
• Easy Installation: The 2 5/8 inch size fits standard gauge openings, and the included wiring harnesses simplify the installation process.
• Complete Wiring Included: Comes with both a 2-wire cable for the fuel level sensor connection and a 3 ft power and lighting harness for LED illumination.

SPECIFICATIONS:

• Gauge Type: Fuel Level Gauge
• Fuel Level Signal Type: 300 ohms or less
• Size: 2 5/8 inch
• Range: E-F
• Standard or Metric: Standard
• Hole Size: 2.67 inches (68mm)
• Warning Light: No
• Included: Wiring Harness (2-Wire Cable), 3 ft Power & Lighting Harness

HOW TO USE:

1. Mount the Gauge: Locate a suitable 2.67-inch (68mm) diameter opening in your dashboard or instrument panel. Securely mount the Speedhut fuel level gauge in this opening.
2. Connect the Power and Lighting Harness: Connect the 3 ft power and lighting harness to a suitable 12V power source and ground in your vehicle. This harness will also power the gauge’s LED illumination.
3. Connect the Fuel Level Sensor Harness: Connect the 2-wire cable to the output terminals of your fuel level sensor in the fuel tank. Ensure proper polarity based on your sensor’s wiring diagram.
4. Program the Gauge (if necessary): Depending on your specific fuel level sensor’s resistance range, you may need to program the gauge according to the manufacturer’s instructions to ensure accurate readings. Refer to the Speedhut documentation for programming steps.
5. Test the Gauge: Once all connections are made, turn on your vehicle’s ignition. The gauge should now display the current fuel level. Verify the accuracy of the reading as your fuel level changes.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ ANTIQUE PROGRAMMABLE FUEL LEVEL GAUGE (L25-FL1-ATQ):

• Broad compatibility with various fuel level sensors simplifies integration into different vehicle setups.
• Clear and easy-to-read display provides real-time fuel level monitoring to prevent unexpected fuel depletion.
• Classic antique design enhances the aesthetic of vintage or custom vehicle interiors.
• Included wiring harnesses make installation straightforward and time-efficient.

FEATURES:

• Adaptable Resistance Range: Specifically designed to function with fuel level senders outputting a resistance of 300 ohms or less.
• Intuitive Display: Presents fuel levels in a straightforward “Empty” to “Full” format for immediate understanding.
• Vintage-Inspired Design: Features an antique style that complements classic and custom vehicle interiors.
• Standard Size Fitment: The 2-5/8 inch diameter allows for installation in common gauge mounting locations with a 2.67-inch cutout.
• Essential Wiring Included: Comes equipped with a dedicated 2-wire harness for sensor connection and a separate harness for power and illumination.
