Description

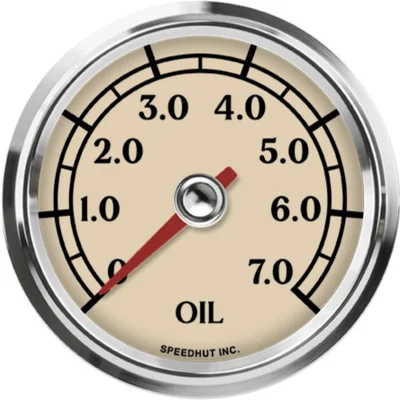

The Speedhut 2-5/8″ Antique 0-7.0 Bar Oil Pressure Gauge (L25-OP4-ATQ) offers a blend of classic styling and precise oil pressure monitoring for your vehicle. Designed with a timeless antique aesthetic, this metric gauge provides accurate readings from 0 to 7 bar, ensuring you have critical information about your engine’s health at a glance. The inclusion of a high-performance, 3-wire military-grade transducer underscores the reliability and accuracy of this instrument, making it a valuable addition to any vehicle where monitoring oil pressure is essential.
KEY FEATURES AND BENEFITS:
- Metric Readings: Displays oil pressure from 0 to 7 bar (approximately 0 to 101.5 PSI).
- Reliable Transducer: Integrated 3-wire military-grade transducer ensures consistent and dependable measurements.
- Antique Styling: Timeless design adds vintage elegance to dashboards.
- Universal Fit: 2 5/8 inch size fits many standard gauge pods and mounting locations.
- Ease of Installation: Includes power and sensor harnesses to simplify the setup process.
SPECIFICATIONS:
- Standard or Metric: Metric
- Gauge Type: Pressure Gauge
- Gauge Subtype: Oil Pressure Gauge
- Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
- Range: 0-7 bar
- Size: 2 5/8 inch
- Hole Size: 2.67 inches (68mm)
- Warning Light: No
- Ships With:
- 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
- Pressure Sensor – 100 psi
- Pressure Gauge Wiring Harness (3-Wire Cable)
HOW TO USE:
- Mount the Gauge: Secure the 2-5/8″ gauge in a suitable 2.67-inch (68mm) diameter opening in your dashboard or gauge pod.
- Connect the Power Harness: Attach the 3 ft Power & Lighting Harness to the gauge’s power and lighting connections. Ensure the power wire is connected to a fused 12V power source and the ground wire to a suitable ground.
- Install the Pressure Sensor: Mount the included pressure sensor to the engine’s oil pressure port. Ensure a proper seal to prevent leaks.
- Connect the Sensor Harness: Connect the 3-wire cable from the pressure sensor to the corresponding terminals on the back of the gauge.
- Verify Wiring: Double-check all wiring connections to ensure they are secure and correct according to the gauge’s wiring diagram.
- Test the Gauge: With the engine running, observe the gauge to ensure it is displaying the correct oil pressure readings.
BENEFITS OF USING THE SPEEDHUT 2-5/8″ ANTIQUE 0-7.0 BAR OIL PRESSURE GAUGE (L25-OP4-ATQ):
- Real-Time Monitoring: Accurately monitors oil pressure to help prevent engine damage.
- Classic Styling: Enhances the interior of vintage or retro-themed vehicles.
- High Reliability: Uses a military-grade 3-wire transducer for trustworthy readings.
- Improved Visibility: LED backlighting ensures the display is clear in any light.
- Simplified Installation: Includes wiring harnesses to ease setup and reduce install time.
FEATURES:
- Dependable Transducer: Employs a high-accuracy 3-wire military-grade pressure transducer.
- Standard Fitment: Designed for mounting in a 2.67 inch (68mm) diameter hole.
- LED Lighting: Illuminated via the included power and lighting harness for better visibility.
- Sensor Connection: Comes with a dedicated 3-wire cable for connecting the pressure sensor.
- Included Sensor: 100 PSI pressure sensor compatible with the gauge’s input range.
