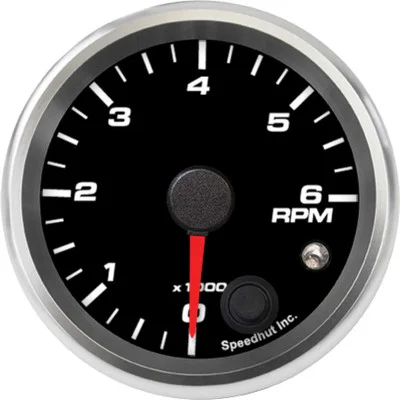

Speedhut 2-5/8″ 6K RPM Shift-light Tachometer (R25-TC2-REV)

Description

The Speedhut 2-5/8″ 6K RPM Shift-light Tachometer (R25-TC2-REV) is a reliable and easy-to-install gauge designed to provide precise engine speed readings for a wide range of vehicles. Its clear display and integrated shift light allow drivers to monitor their engine’s performance effectively and make timely gear changes.

KEY FEATURES AND BENEFITS:

• Accurate RPM Monitoring: Provides precise readings of engine speed up to 6000 RPM, ensuring optimal performance and preventing over-revving.
• Integrated Shift Light: Features an internal shift light that can be set to alert the driver at a specific RPM, improving shift timing and maximizing acceleration.
• Broad Compatibility: Compatible with standard spark plug ignition systems found in 1 to 12 cylinder engines, making it suitable for various vehicle types.
• Standard Sizing: The 2-5/8 inch (68mm) size ensures it fits into common gauge mounting locations.
• Easy Installation: Designed for straightforward installation with an included mounting ring and wiring harnesses.

SPECIFICATIONS:

• Gauge Type: Tachometer
• Standard or Metric: Standard
• Tachometer Signal Type: Standard spark plug ignition systems
• Compatibility: 1-12 cylinder
• Range: 0-6000 RPM
• Size: 2 5/8 inch
• Hole Size: 2.67 inches (68mm)
• Internal Shift Light: Yes
• Gauge Mounting Ring: Included
• Ships With:
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
  • 8 ft Tachometer Harness – for LED Lit Gauges (1 Wire 2 Pin Connector)

HOW TO USE:

1. Mount the Tachometer: Locate a suitable 2.67-inch (68mm) diameter hole in your vehicle’s dashboard or instrument panel. Secure the tachometer in place using the included mounting ring.
2. Connect the Power Harness: Connect the 3 ft Power & Lighting Harness to a suitable 12V power source in your vehicle. Ensure proper grounding. This harness also provides power for the internal LED illumination.
3. Connect the Tachometer Signal Harness: Connect the 8 ft Tachometer Harness. The single wire end of this harness needs to be connected to the negative (-) terminal of your engine’s ignition coil or to a designated tachometer signal output wire, depending on your vehicle’s wiring. The 2-pin connector end plugs into the back of the tachometer.
4. Set the Shift Light (if applicable): Refer to the specific instructions that may come with the product for setting the desired RPM trigger point for the internal shift light. This usually involves an adjustment dial or button on the gauge.
5. Verify Functionality: Start your vehicle and observe the tachometer reading as the engine RPM changes. Ensure the shift light activates at the set RPM.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ 6K RPM SHIFT-LIGHT TACHOMETER (R25-TC2-REV):

• Precise RPM Monitoring: Ensure accurate and immediate feedback on engine speed, promoting optimal performance and preventing over-revving.
• Shift Light Alert: Make timely and efficient gear changes with the built-in shift light, improving acceleration.
• Broad Compatibility: Compatible with vehicles using standard ignition systems, including 1-12 cylinder engines.
• Simple Installation: Quick and easy installation process with minimal wiring.
• Illuminated Display: Clear visibility in various lighting conditions, providing real-time RPM readings.

FEATURES:

• Provides real-time engine speed feedback for enhanced awareness.
• Offers a visual indication for optimal gear shifting points.
• Designed to work seamlessly with a wide array of 1 to 12 cylinder engines using standard spark plug ignition.
• Compact 2-5/8 inch size for versatile mounting options.
• Secure installation with the included mounting ring.
• Comes with necessary wiring for a simplified setup.
• Illuminated display for clear visibility under various lighting conditions (requires connection via the power harness).
