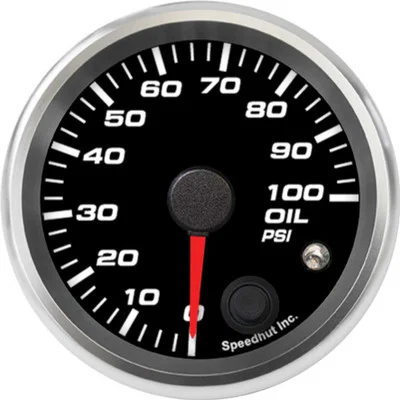

Speedhut 2-5/8″ 100 PSI Oil Pressure Gauge w/ Warning (R25-OP3-REV)

Description

The Speedhut 2-5/8″ 100 PSI Oil Pressure Gauge w/ Warning (R25-OP3-REV) is a vital instrument for monitoring your engine’s lubrication system. This gauge provides accurate and immediate readings of your oil pressure, allowing you to identify potential issues before they lead to costly damage. Featuring a reliable 3-wire military-grade transducer, this gauge delivers consistent and precise measurements. The integrated warning light offers an extra layer of security, alerting you to critical drops in oil pressure so you can take immediate action. Designed for a 2 5/8 inch mounting hole, this gauge is a practical and dependable addition to any vehicle where oil pressure monitoring is essential.

KEY FEATURES AND BENEFITS:

• Accurate Oil Pressure Monitoring: Provides real-time readings of your engine’s oil pressure, ranging from 0 to 100 PSI, allowing for proactive maintenance and issue detection.
• Reliable Sensor Technology: Utilizes a high-performance 3-wire military-grade transducer, ensuring stable and accurate pressure readings under various operating conditions.
• Integrated Low-Pressure Warning: Features a built-in warning light that illuminates when oil pressure falls below a critical level, providing immediate visual alerts to potential problems.
• Complete Installation Kit: Ships with all necessary components, including the pressure sensor, a dedicated wiring harness for the sensor, and a separate power and lighting harness for easy setup.
• Standard Size Compatibility: The 2 5/8 inch gauge size fits common aftermarket gauge pods and mounting solutions.

SPECIFICATIONS:

• Gauge Type: Pressure Gauge
• Gauge Subtype: Oil Pressure Gauge
• Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
• Range: 0-100 psi
• Size: 2 5/8 inch
• Hole Size: 2.67″ (68mm)
• Warning Light: Yes
• Ships With:
  • Pressure Sensor – 100 psi
  • Pressure Gauge Wiring Harness (3-Wire Cable)
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks

HOW TO USE:

1. Mount the Gauge: Locate a suitable 2.67″ (68mm) diameter opening in your dashboard or instrument panel and securely mount the Speedhut oil pressure gauge.
2. Install the Pressure Sensor: Identify the appropriate port on your engine’s oil system (typically where the factory oil pressure sensor is located or an auxiliary port). Install the included 100 PSI pressure sensor, ensuring it is properly sealed.
3. Connect the Sensor Wiring: Using the provided Pressure Gauge Wiring Harness (3-Wire Cable), connect the three wires to the corresponding terminals on the pressure sensor and the back of the gauge. Refer to the wiring diagram provided with the product for correct connections.
4. Connect Power and Lighting: Using the 3 ft Power & Lighting Harness, connect the power wire (typically red) to a switched 12V power source in your vehicle. Connect the ground wire (typically black) to a suitable ground point. If your gauge has backlighting features, connect the lighting wire (often orange or blue) to your vehicle’s lighting circuit or a dimmer switch.
5. Verify Connections: Double-check all wiring connections to ensure they are secure and correct.
6. Start Your Engine: With all connections made, start your vehicle’s engine.
7. Observe Gauge Readings: Monitor the oil pressure reading on the gauge to ensure it is functioning correctly. Check that the warning light illuminates when the oil pressure drops significantly.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ 100 PSI OIL PRESSURE GAUGE W/ WARNING (R25-OP3-REV):

• Early Problem Detection: Allows you to identify low oil pressure conditions quickly, potentially preventing severe engine damage and costly repairs.
• Enhanced Engine Monitoring: Provides a clear and accurate visual representation of your engine’s oil pressure, offering more detailed information than a basic factory warning light.
• Increased Driving Confidence: Knowing your oil pressure is within the safe operating range provides peace of mind, especially during demanding driving conditions.
• Performance Optimization: For enthusiasts and performance drivers, accurate oil pressure readings are crucial for understanding engine behavior and ensuring optimal lubrication.
• Easy Installation: The included wiring harnesses and sensor simplify the installation process.

FEATURES:

• Clear 0-100 PSI scale for fast oil pressure readings
• High-performance 3-wire military-grade transducer ensures accuracy
• Integrated warning light signals low-pressure conditions
• 2 5/8″ gauge size fits standard aftermarket mounts
• Includes dedicated harnesses for both sensor and power/lighting
• Durable components designed for tough automotive use
