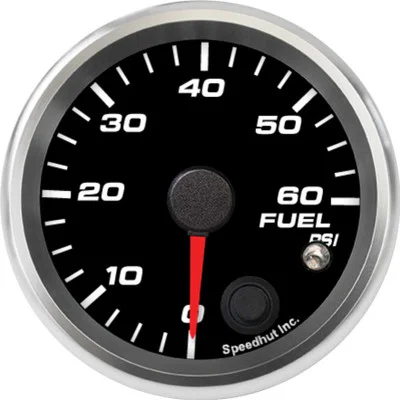

Speedhut 2-5/8″ 0-60 PSI Fuel Pressure Gauge w/ Warning (R25-FP3-REV)

Description

The Speedhut 2-5/8″ 0-60 PSI Fuel Pressure Gauge w/ Warning (R25-FP3-REV) is a high-performance analog gauge engineered to provide precise monitoring of your vehicle’s fuel pressure. It offers real-time readings from 0 to 60 PSI, enabling enthusiasts and professionals alike to track fuel system performance. A standout feature is the built-in, adjustable warning light that can be set to alert for high or low-pressure conditions, helping prevent engine damage. The gauge includes a 3-Wire Military Grade Transducer for consistent readings, and installation is made easy with included wiring harnesses and a durable 100 PSI sensor.

KEY FEATURES AND BENEFITS:

• Accurate Fuel Pressure Monitoring: Displays 0-60 PSI range for performance and safety.
• Integrated Warning Light: Set custom pressure thresholds for immediate alerts.
• Military-Grade Transducer: Ensures consistent and precise pressure data.
• Simple Installation: Includes wiring harnesses for easy setup.
• Durable Sensor: 100 PSI rated for reliable performance and longevity.

SPECIFICATIONS:

• Gauge Type: Pressure Gauge
• Gauge Subtype: Fuel Pressure Gauge
• Range: 0-60 PSI
• Size: 2 5/8 inch
• Hole Size: 2.67 inches (68mm)
• Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
• Warning Light: Yes
• Ships With:
• Pressure Gauge Wiring Harness (3-Wire Cable)
• 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
• Pressure Sensor – 100 psi

HOW TO USE:

1. Mount the Gauge: Install the 2-5/8″ gauge securely in your preferred location for optimal visibility.
2. Connect the Wiring Harness: Attach the included 3-wire cable to the gauge’s rear connector.
3. Connect the Power and Lighting Harness: Link the power and lighting harness to the vehicle’s power, ground, and lighting circuits using the wiring diagram.
4. Install the Pressure Sensor: Thread the 100 PSI sensor into the chosen fuel system point using a 1/8″ NPT thread or adapter.
5. Connect the Sensor Wiring: Secure the sensor wires to the matching wires on the gauge harness, ensuring proper insulation.
6. Set the Warning Light (Optional): Use the instructions to configure high/low pressure alerts via gauge controls.
7. Verify Operation: Start the vehicle and observe the gauge to confirm accurate readings and functional warning alerts.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ 0-60 PSI FUEL PRESSURE GAUGE W/ WARNING (R25-FP3-REV):

• Real-Time Monitoring: Offers immediate visual feedback on fuel pressure conditions.
• Damage Prevention: Helps detect pressure anomalies before they impact engine performance.
• Enhanced Driving Awareness: Warning light alerts drivers to pressure issues even during high focus situations.
• Reliable Data: Military-grade transducer ensures dependable fuel pressure readings.
• Easy Installation: Included harnesses and sensor simplify setup for all user levels.

FEATURES:

• Clear Analog Display: Easy-to-read needle provides fast pressure assessment.
• Configurable Alert System: Customizable high and low pressure warning points.
• High-Accuracy Sender: Utilizes a durable 3-wire military-grade transducer.
• Broad Sensor Capability: 100 PSI rated sensor handles pressure peaks with confidence.
• Simplified Wiring: Preconfigured harnesses support quick and clean installation.
• Standard Mounting Size: Compatible with common gauge pods and panels.
