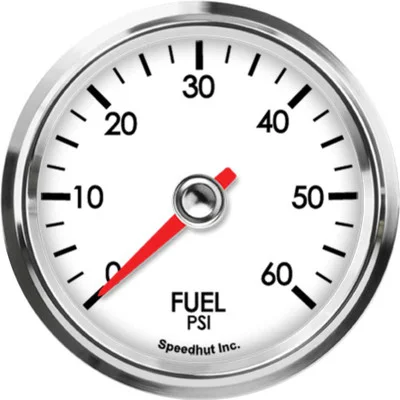

Speedhut 2-5/8″ 0-60 PSI Fuel Pressure Gauge (L25-FP3-LEG)

Description

The Speedhut 2-5/8″ 0-60 PSI Fuel Pressure Gauge (L25-FP3-LEG) is a precision monitoring tool crafted for automotive enthusiasts and professionals who need accurate fuel pressure data. It features a 0–60 PSI analog display that ensures you can keep track of your fuel system’s health in real-time. With a robust build, LED backlighting, and a military-grade 3-wire transducer, this gauge is engineered for both reliability and ease of installation. Whether you’re tuning your vehicle or simply maintaining performance, this fuel pressure gauge delivers consistent and dependable readings that help prevent costly fuel system issues.

KEY FEATURES AND BENEFITS:

• 0–60 PSI Measurement Range: Enables precise monitoring of your vehicle’s fuel pressure for improved engine performance.
• Military-Grade Transducer: High-performance 3-wire sender ensures reliable and accurate pressure readings.
• Complete Wiring Kit: Comes with both the Pressure Gauge Wiring Harness (3-Wire Cable) and a 3 ft Power & Lighting Harness.
• Easy Installation: Designed to fit a 2.67-inch (68 mm) diameter hole for hassle-free mounting.
• LED Backlighting: Ensures clear visibility during night or low-light driving conditions.
• Early Problem Detection: Helps identify failing fuel components before they cause damage or performance loss.

SPECIFICATIONS:

• Gauge Size: 2-5/8 inches (66.7 mm)
• Range: 0–60 PSI
• Sender Type: 3-Wire Military Grade Transducer (Performance)
• Mounting Hole Size: 2.67 inches (68 mm)
• Included:
  • Pressure Gauge Wiring Harness (3-Wire Cable)
  • Pressure Sensor – 100 PSI
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks

HOW TO USE:

1. Mount the Gauge: Select a location on the dashboard or panel and create a 2.67-inch (68 mm) hole. Insert and secure the gauge.
2. Install the Pressure Sensor: Identify an accessible port on the fuel system. Install the included 100 PSI sensor using appropriate fittings or adapters (not included).
3. Connect the Sensor Wiring: Attach the 3-wire cable from the sensor to the corresponding terminals on the rear of the gauge.
4. Connect Power and Ground: Use the 3 ft Power & Lighting Harness to link the gauge to a 12V power source, ground, and optional lighting circuit.
5. Verify Connections: Check all wiring for secure and correct connections.
6. Start Your Vehicle: Power up the engine and observe the fuel pressure gauge. Ensure readings align with expected specifications.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ 0-60 PSI FUEL PRESSURE GAUGE (L25-FP3-LEG):

• Fuel System Monitoring: Real-time pressure data helps identify pump, filter, or regulator issues before they escalate.
• Performance Optimization: Ensures optimal fuel delivery for improved combustion, power, and efficiency.
• Reliable Readings: Trusted sensor technology delivers consistent, accurate performance.
• Cost-Saving Maintenance: Early detection of fuel system faults reduces the risk of costly repairs.
• Simple Installation: Pre-packaged harnesses reduce setup time and complexity.

FEATURES:

• Displays fuel pressure clearly across a 0–60 PSI range.
• Equipped with a rugged 3-wire military-grade pressure transducer.
• LED backlighting improves nighttime gauge visibility.
• Standard 2-5/8″ diameter fits common gauge pods and mounting solutions.
• Comes with required pressure sending unit and all necessary wiring.
• Engineered for reliable use in harsh automotive environments.
