Speedhut 2-5/8″ 0-150 PSI Pressure Gauge (L25-P1-LEG)

Description

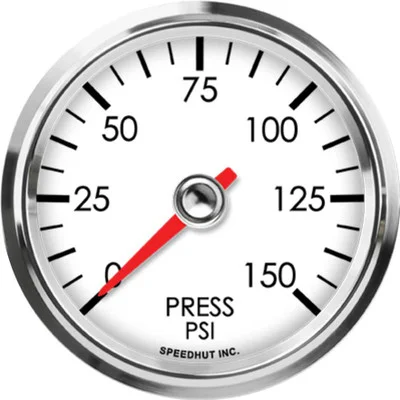

The Speedhut 2-5/8″ 0-150 PSI Pressure Gauge (L25-P1-LEG) is engineered for accurate and dependable pressure monitoring in various applications. This gauge features a precise 0-150 PSI measurement range and utilizes a high-quality 3-wire military-grade transducer to deliver consistent performance. Its 2 5/8 inch size makes it suitable for standard gauge mounting locations with a required hole size of 2.68 inches (68mm). Designed for systems where precise pressure readings are critical, this gauge provides the information you need in standard PSI units.

KEY FEATURES AND BENEFITS:

• Accurate Pressure Monitoring: Provides precise readings of pressure within the 0-150 PSI range, allowing for effective system management.
• High-Performance Transducer: Utilizes a 3-wire military-grade transducer, ensuring reliable and consistent pressure measurements.
• Standard Sizing: The 2 5/8 inch gauge size fits common mounting locations with a 2.68″ (68mm) hole requirement, simplifying installation.
• Complete Wiring Included: Comes with a 3 ft power and lighting harness for LED-lit models and a dedicated pressure gauge wiring harness (3-wire cable) for easy electrical connections.
• Included Pressure Sensor: Ships with a robust 300 PSI pressure sensor, offering accurate readings within the gauge’s range and providing a safety margin.
• Standard Units: Displays pressure readings in standard PSI (pounds per square inch), a widely understood unit of measurement.

SPECIFICATIONS:

• Gauge Type: Pressure Gauge
• Range: 0-150 psi
• Size: 2 5/8 inch
• Hole Size: 2.68″ (68mm)
• Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
• Units: Standard
• Ships With:
• 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
• Pressure Gauge Wiring Harness (3-Wire Cable)
• Pressure Sensor – 300psi

HOW TO USE:

1. Mount the Gauge: Locate a suitable 2.68″ (68mm) diameter hole in your desired mounting location and securely install the 2-5/8″ pressure gauge.
2. Install the Pressure Sensor: Identify the point in your system where you need to measure pressure and install the provided 300 PSI pressure sensor, ensuring proper sealing.
3. Connect the Sensor Wiring: Using the included pressure gauge wiring harness (3-wire cable), connect the three wires from the sensor to the corresponding terminals on the back of the pressure gauge. Refer to the gauge’s wiring diagram for correct connections.
4. Connect Power and Lighting: Utilize the 3 ft power and lighting harness to connect the gauge to a suitable power source (typically 12V DC) and ground. This harness also powers the LED lighting if the gauge is equipped with it.
5. Verify Connections: Double-check all wiring connections to ensure they are secure and correct before applying power.
6. Power On and Monitor: Once all connections are verified, power on your system. The Speedhut pressure gauge will now display the current pressure reading.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ 0-150 PSI PRESSURE GAUGE (L25-P1-LEG):

• Using the Speedhut 2-5/8″ 0-150 PSI Pressure Gauge provides you with accurate and real-time pressure information, which is crucial for monitoring and maintaining the health and performance of various systems.
• The inclusion of a high-quality military-grade transducer ensures reliable readings, preventing potential issues caused by inaccurate data.
• The straightforward installation process, thanks to the included wiring and sensor, saves time and effort.
• By having a clear and precise display of pressure in standard PSI units, you can easily understand and respond to changes within your system, contributing to safety and optimal operation.

FEATURES:

• Employs a robust 3-wire interface for stable signal transmission from the sensor.
• Designed with a standard 2 5/8″ bezel diameter for universal mounting compatibility.
• Requires a precise 68mm (2.68″) opening for a secure and snug fit.
• Provides pressure readings in widely recognized PSI units for easy interpretation.
• Includes a generously rated 300 PSI sensor, offering operational headroom.
• Comes with a dedicated wiring harness for the pressure sensor, simplifying the electrical connection.
• Features a separate power and lighting harness, facilitating easy integration of illumination if present.
