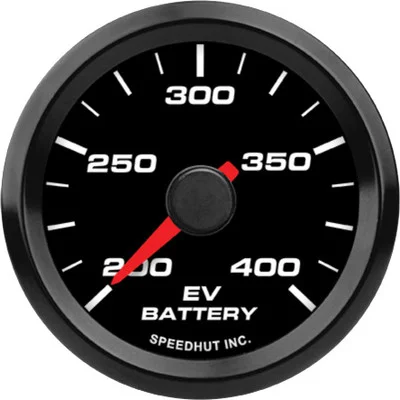

Speedhut 2-1/16″ EV AEM 200-400V Battery Gauge (FAE2-HV2-EV)

Description

The Speedhut 2-1/16″ EV AEM 200-400V Battery Gauge (FAE2-HV2-EV) is specifically engineered to provide essential insights into the electrical health of your electric vehicle. Designed for systems operating between 200 and 400 volts and optimized for seamless integration with AEM control units via CAN-Bus communication, this gauge delivers accurate and timely monitoring of your EV’s battery voltage. This allows you to make informed decisions regarding charging and overall vehicle maintenance, contributing to the longevity and optimal performance of your electric vehicle’s battery system.

KEY FEATURES AND BENEFITS:

• Real-time monitoring of battery voltage within the 200-400 volt range.
• CAN-Bus communication: Utilizes 500K baud rate for accurate data transmission.
• Compatibility: Seamlessly integrates with AEM control units for reliable performance.
• Enables optimization of charging practices for enhanced battery life.
• Easy installation: Fits in a 2.10 inch (54mm) mounting hole.

SPECIFICATIONS:

• Gauge Type: EV High Voltage Battery Gauge
• Voltage Range: 200-400 Volts
• Signal Type: CAN-Bus (500K baud rate)
• Size: 2 1/16 inch (52mm)
• Mounting Hole Size: 2.10 inches (54mm)
• Included:
• EV CAN Harness
• 3 ft Power & Lighting Harness
• EV CAN Jumper Harness

HOW TO USE:

1. Connect the EV CAN Harness: Attach it to your EV’s CAN-Bus network following the vehicle and AEM documentation.
2. Power the Gauge: Use the 3 ft Power & Lighting Harness to connect to a suitable power source and lighting circuit.
3. Utilize the EV CAN Jumper Harness: Use it as needed to assist with the CAN-Bus connection, referencing proper wiring diagrams.
4. Mount the Gauge: Secure the unit into a 2.10 inch (54mm) hole with appropriate mounting hardware.
5. Monitor Readings: Once powered, observe the real-time battery voltage to ensure it remains within the 200-400V range.

BENEFITS OF USING THE SPEEDHUT 2-1/16″ EV AEM 200-400V BATTERY GAUGE (FAE2-HV2-EV):

• Offers critical real-time monitoring of your EV’s high-voltage battery system.
• Helps identify voltage fluctuations early, reducing risk of component damage.
• Promotes optimal charging habits and extends battery lifespan.
• Enhances the efficiency and reliability of electric vehicle operation.
• Provides clear insight into one of the most vital performance metrics of your EV.

FEATURES:

• Instant voltage readout from EV systems operating between 200-400V.
• Compact design: 2 1/16 inch size supports flexible dashboard placement.
• EV CAN Harness: Ensures seamless connection to your vehicle’s data network.
• Power & Lighting Harness: Provides power and illumination functionality.
• EV CAN Jumper Harness: Facilitates extended or multiple CAN-Bus device connections.
