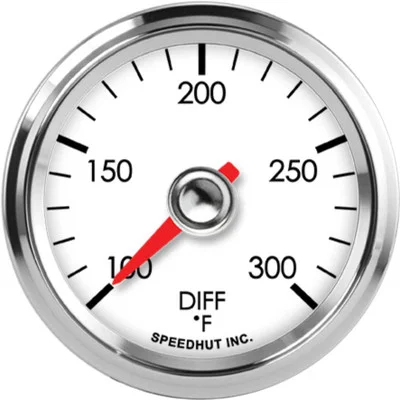

Speedhut 2-1/16″ 100-300F Diff Temp Gauge (L2-DT1-LEG)

Description

The Speedhut 2-1/16″ 100-300F Diff Temp Gauge (L2-DT1-LEG) provides accurate monitoring of your vehicle’s differential fluid temperature within a range of 100 to 300 degrees Fahrenheit. This is crucial for ensuring the longevity and optimal performance of your differential, especially under demanding conditions. The gauge features a performance-oriented 2-wire temperature sender, which offers reliable and responsive temperature readings. It is a standard 2 1/16 inch (52mm) size, making it compatible with various gauge mounting solutions. The kit includes all necessary wiring harnesses and the temperature sensor, simplifying the installation process. While it does not have a built-in warning light, the clear and precise display allows drivers to easily monitor temperature levels and take proactive measures if overheating occurs.

KEY FEATURES AND BENEFITS:

• Accurate Monitoring: Measures differential fluid temperature from 100°F to 300°F.
• Performance Sender: High-performance 2-wire temperature sender for quick, accurate readings.
• Universal Fit: Standard 2-1/16″ (52mm) size fits common gauge pods and panels.
• Complete Kit: Includes gauge, temperature sensor, wiring harness, and power/lighting harness.
• Clear Display: Easy-to-read analog face with LED backlighting for visibility in all conditions.
• No Built-in Warning Light: Drivers must monitor gauge manually to detect overheating.

SPECIFICATIONS:

• Gauge Type: Temperature Gauge
• Gauge Subtype: Differential Temperature Gauge
• Temp Sender Type: 2-Wire Temp Sender (Performance)
• Range: 100-300 F
• Size: 2 1/16 inch
• Hole Size: 2.062 inches (52mm)
• Standard or Metric: Standard
• Warning Light: No
• Ships With:
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
  • Temperature Gauge Wiring Harness (2-Wire Cable)
  • Speedhut Temperature Sensor

HOW TO USE:

1. Mount the Gauge: Choose a suitable location in your vehicle and drill a 2.062-inch (52mm) hole. Securely mount the Speedhut Differential Temperature Gauge in this opening.
2. Install the Temperature Sensor: Locate the appropriate port on your vehicle’s differential housing. Install the included Speedhut Temperature Sensor into this port. Ensure it is properly tightened for an accurate reading.
3. Connect the Sensor Wiring: Connect the 2-wire cable from the included Temperature Gauge Wiring Harness to the terminals on the installed Speedhut Temperature Sensor.
4. Connect the Gauge Wiring: Connect the other end of the Temperature Gauge Wiring Harness to the corresponding terminals on the back of the Speedhut Temperature Gauge.
5. Connect the Power and Lighting Harness: Connect the 3 ft Power & Lighting Harness to the designated power and ground terminals on the back of the gauge. Connect the other end to a suitable power source in your vehicle (typically a switched 12V source) and a reliable ground. This harness also powers the gauge’s LED backlighting.
6. Verify Functionality: Once all connections are made, start your vehicle and observe the gauge. As the differential fluid warms up, the gauge should display an increasing temperature reading. Ensure the backlighting is also functioning correctly.

BENEFITS OF USING THE SPEEDHUT 2-1/16″ 100-300F DIFF TEMP GAUGE (L2-DT1-LEG):

• Proactively monitor differential temperature to prevent damage from overheating.
• Extends the life of your vehicle’s differential and fluid by staying within safe temperature limits.
• Particularly useful for towing, off-road, or high-load driving scenarios.
• Provides instant feedback on differential performance through precise and reliable readings.
• Includes a high-performance sender for accurate, fast response data.

FEATURES:

• Reads differential fluid temperature from 100°F to 300°F with high accuracy.
• High-performance 2-wire temperature sender ensures quick response and reliable data.
• Analog display with LED backlighting for visibility in all conditions.
• Standard 2-1/16″ (52mm) gauge size compatible with most pods or dash mounts.
• Includes full wiring and sensor harnesses for a straightforward installation process.
• Provides continuous, real-time temperature feedback for informed vehicle management.
• Durable design built to endure automotive environments.
