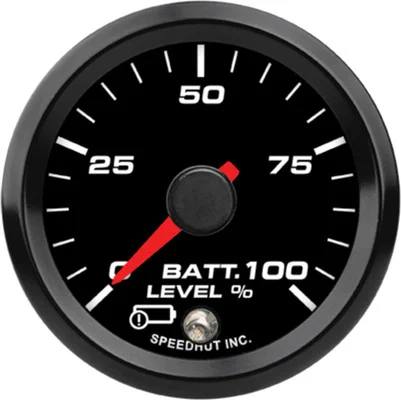

Speedhut 2-1/16″ 0-100% EV Battery Level Gauge w/Warning (FOR2-SC1-EV)

Description

The Speedhut 2-1/16″ 0-100% EV Battery Level Gauge w/Warning (FOR2-SC1-EV) is a vital tool for electric vehicle owners seeking real-time insights into their battery’s state of charge. It delivers a clear visual indication of battery levels from 0% to 100%, helping users manage charging and range more effectively. With its CAN-Bus connection at 500K baud and a low battery warning at 15%, it enhances vehicle safety and monitoring precision. Designed for a seamless installation process, this compact and highly compatible gauge is an intelligent addition to any EV dashboard setup.

KEY FEATURES AND BENEFITS:

• Real-time Monitoring: Displays accurate state of charge (SOC) from 0% to 100% continuously.
• Low Battery Warning: Activates an alert light when battery level drops below 15% to notify the driver.
• CAN-Bus Integration: Communicates over the EV’s CAN-Bus system at 500K baud for reliable data transfer.
• Compatibility: Works with popular EV control units like Orion, AEM, Zero EV, and Thunderstruck.
• Compact Size: 2-1/16 inch (52mm) diameter fits standard gauge placements; requires a 2.10″ (54mm) hole.
• Included Harnesses: Comes with a 3 ft Power & Lighting Harness, an EV CAN Jumper Harness, and an EV CAN Harness.
• Enhanced Reliability: Supports effective battery management, helping extend battery life and reduce range anxiety.

SPECIFICATIONS:

• Gauge Type: EV Battery Level
• Signal Type: CAN-Bus (500K baud rate)
• Range: 0-100%
• Size: 2-1/16 inch (52mm)
• Hole Size: 2.10″ (54mm)
• Included: 3 ft Power & Lighting Harness, EV CAN Jumper Harness, EV CAN Harness

HOW TO USE:

• Mount the Gauge: Install into a 2.10″ (54mm) hole in your vehicle’s dashboard and secure it with the provided mounting hardware.
• Connect Power Harness: Attach the 3 ft Power & Lighting Harness to the appropriate terminals and connect to your vehicle’s power and ground sources.
• Connect CAN-Bus Harness: Use the EV CAN Jumper and CAN Harness to link the gauge to your EV’s CAN-High and CAN-Low wires.
• Verify System Compatibility: Ensure your control unit supports a 500K baud CAN-Bus communication protocol.
• Test Operation: Turn on the vehicle and confirm accurate SOC readings on the gauge.
• Confirm Warning Light: Simulate a low battery condition to check that the warning activates at 15% charge.

BENEFITS OF USING THE SPEEDHUT 2-1/16″ 0-100% EV BATTERY LEVEL GAUGE W/WARNING (FOR2-SC1-EV):

• Improves driver awareness with precise battery level feedback, helping reduce range-related stress.
• Low battery warning ensures timely charging, minimizing the risk of full depletion.
• Easy integration with compatible EV systems simplifies installation and enhances accuracy.
• Enables better trip planning and charging station management.
• Enhances overall EV safety by monitoring a key performance parameter.
• Compact size supports flexible mounting options with minimal dashboard alteration.

FEATURES:

• Clearly shows battery state of charge using a 0-100% analog display.
• Built-in warning light alerts driver when charge drops below 15%.
• Interfaces via 500K baud CAN-Bus protocol for accurate data reporting.
• Designed to work with major EV control systems like Orion and Thunderstruck.
• Fits into a standard 2.10″ (54mm) dashboard hole with minimal effort.
• Pre-configured wiring harnesses included for simplified installation.
