Description

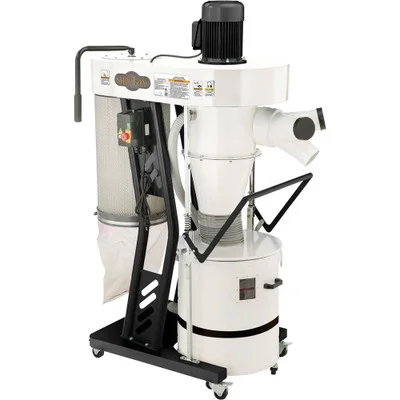

Shop Fox 2 HP Portable Cyclone Dust Collector 1023 CFM Two-Stage Filtration System (W1868) provides the efficiency of a 2-stage cyclone system with the portability of a single-stage dust collector.
Featuring an impressive 1023 CFM and up to 10.9″ of static pressure, this Shop Fox W1868 dust collector creates a vortex of incoming air that extracts heavy wood chips and large dust particles into a plastic-bag-lined 20-gallon steel drum. The remaining fine dust travels past the 13″ aluminum impeller, is caught by a canister filter, and then deposited in a separate plastic collection bag.
- Specifications and Dimensions
- Motor: 2 HP, 220V, 3450 RPM, 9A
- Intake hole size: 7″
- Impeller: 13″ welded steel
- Collection drum size: 20 gallons
- Air suction capacity: 1023 CFM
- Static pressure: 10.9″
- Filter Surface Area: 28.1 sq. ft.
- Filtration Rating: 99.9% at 1 Micron
- Approx. shipping weight: 397 lbs
- Key Features and Benefits
- Efficient 2-stage cyclone system for superior dust collection.
- Portable design for easy movement around the workshop.
- High suction capacity with 1023 CFM and 10.9″ static pressure.
- Spun-bond polyester filter captures 99.9% of particles to 1 micron in size.
- Easy-to-clean filter with paddle brushes to maintain high CFM.
- 20-gallon steel collection drum with quick-release handle for easy disposal.
- Remote Start/Stop for convenient operation.
- Swivel casters for easy mobility.
