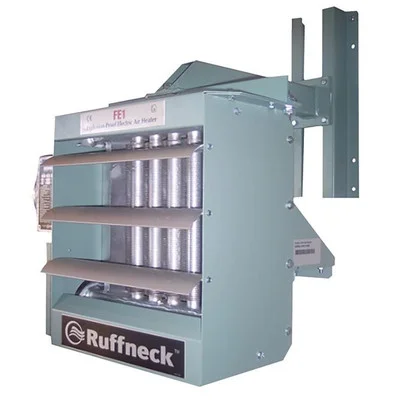

Ruffneck FX5/FX6 16″ Frame Wall Mounting Kit (9731)

Description

The Ruffneck FX5/FX6 16″ Frame Wall Mounting Kit (9731) is engineered to provide a secure and stable mounting solution for Ruffneck™ FX Series Explosion-Proof Forced Air Heaters. Specifically designed for FX5 and FX6 models with a 16-inch frame, this kit ensures these critical heating units are properly installed in industrial and hazardous environments. Its robust construction supports fixed placement, allowing for efficient space utilization and dependable heater operation. This mounting kit is an essential component for integrating your Ruffneck™ heaters into permanent building structures with substantial walls.

KEY FEATURES AND BENEFITS:

• Dedicated Compatibility: Precisely fits Ruffneck™ FX5 and FX6 series heaters with a 16-inch frame, ensuring a perfect match and reliable connection.
• Secure Wall Attachment: Designed for bolting or welding to structural steel or concrete walls, offering a fixed and stable installation.
• High Load Capacity: Safely supports suspended heater weights up to 300 lbs (136 kg), accommodating the requirements of industrial heaters.
• Durable Construction: Manufactured from steel with a wet-applied enamel paint finish, providing resistance to environmental factors and long-term service.
• Optimized Heater Placement: Facilitates elevated mounting of heaters, which can improve heat distribution and maintain necessary clearances from the floor.

SPECIFICATIONS:

• Model Number: 9731
• Material: Steel with wet-applied enamel paint
• Maximum Suspended Weight: 300 lbs (136 kg)
• Compatibility: Ruffneck™ FX5 and FX6 Series Explosion-Proof Forced Air Heaters (16-inch frame only)
• CSA Certification Requirement: Heaters must be mounted at a minimum height of 7.9 ft (2.4 m) above the floor.
• Warranty: 1-year limited warranty

HOW TO USE:

1. Assess Wall Strength: Before installation, verify that the wall or structural element where the kit will be mounted provides adequate support for the combined weight of the mounting kit and the Ruffneck™ heater (up to 300 lbs / 136 kg).
2. Position the Kit: Determine the desired mounting location and height. Ensure sufficient clearance for heater maintenance, including fan/motor replacement, and at least 2 inches of space behind the fan motor for cooling.
3. Secure the Kit: Attach the wall mounting kit to the structural steel or concrete wall using appropriate bolts or by welding. Ensure all connections are secure and stable. For portable or transportable applications, use lock washers and provide additional structural reinforcement to withstand potential impacts and load conditions.
4. Mount the Heater: Carefully lift the Ruffneck™ FX5 or FX6 heater into position. Suspend the heater from the top of its cabinet by screwing two or four 5/8″ NC bolts into the internally threaded holes provided on the heater.
5. Final Checks: Confirm that the heater is securely fastened to the mounting kit and that all connections are tight. For steam service heaters, ensure the inlet is positioned above the outlet and that the core can drain towards the outlet for proper function.

BENEFITS OF USING RUFFNECK FX5/FX6 16″ FRAME WALL MOUNTING KIT (9731):

• Enhanced Safety: Provides a stable and secure installation, reducing the risk of heater displacement in demanding industrial environments.
• Space Optimization: Allows for elevated mounting of heaters, freeing up floor space and improving overall layout efficiency.
• Reliable Operation: Ensures the heater is held firmly in place, contributing to consistent and uninterrupted performance.
• Long-Term Durability: Constructed from steel with a protective enamel finish, offering resilience against wear and tear in harsh conditions.
• Professional Installation: Designed to facilitate a clean and professional appearance for industrial heater setups.

FEATURES:

• Specifically engineered “Z sections” for added structural rigidity.
• Designed to securely attach to substantial wall structures.
• Facilitates upright or other specific heater orientations, depending on service type (e.g., steam).
• Allows for installation at typical industrial mounting heights (e.g., 7.5 ft to 12 ft).
• Integrated design for seamless compatibility with Ruffneck™ FX5/FX6 series heaters.
