Description

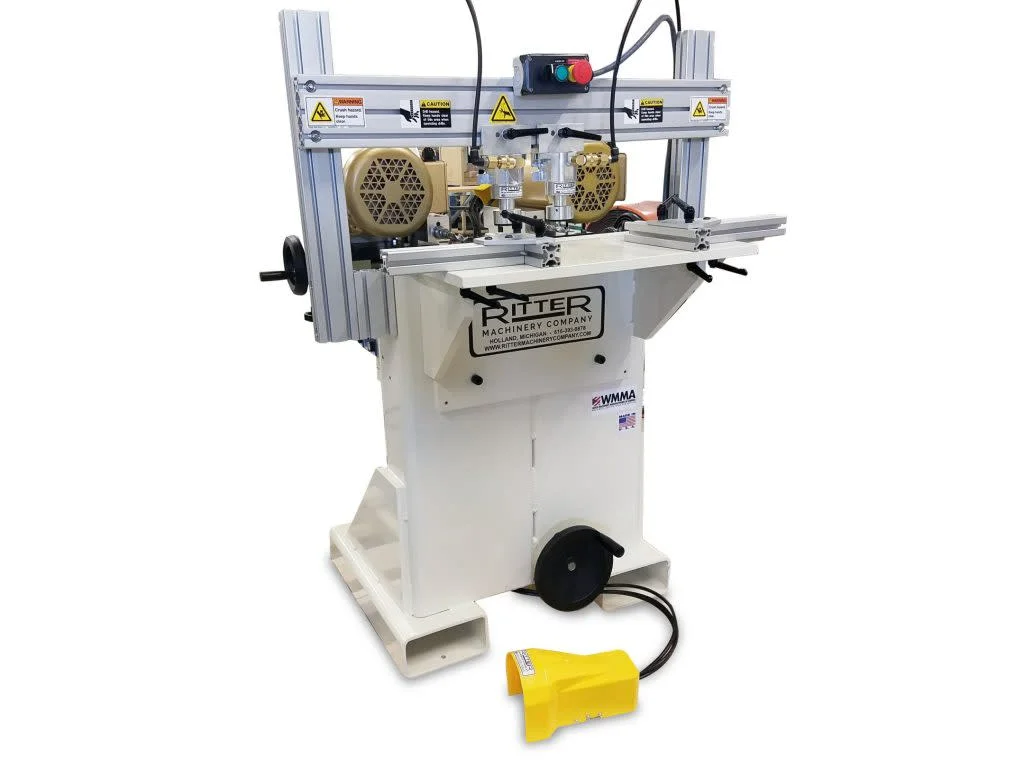

The RITTER R8043 is built for rigorous, high-output production environments where accuracy, speed, and durability are paramount. Equipped with four spindles and reinforced spindle bearings, this machine eliminates drift and fatigue during extended use. Adjustable spindle centers and simplified operator controls make it an ideal solution for cabinetmakers, furniture manufacturers, and production shops requiring flexible, reliable boring setups.
Key Features & Benefits
High-Performance Boring for Demanding Applications
• Engineered for heavy-duty production boring with high throughput
• Dual 1 HP TEFC spindle motors provide continuous power and durability
• Belt-driven system maintains consistent 3,450 RPM for clean, reliable bores
• Multiple bearing-supported spindles reduce drift and extend machine life
Versatile Boring Capabilities
• Spindle centers adjustable from 1-1/4″ to 11″ to support a wide range of boring patterns
• (2) Double spindle gear heads with 1″ centers provide four total boring spindles
• Compatible with various cabinet, furniture, and joinery configurations
Streamlined Operation & Setup
• Front-mounted spindle height adjustment simplifies operation and speeds up setup
• Foot-pedal boring cycle allows for hands-free material positioning and control
• (2) end boring T-fences and a right-angle tee fence deliver precise, square alignment
• Adjustable clamp cylinder height supports different material dimensions
Precision Engineering for Consistent Output
• Fixed table height supports manual and electronic stop systems for repeatable setups
• (2) 3.00″ bore clamping cylinders securely stabilize the workpiece
• Spring-loaded fence system ensures repeatable panel alignment
• Integrated 1/4″ NPT filter, regulator, and lubricator protect and prolong pneumatic performance
