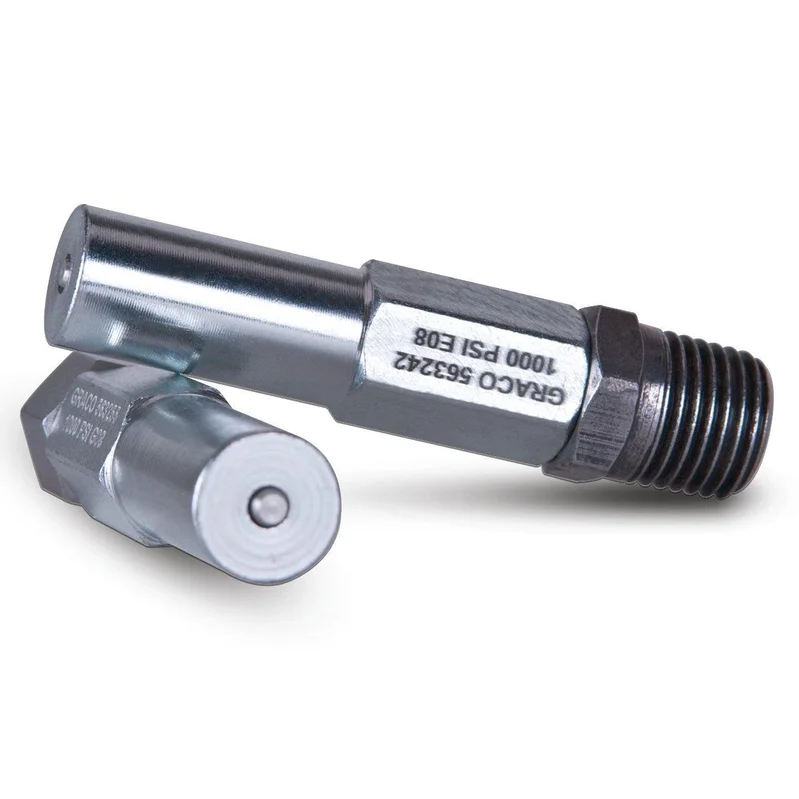

Description
Easy information on blocked lines, high system pressure or blocked bearings.
- Provides quick troubleshooting tool with visual indication
- No tools for reset or parts to replace after indication
- Easy information on blocked lines, high system pressure or blocked bearings
- Lubriquip part number 509-932-650
UPC Product: 00633955331785 Family Code: FAMCPT Unit of Measure: EA Height: .55 IN |1.397 CM Length: .55 IN |1.397 CM Width: 2.35 IN |5.969 CM Volume: 0 FT3 |0 M3 Chargeable Weight: .11 LBS | .05 KG
Technical Specifications
| Application | On-Road Vehicles, Off-Road Equipment, Compressor Equipment |
|---|---|
| Compatible Material | Oil, Grease |
| Connection Size (in) | 0.125 |
| Indicator Type | Reset Indicator with Memory |
| Maximum Working Pressure (bar) | 172 |
| Maximum Working Pressure (kPa) | 17200 |
| Maximum Working Pressure (psi) | 2500 |
| Thread Type | NPSF |
| Type | Reset Indicator |
| Maximum Working Pressure (MPa) | 17 |
| Model | Trabon |
| For Use With | MSP, MXP, and MHH Divider Valves |
