Description

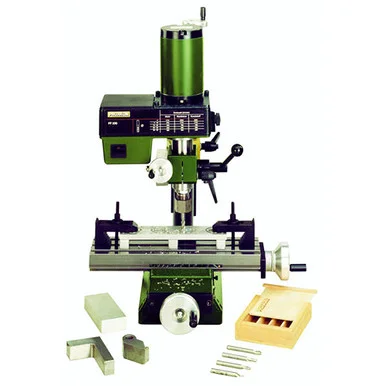

The Micro Miller FF 230 is a small, accurate milling system used to mill, drill, and countersink steel, cast iron, aluminum, brass and plastic.
The headstock swivels through 360 degrees, indicated on a scale. Height is adjusted via a zero adjustable handwheel, also used as fine feed when milling. One revolution equals .04″ travel, 1 division equals .002″. The quill and headstock may be locked in position, essential when milling. The powerful permanent magnet motor drives via a poly-v belt, yielding high torques, especially at lower speeds. Collets of .24″-.31″ and .4″ are included. The solid table is T slotted to .47″ X .24″ X .2″ (the MICROMOT norm).
Specifications:
- Speeds: 280, 550, 870, 1,250, 1,700, 2,500 rpm
- Table Size: 10.6″ X 3.15″
- Column Size: 1.4″ diameter X 15.75″ long
- X-Y Travel: 6.7″ X 2.6″
- Maximum Height: 7.1″
- Maximum Depth: 5.1″
- Overall Height: 20″
- Volts: 110 – 120V AC 60 Hz
- Weight: 60 oz
