Powermatic SLR12 Straight Line Rip Saw

Description

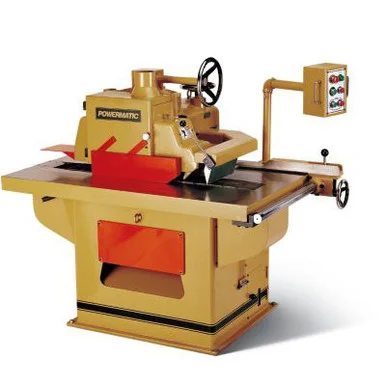

Powermatic SLR12 Straight Line Rip Saw

The SLR12 Straight Line Rip Saw is designed for high-demand wood production environments that require power, precision, and long-term reliability. Whether you’re working with face frames, long runs, or full production, the SLR12 has you covered. Constructed with a full cast-iron body, this 12″ rip saw offers exceptional stability and vibration control, which are critical for achieving true straight-line cuts in lumber mills, furniture shops, and construction manufacturing facilities.

Powered by a robust 15HP motor, the SLR12 ensures consistent cutting performance through hardwoods, sheet goods, and heavy stock. The saw includes five stock hold-downs and dual anti-kickback devices, ensuring each board is securely held in place for safe, accurate, and repeatable rips. Its heavy-duty precision rip fence moves along a solid steel guide rail and is micro-adjustable for quick setup.

The SLR12 features caterpillar feed chain blocks made of special-grade cast iron that has been heat-treated and precision-machined. The track operates on hardened “V” way guides, ensuring rigidity and accuracy. To reduce maintenance and extend the machine’s life, the SLR12 is equipped with an automatic conveyor chain oiler with a shutoff control to optimize lubrication and prevent unnecessary waste. Additionally, a 2HP feed motor with variable speed allows you to perfectly match feed rates with your production needs.

Controls for adjusting rip width, cutting depth, and the main and feed motors are conveniently located at the front for quick job changes. The control console can also be swung away to provide more feeding space when needed. With an 18″ rip capacity and a 3-7/8″ depth of cut, the SLR12 effectively handles a wide range of materials and production requirements. Whether you’re processing rough lumber or preparing stock for downstream operations, this machine is built to maximize throughput and accuracy.

Features:

• 12″ main blade supported by a heat-treated arbor for rigidity and support
• Swing-away control box for operator convenience
• Auto-oiler with shut-off control ensures long conveyor chain life
• Full cast-iron construction for rock-solid operation
• Large 18″ rip and 3-7/8″ depth of cut capacities for virtually any job
• Five stock hold-downs with dual anti-kickback devices help prevent stock discharge
• Variable feed speeds to accommodate different type stock

Specs:

• Main motor: 15hp
• Electrical:230/460V, 3-PH
• Pre-wired:230V
• Feed motor:2hp
• Blade dia.:12″
• Arbor dia.:1″
• Blade speed:4,500 RPM
• Feed speed:30-90 FPM, variable
• ripping width:18″
• Cutting depth:3-3/8″
• Table size:35″ x 55″
• Table height:32″
• Dust collection port:4″
• dust collection:600 CFM
• Overall dimensions (L x W x H):62″ x 56″ x 41″
• Shipping weight:2,240 lbs.
• Net weight:2,010 lbs.

Includes:

• Rip fence
• Rip blade, 12″ x 48T
• Tool kit
• Blade wrench
• Auto chain oiler
• Dual anti-kickbacks
• Full coverage guards
