Description

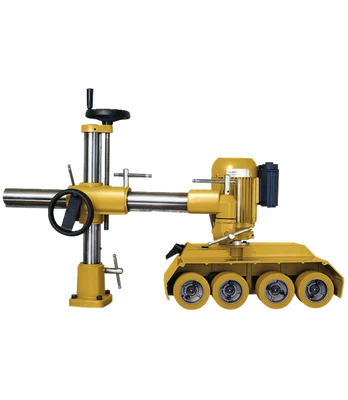

The Powermatic PF-41 Model 1HP 1PH 4 Speed Power Feeder (1790812K) is a heavy-duty stock feeder designed for smooth, accurate, and consistent material feeding in various applications, including woodworking and metalworking. It features a powerful 1 horsepower, continuous-duty motor for extended use and a lubricated gearbox for smooth operation. The roller chain and sprocket design provide positive feeding for a wide range of materials.
KEY FEATURES AND BENEFITS:
- Precise Material Feeding: Exceptional control with fully adjustable support column and universal joints for horizontal, vertical, or angled positioning. Four adjustable feed rates (13, 26, 36, and 72 feet per minute) for optimal material control.
- Durable Construction: Solid cast iron body, base, and universal joints for maximum durability and vibration-free feeding.
- Easy Roller Changes: Rollers can be quickly changed without replacing the entire assembly, saving time and money.
- Versatility: Suitable for woodworking and metalworking applications due to adjustable positioning, multiple feed rates, and robust construction.
SPECIFICATIONS:
- Column Diameter: 2.28 inches
- Distance Between Rollers (adjustable): 5.23 – 5.93 – 5 inches
- Feed Rate: Variable (13, 26, 36, or 72 feet per minute)
- Height: 29.48 inches
- Length: 43.23 inches
- Maximum Roller Height (parallel to table): 8.45 inches
- Motor: 1 horsepower, 1 phase, 115 volts
- Horizontal Movement: 18.07 inches
- Vertical Movement: 9.83 inches
- Number of Speeds: 4
- Roller Size: 4-3/4 inches diameter x 2-1/4 inches wide
- Rotation: Forward/Reverse
- Swing: 360 degrees
- Width: 23.58 inches
HOW TO USE:
- Adjust Position: Use the fully adjustable support column and universal joints to position the feeder horizontally, vertically, or at an angle.
- Set Feed Rate: Select one of the four adjustable feed rates (13, 26, 36, or 72 FPM) based on the material and cutting requirements.
- Change Rollers: Easily replace rollers as needed without replacing the entire assembly, ensuring continuous operation.
BENEFITS OF USING Powermatic PF-41 Model 1HP 1PH 4 Speed Power Feeder (1790812K):
- Precision and consistency in material feeding
- Durable construction for reliable performance
- Time and cost savings with easy roller replacement
- Versatile applications across woodworking and metalworking
FEATURES:
- Powerful 1 horsepower motor for heavy-duty use
- Four adjustable feed rates (13, 26, 36, 72 FPM)
- Adjustable support column with universal joints
- Solid cast iron construction for stability and durability
- Roller chain and sprocket design for positive material feeding
- Forward/reverse rotation capability
- 360-degree swing for versatile positioning
- Overall Dimensions: 43.23″ x 23.58″ x 29.48″
