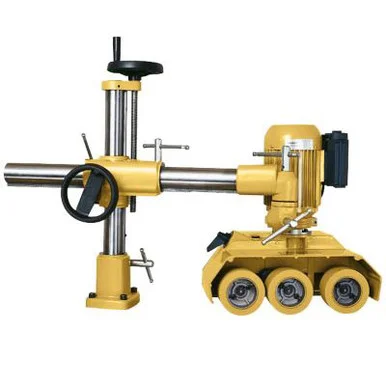

Powermatic PF-33 1HP 3PH 230V Powerfeeder

Description

Powermatic PF-33 1HP 3PH 230V Powerfeeder

These heavy-duty stock feeders are designed for rugged durability. They feature continuous-duty motors that transmit power from the gearbox to the feed roller via roller chains and sprockets, ensuring reliable, efficient feeding for a variety of materials. The fully adjustable support columns are equipped with movable universal joints and sturdy locking mechanisms, allowing the feeder to be securely positioned in horizontal, vertical, or angled feed orientations. Made from solid cast iron, the bodies, bases, and universal joints provide exceptional stability and ensure vibration-free operation. Additionally, the innovative roller system enables cost-effective wheel changes by allowing for the replacement of just the tire, rather than the entire assembly, as required by other units.

Details:

• Roller chain and sprockets provide positive feeding for a variety of work
• Support column is fully adjustable for horizontal, vertical, or angled feeder position
• Feeder body, column bas,e and joints are cast iron for heavy-duty operation
• Rollers can be changed out easily and quickly

Specifications:

• Model #: PF-33
• Brand: Powermatic
• Warranty: 1 Year
• Motor HP: 1HP
• Motor Phase: 3Ph
• Motor Voltage: 230V
• Number of Speeds: 4 speeds
• Range of Speeds (FPM): 13, 26, 33, 66 FPM
• Movement – Vertical (in.): 9.83″
• Feed Rate (FPM): variable
• Movement – Horizontal (in.): 18.07″
