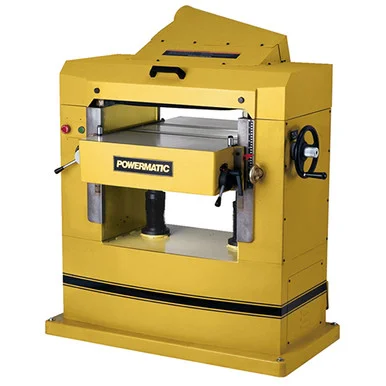

Powermatic 201HH 22″ 7.5HP 3PH Planer

Description

Powermatic 201HH 22″ 7.5HP 3PH Planer

This heavy-duty 1300-pound cast-iron planer offers exceptional rigidity and precision for years of reliable planing. The hinged top provides easy access to the rollers and knives, and it features a 5-inch dust port that easily connects to any dust collection system.

The cutterhead is designed with a helical configuration and 150 four-sided knife inserts, which deliver a superior finish and quieter operation compared to traditional cutterheads. These inserts can be installed without further adjustments. Anti-kickback fingers and a pressure bar are positioned close to the cutterhead to ensure an exceptional finish.

Infeed and outfeed rollers are equipped with roller bearings for enhanced durability, while the sectional infeed roller and chip breaker allow for multiple boards to be planed simultaneously. Adjustable bed rollers make it easy to switch between rough and finish planing. The solid steel outfeed roller is machined with small serrations to provide a smooth finish while ensuring positive feeding.

The two-speed gearbox, with machined detents, allows for quick changes from rough to finish work at the front of the machine. The massive, ribbed cast-iron table is ground-finished and moves smoothly via the handwheel. Powered by a robust 7-1/2 horsepower motor, the 201HH Planer is ideal for small to medium-sized shops with ongoing planing needs.

Details:

• Helical cutterhead with knife inserts provides smoother, quieter cutting and finer finish than conventional systems
• Cast iron 1300 lb. construction for solid performance without vibration
• 2 feed speeds – 20/30 fpm – accommodates rough and fine finish work
• Segmented infeed roller with sectional chipbreaker allows multiple board planing
• Roller bearing-mounted feed rollers for long life
• Adjustable bed rollers allow smooth feeding of rough or finished workpieces
• Oversized cast iron table travels on 2 large lead screws for heavy-duty support
• Dust chute with 5″ port for dust collection

Standard Equipment:

• Dust collection port
• Adjustable foot pads
• Tool kit

Specifications:

• Part Number: 1791268
• Warranty: 1 Year
• Maximum Planing: 22″
• Maximum Planing Thickness: 9-1/4″
• Maximum Depth of Cut: 3/16″
• Minimum Planing Length: 10″
• Cutterhead Diameter: 3-1/4″
• Cutterhead Speed: 4800 RPM
• Feed Rate: 20 and 30 FPM
• Outfeed Roller Diameter: 3″
• Infeed Roller Diameter: 3″
• Number of Knives: 150 Four-sided inserts
• Table Size: 32-1/4″ x 24″
• Dust Port Diameter: 5″
• Dust Collection Minimum CFM Required: 900 cu.ft/min
• Blade Size: 59/100″ x 59/100″ x 1/10″
• Bed Rollers Adjustable from Front: 2″
• Segmented Infeed Roller Diameter: 3″
• Table Height Adjust Manual: 1 Turn = 1/16″
• Table Support: 2 column
• Column Diameter: 2-1/2″
• Maximum Height of Rollers Parallel to Tabletop: 0.05″
• Number of Speeds: 2
• Motor Power: 7-1/2 HP
• Motor Phase: 3 Ph
• Motor Voltage: 230 V
• Model Number: 201HH
• Brand: Powermatic
• Overall Dimensions: 42 x 49 x 59
• Height: 59 inches
• Width: 49 inches
• Length: 42 inches
• Net Weight: 1350 pounds
