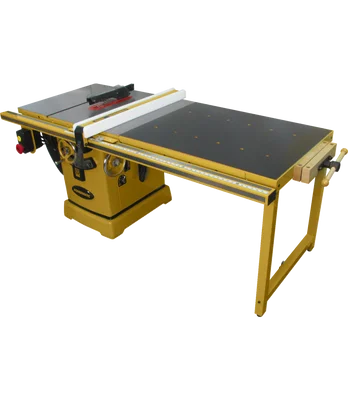

Powermatic 2000B Model 5HP 3PH 50″ Table Saw (PM25350WK)

Description

Elevate your woodworking projects with the Powermatic 2000B Model 5HP 3PH 50″ Table Saw & Workbench (PM25350WK). This heavy-duty cabinet saw boasts a massive cast iron body and a powerful 5-horsepower 3-phase motor for tackling even the most demanding tasks. Its impressive 50-inch rip capacity allows you to handle large sheets of material with ease.

KEY FEATURES AND BENEFITS:

• Precision and Control:
  • Achieve superior cutting accuracy with the oversized cast iron tables and integrated digital readout for bevel cuts.
  • The newly designed arbor lock lever simplifies blade changes, while the quick-release riving knife helps reduce kickback for safer operation.
• Enhanced Efficiency and User Experience:
  • The PM25350WK features a Poly-V drive belt system for quieter operation with minimal vibration and heat build-up.
  • An improved dust collection system with convenient access points keeps your workspace clean.
  • The saw’s wide stance, heavy-duty box trunnion, and retractable hydraulic caster system ensure stability and easy maneuverability within your shop.
• Safety Features:
  • The Powermatic PM25350WK prioritizes safety with a proprietary magnetic interlock switch and a knee-activated stop button for added control.
  • The saw is CSA certified, meeting strict electrical safety standards.

SPECIFICATIONS:

• Blade diameter: 10 inches
• Arbor diameter: 5/8 inches
• Arbor speed: 4500 RPM
• Maximum rip capacity: 50 inches right of blade
• Motor: 5 HP, 3-phase, 230/460V
• Table size: 22 x 30-1/2 inches (with extensions: 42 x 30-1/2 inches)
• Dust collection port: 4 inches

HOW TO USE:

1. Ensure the Powermatic 2000B Model PM25350WK is placed on a stable and flat surface.
2. Connect the saw to a suitable 3-phase electrical supply (230V or 460V).
3. Adjust the blade height and bevel angle using the integrated digital readout and arbor lock lever.
4. Install the appropriate blade for your cutting requirements, ensuring it is securely fastened.
5. Adjust the fence for the desired rip capacity, ensuring it is parallel to the blade.
6. Activate the saw using the magnetic interlock switch and carefully feed the material through the blade, maintaining steady pressure.
7. After completing the cut, allow the blade to come to a complete stop before removing the material.
8. Keep the workspace clean by connecting a 4-inch dust collection hose to the designated port.

BENEFITS OF USING THE Powermatic 2000B Model 5HP 3PH 50″ Table Saw & Workbench (PM25350WK):

• Powerful and Reliable: Features a robust 5 HP motor and a large rip capacity for handling tough materials.
• Precision Cutting: Integrated digital readout and arbor lock lever ensure accurate blade adjustments for precise cuts.
• Enhanced Safety: Magnetic interlock switch and CSA certification provide added safety measures.
• Efficient Dust Collection: Improved dust collection system keeps the workspace cleaner for better visibility and air quality.
• Sturdy Construction: Heavy-duty cast iron body and components ensure durability and stability during operation.

FEATURES:

• Newly Designed Arbor Lock Lever: Simplifies blade changes for efficiency.
• Poly-V Drive Belt System: Provides quieter operation with minimal vibration.
• Wide Stance and Retractable Hydraulic Casters: Ensure stability and easy mobility within the workshop.
• Integrated Digital Readout: For accurate bevel cuts and spindle height adjustments.
• Quick-Release Riving Knife: Helps reduce kickback for safer operation.
