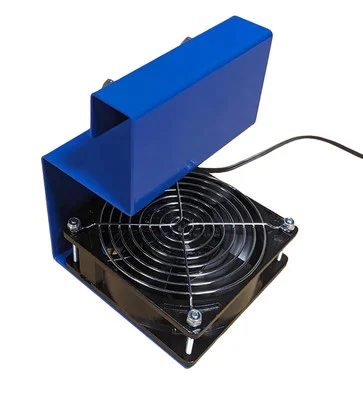

Powerblanket Hot Box Fan (HBFAN-01)

Description

The Powerblanket Hot Box Fan (HBFAN-01) is an essential accessory designed to elevate the performance of Powerblanket Hot Boxes and Bulk Material Warmers. This fan promotes continuous air circulation within the heated enclosure, ensuring uniform temperature distribution and preventing stagnation. It is crucial for maintaining optimal conditions for temperature-sensitive materials in diverse environments, from remote locations to transportation and job sites. By integrating the HBFAN-01, users can achieve more accurate temperature regulation, ensuring materials like paints, roofing compounds, chemicals, epoxies, and resins are kept in prime condition within the desired 100°F to 120°F range, with a variance of only +/- 2°F.

KEY FEATURES AND BENEFITS:

• Universal Compatibility: Works seamlessly with all Powerblanket bulk material heaters and Hot Boxes, adapting to any size or configuration.
• Precise Temperature Control: Enables highly accurate temperature regulation within Hot Boxes, maintaining a tight variance of just +/- 2°F.
• Even Heat Distribution: Ensures uniform warmth throughout the Hot Box, effectively eliminating both hot and cold spots for consistent material treatment.
• Efficiency Enhancement: Operates with low power consumption while providing high efficiency, contributing to energy savings.
• Quiet Operation: Designed to function at a low noise level, ensuring minimal disruption in any work environment.
• Long-Term Reliability: Built for extended use with a significant life expectancy and robust construction.

SPECIFICATIONS:

• Model #: HBFAN-01
• Container Compatibility: All Powerblanket Bulk Material Warmers
• Voltage Range: 100V – 125V
• Wattage: 15W
• Frequency: 60 Hertz
• Rated Speed (RPM): 3000 RPM
• Max Airflow: 104 CFM
• Noise Level: 42 dBA
• Weight: 1.2 lbs
• Bearing system type: Terminal Ball Bearing
• Motor: AC Shaded Pole, Impedance Protected
• Power connection: 2 x Lead Wires, 22 AWG 300mm or Terminals
• Fan frame: Diecast Aluminium, Black Finish
• Ball bearing life expectancy: 70,000 Hours
• Operating temperatures: -4°F (-20° C) to 167° F (75° C)

HOW TO USE:

1. Place Fan: Position the Powerblanket Hot Box Fan (HBFAN-01) inside your Powerblanket Hot Box or Bulk Material Warmer. Ensure it is placed in a location that allows for optimal air circulation.
2. Connect Power: Utilize the provided 2 x lead wires (22 AWG 300mm) or terminals to connect the fan to a compatible power source within the 100V-125V range.
3. Integrate with Controller: If your Hot Box setup includes adjustable thermostatic controllers, integrate the fan’s operation with these controls to achieve and maintain your desired temperature range (typically 100°F to 120°F).
4. Monitor Performance: Once connected and running, the fan will begin circulating air. Monitor your materials to ensure consistent temperature application and observe the elimination of hot or cold spots.
5. Secure Setup: Ensure all connections are secure and the fan is stable within the Hot Box during operation, especially when transporting the unit.

BENEFITS OF USING POWERBLANKET HOT BOX FAN (HBFAN-01):

• Achieve uniform heating for sensitive materials, preventing uneven temperature exposure.
• Optimize the heating process, leading to more efficient energy use within your Hot Box.
• Extend the lifespan and usability of stored or transported bulk materials by maintaining stable temperatures.
• Enhance job site efficiency by ensuring materials are always at their optimal working temperature, regardless of external conditions.
• Reduce material waste by preventing spoilage or degradation due to temperature fluctuations.
• Simplify material handling by providing consistent, ready-to-use temperatures.

FEATURES:

• Compact and lightweight design (1.2 lbs) for easy placement and portability.
• Equipped with an impedance-protected AC shaded pole motor for reliable performance.
• Features a robust diecast aluminum frame with a black finish for durability.
• Designed for continuous use with an expected operational life of 70,000 hours.
• Functions effectively across a broad temperature range from -4°F to 167°F.
• Provides flexible power connection options with lead wires or terminals.
• Contributes to precise temperature adherence, keeping materials within a narrow 2°F variance.
• Enhances overall heating application efficiency and material preservation.
