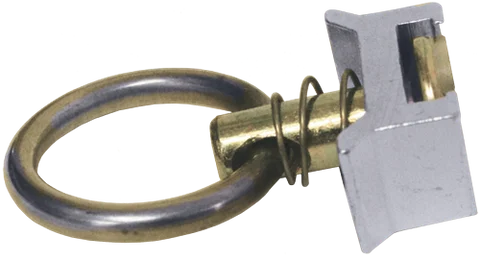

Phoenix USA Single Stud Tie Down (SPSSTD)

Description

The Phoenix USA Single Stud Tie Down (SPSSTD) provides a reliable and adjustable anchor point for a wide range of tie-down applications. Its robust design and ease of use make it an essential component for anyone needing to secure equipment and materials in trailers, truck beds, vans, and more.

KEY FEATURES AND BENEFITS:

• Secure Anchor Point: Provides a dependable point to attach ropes, straps, and other tie-down hardware, ensuring your cargo stays in place during transit.
• High Load Capacity: Vertical load capacity of 4,000 lbs (1814 kg) and horizontal load capacity of 2,000 lbs (907 kg).
• Easy Installation and Adjustment: Features a spring-loaded shank for quick insertion into track slots and simple repositioning.
• Versatile Attachment: Swiveling 180-degree ring offers flexibility in attaching tie-downs from various angles.
• Durable Construction: Made with high-quality steel and a yellow-zinc coated stud for corrosion resistance.
• Compatibility: Designed for Tow-Rax L-track systems and compatible with some O-track circle-style systems.

SPECIFICATIONS:

• Vertical Load Capacity: 4,000 lbs (1814 kg)
• Horizontal Load Capacity: 2,000 lbs (907 kg)
• Material (Ring/Bracket): Likely Steel
• Material (Stud): Steel with Yellow-Zinc Coating
• Ring Swivel: 180 Degrees

HOW TO USE:

1. Locate the Cargo Track: Identify the section of your installed L-track where you want to create an anchor point.
2. Orient the Tie Down: Hold the Phoenix USA Single Stud Tie Down (SPSSTD) with the spring-loaded shank facing downwards.
3. Align with Track Slot: Position the stud over one of the open slots in the L-track.
4. Insert the Stud: Press down firmly on the top of the tie-down to retract the spring-loaded shank.
5. Slide into Position: While pressing down, slide the tie-down along the track to the desired location.
6. Release the Stud: Once in position, release the pressure to lock the shank in place within the track.
7. Attach Tie-Downs: Use the swiveling ring to secure your ropes, straps, bungee cords, or other tie-down devices.
8. To Adjust: Press down on the shank, slide it to a new location, and release to lock it in place.

BENEFITS OF USING THE PHOENIX USA SINGLE STUD TIE DOWN (SPSSTD):

• Enhances cargo security by reducing the risk of shifting or falling during transit.
• Increases versatility by allowing tie-down points to be created wherever needed along the track.
• Saves time with quick installation and adjustment, streamlining the cargo securing process.
• Built for long-lasting reliability with corrosion-resistant coating for durability.
• Optimizes cargo management and organization, preventing damage to your items and vehicle.
• Adaptable tie-down options with a 180-degree swiveling ring for flexible attachment points.

FEATURES:

• Spring-loaded shank for quick insertion and removal from the track.
• 180-degree swiveling attachment ring for versatile tie-down angles.
• Yellow-zinc coated stud for corrosion resistance.
• Designed specifically for L-track systems for a secure fit.
• High vertical load rating of 4,000 lbs for heavy-duty securing.
• Horizontal load rating of 2,000 lbs to prevent lateral movement.
• Compact and lightweight design for easy handling and storage.
