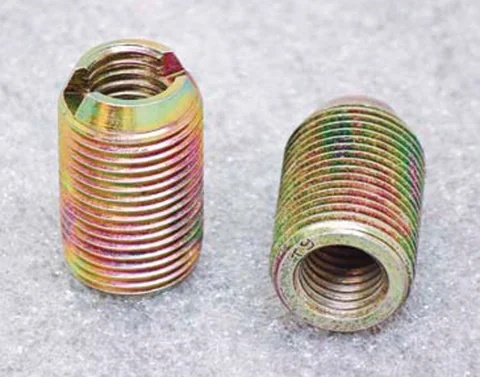

Phoenix USA 35mm x M14-2 x 7/8″ Stud Extender (PNH3514TSX)

Description

The Phoenix USA 35mm x M14-2 x 7/8″ Stud Extender (PNH3514TSX) is an essential component designed to facilitate the secure installation of specific Phoenix USA wheel simulator kits. Engineered to extend your vehicle’s existing wheel studs, this stud extender provides the additional length necessary to accommodate the mounting hardware of the wheel simulator. Manufactured with precision and adhering to stringent quality standards, it ensures a reliable connection between your vehicle’s wheels and the aesthetic enhancement provided by Phoenix USA simulators. Please note that this listing includes only the stud extender; the jam nut, which may be required for certain applications, must be purchased separately.

KEY FEATURES AND BENEFITS:

• Precise Dimensions: Features an overall height of 35mm (approximately 1 3/8 inches), an inner thread specification of M14 x 2.0 pitch, and an outer diameter of 7/8 inch, ensuring proper engagement with both the original wheel stud and the wheel simulator mounting hardware.
• Enhanced Compatibility: Specifically designed as a replacement part for several popular Phoenix USA wheel simulator sets, including GD816, ND1912, ND64, and NFQ17, guaranteeing compatibility and a seamless installation process.
• Required Extension: Provides the essential extra length needed when installing wheel simulators, ensuring sufficient thread engagement for the lug nuts and contributing to a safe and secure wheel mounting.
• Durable Construction: Constructed from robust metals designed to withstand the stresses associated with wheel mounting and regular vehicle operation, promoting longevity and reliable performance.
• Slotted Top Design: Includes a slotted top to facilitate easier installation or removal, providing a point for a tool to grip if needed.

SPECIFICATIONS:

• Product Name: Phoenix USA Stud Extender
• Part Number: PNH3514TSX
• Overall Height: 35mm (approximately 1 3/8 inches)
• Inner Thread Size: M14 x 2.0 pitch
• Outer Diameter (OD): 7/8 inch
• Compatibility: Replacement part for Phoenix USA simulator kits GD816, ND1912, ND64, NFQ17
• Design Feature: Slotted Top
• Includes: One stud extender (jam nut NOT included)
• Material: Durable metal alloy
• Weight: 0.11 lbs (approximately 49.9 grams)

HOW TO USE:

• Preparation: Ensure the vehicle is safely parked on a level surface with the parking brake engaged. Loosen the lug nuts on the wheel where the simulator is to be installed, but do not remove them completely.
• Wheel Removal: Carefully lift the vehicle using a jack and secure it with jack stands. Fully remove the wheel.
• Original Stud Assessment: Inspect the existing wheel studs to ensure they are clean and free from damage.
• Extender Installation: Thread the M14 x 2.0 inner thread of the PNH3514TSX stud extender onto the original wheel stud. Tighten it securely by hand. If necessary, use a tool to ensure proper seating, but avoid over-tightening unless specified in the simulator kit instructions.
• Jam Nut (If Applicable): If your specific Phoenix USA wheel simulator kit requires a jam nut, thread it onto the newly installed stud extender and tighten it against the original wheel stud to secure the extender in place. Refer to your simulator kit instructions for the correct torque specifications, if provided.
• Simulator Mounting: Carefully position the Phoenix USA wheel simulator over the extended studs, aligning the mounting holes.
• Lug Nut Installation: Install the appropriate lug nuts (usually provided with the wheel simulator kit) onto the 7/8″ outer threaded portion of the stud extenders. Tighten them in a star pattern to the manufacturer’s recommended torque specifications.
• Lowering and Final Tightening: Lower the vehicle and remove the jack stands. Once the vehicle is on the ground, re-tighten the lug nuts in a star pattern to the final specified torque.
• Repeat: Repeat this process for any other wheels where wheel simulators are being installed.

BENEFITS OF USING THE PHOENIX USA 35MM X M14-2 X 7/8″ STUD EXTENDER (PNH3514TSX):

• Ensures Proper Simulator Fitment: Provides the necessary length for the secure attachment of compatible Phoenix USA wheel simulators, preventing loose or improperly mounted accessories.
• Maintains Wheel Security: Offers adequate thread engagement for the lug nuts, contributing to the overall safety and security of the wheel mounting system.
• Facilitates Easy Installation: Designed specifically for compatible Phoenix USA products, simplifying the installation process of your wheel simulators.
• Guarantees Compatibility: Using the correct replacement part ensures seamless integration with your existing Phoenix USA wheel simulator kit, eliminating the risk of using incompatible components.
• Supports the Intended Design: Allows your Phoenix USA wheel simulators to be installed as intended by the manufacturer, preserving the aesthetic and functional benefits of the simulators.

FEATURES:

• Specific Extension Length: Provides a 35mm (approximately 1 3/8 inches) extension suitable for designated Phoenix USA simulator models.
• Thread Compatibility: M14 x 2.0 inner thread matches the specifications of common wheel studs, ensuring a secure connection to the vehicle.
• Standardized Outer Diameter: 7/8 inch outer diameter offers compatibility with simulator mounting hardware and lug nuts.
• Designated Replacement Part: Specifically engineered for use with Phoenix USA wheel simulator kits GD816, ND1912, ND64, and NFQ17.
