Phoenix USA 16″ DOT Simulator Kit Air Max (AML1)

Description

The Phoenix USA 16″ DOT Simulator Kit Air Max (AML1) is specifically engineered to streamline the process of checking and inflating tires on vehicles equipped with dual rear wheels and compatible 16-inch DOT simulator kits featuring 25mm mounting holes. This comprehensive kit provides a practical and efficient solution, eliminating the need to remove wheel simulators to access valve stems, thereby saving time and effort during routine maintenance. Constructed with high-quality materials and designed for ease of installation, the Phoenix USA Air Max kit is an essential addition for owners and operators of trucks, RVs, and vans utilizing these specific wheel and simulator configurations.

KEY FEATURES AND BENEFITS:

• Effortless Inflation: Allows for easy access to both inner and outer tire valve stems without the cumbersome task of removing wheel simulators.
• Specific Compatibility: Precisely designed for use with 16-inch DOT simulator kits that utilize a 25mm mounting hole, ensuring a secure and proper fit.
• Durable Construction: Features braided stainless steel hoses that offer excellent resistance to kinking, cracking, and general wear and tear, ensuring long-lasting performance.

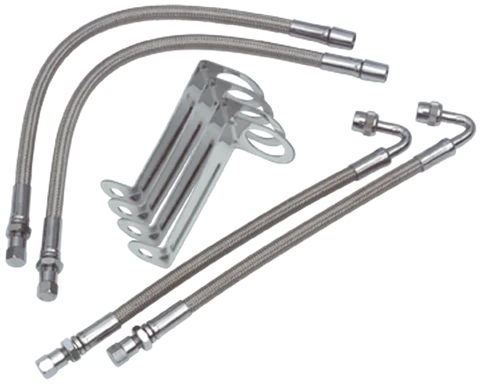

• Complete Kit: Includes four valve stem extensions (two longer straight ones for inner wheels and two shorter ones with a 120-degree bend for outer wheels), along with four robust mounting brackets and necessary installation hardware.
• Secure Mounting: The heavy-duty mounting brackets ensure the extensions are securely fastened, preventing movement and potential damage during vehicle operation.
• Improved Maintenance: Facilitates regular tire pressure checks and adjustments, which are crucial for optimal tire life, fuel efficiency, and overall vehicle safety.

SPECIFICATIONS:

• Product Name: Phoenix USA Inc Air Max Valve Extension Kit
• Compatibility: Designed for 16″ DOT simulator kits with 25mm mounting holes (e.g., GD816, NF12, NF98, NF10, GDG01, GDG92).
• Hose Material: Braided Stainless Steel
• Number of Extensions: 4 (2 straight, 2 with 120-degree bend)
• Mounting Brackets: 4, heavy-duty construction
• Mounting Hole Size: 25mm (for simulator mounting points)
• Intended Wheel Size: 16 inches
• Included: Valve stem extensions, mounting brackets, installation hardware

HOW TO USE:

1. Preparation: Ensure your vehicle is safely parked with the parking brake engaged. Gather all components of the kit and the necessary tools (typically a wrench or socket set).
2. Identify Mounting Points: Locate the 25mm mounting holes on your 16-inch DOT wheel simulators. These are the points where the brackets will be attached.
3. Attach Brackets: Position the mounting brackets over the identified mounting holes. Depending on your simulator type, these may attach under the lug nuts or to the center hub using the provided hardware. Ensure the brackets are securely fastened.
4. Connect Inner Wheel Extensions: Take the two longer, straight braided stainless steel hoses. Thread one end of each hose onto the valve stem of the inner rear tires.
5. Route Inner Wheel Extensions: Carefully route the hoses towards the mounting brackets, ensuring they are not kinked or in a position where they could be damaged by moving parts.
6. Secure Inner Wheel Extensions to Brackets: Attach the other end of the inner wheel hoses to the designated fittings on the mounting brackets. Tighten securely to ensure an airtight connection.
7. Connect Outer Wheel Extensions: Take the two shorter braided stainless steel hoses with the 120-degree bend on one end. Thread the straight end of each hose onto the valve stem of the outer rear tires. The bent end will provide easier access for inflation.
8. Route Outer Wheel Extensions: Route these hoses towards the remaining fittings on the mounting brackets, again ensuring no kinks or potential for damage.
9. Secure Outer Wheel Extensions to Brackets: Attach the bent end of the outer wheel hoses to the remaining fittings on the mounting brackets and tighten securely.
10. Final Check: Once all connections are made, visually inspect all hoses and fittings to ensure they are properly tightened and there are no signs of stress or kinking. Check tire pressure to ensure no air has been lost during installation.

BENEFITS OF USING PHOENIX USA 16″ DOT SIMULATOR KIT AIR MAX (AML1):

• Saves Time and Effort: Eliminates the need to repeatedly remove and reinstall wheel simulators simply to check or inflate tire pressure, making maintenance tasks quicker and less physically demanding.
• Enhances Convenience: Provides easy and direct access to both inner and outer tire valves, allowing for hassle-free pressure checks and inflation at any time.
• Promotes Proper Tire Maintenance: By making tire maintenance more convenient, it encourages regular pressure checks, which is vital for maximizing tire lifespan, optimizing fuel efficiency, and ensuring safe vehicle operation.
• Maintains Wheel Simulator Integrity: Reduces the risk of damage to wheel simulators that can occur during frequent removal and reinstallation.
• Durable and Reliable: The use of braided stainless steel hoses ensures a long-lasting and reliable solution that can withstand the rigors of regular use and various environmental conditions.

FEATURES:

• Braided Stainless Steel Construction: Provides exceptional durability and resistance to kinking and corrosion for extended service life.
• Specifically Designed for 16″ DOT Simulators: Ensures precise fitment and compatibility with designated wheel simulator models featuring 25mm mounting holes.
• Four Extension Hoses Included: Two longer straight hoses for inner tires and two shorter hoses with a 120-degree bend for easy outer tire access.
• Robust Mounting Brackets: Securely attach the extension ends, preventing movement and ensuring reliable access to valve stems.
• Facilitates Easy Tire Pressure Checks: Allows for quick and simple monitoring of both inner and outer tire pressures without removing wheel covers.
• Simplifies Tire Inflation: Enables straightforward inflation of all dual tires using a standard air chuck.
• Complete Installation Hardware Included: Provides all necessary components for a secure and hassle-free setup.
